swill's plate builder
-
Eszett
- Location: Germany
- Main keyboard: Filco Majestouch 2 TKL DE MX blue
- Main mouse: Logitech MX Master 2S
- DT Pro Member: -

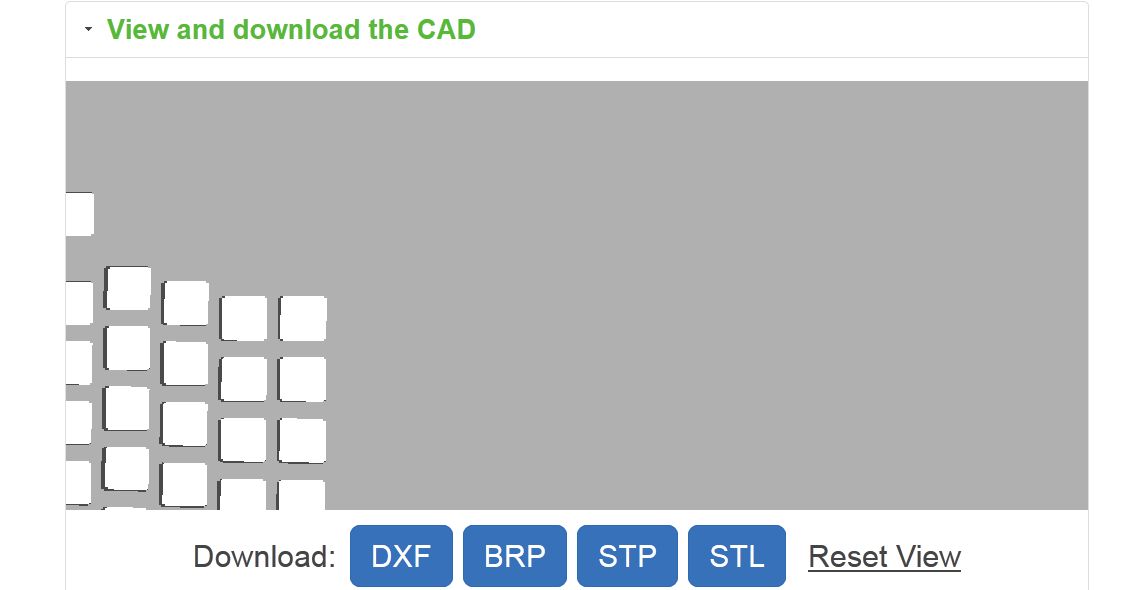

Hi! I have a question regarding swill's plate builder tool. For an ergo layout I rotated the keycaps in keyboard-layout-editor, but swill's plate builder tool did not correctly process this data, the rotation is shifted awkwardly, see screenshot. Is this a bug? What can I do?
- Attachments
-
- plate distorted.jpg (29.16 KiB) Viewed 2201 times
-
salsaverde
- Main keyboard: The Black Rainbow
- Main mouse: G600
- Favorite switch: Gateron Yellow
- DT Pro Member: -
Maybe try opening the CAD file in an editor and see if it can be corrected manually.
-
Eszett
- Location: Germany
- Main keyboard: Filco Majestouch 2 TKL DE MX blue
- Main mouse: Logitech MX Master 2S
- DT Pro Member: -

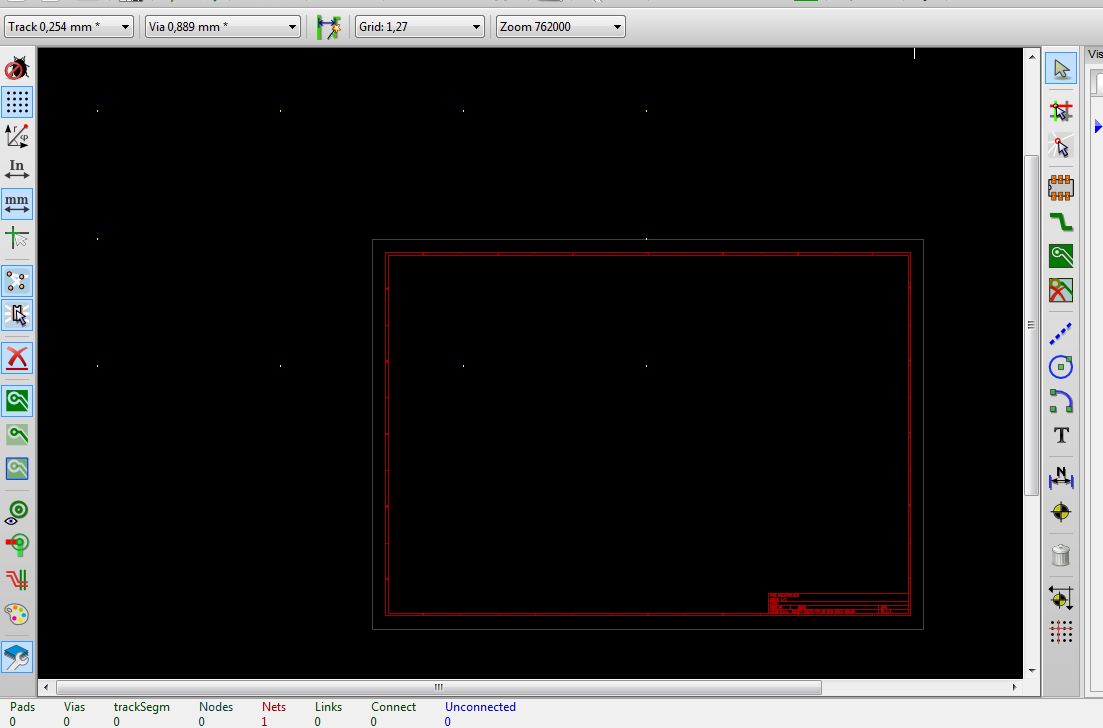

Didn't help. I've downloaded the SVG file from builder.swillkb.com, converted the SVG file to *.KiCAD_PCB format, and opened it in KiCAD. There, I mainly see black void. See screenshot. The original layout in keyboard-layout-editor.com is stable, here is the link to the original layout: http://www.keyboard-layout-editor.com/# ... 769c9f72d1
- Attachments
-
- off.jpg (49.32 KiB) Viewed 2136 times
-
Eszett
- Location: Germany
- Main keyboard: Filco Majestouch 2 TKL DE MX blue
- Main mouse: Logitech MX Master 2S
- DT Pro Member: -
@Charger Thanks for affirmation. I need to rotate manually in an appropriate CAD application then. I checked out QCAD for this purpose, but am not quite satisfied with it's useability ...
