help with easiest kicad project

[matt3o]

I have to reproduce the following PCB. It's incredibly easy, I could probably put my head on it but it would take me problably the whole day, while I'm sure it's a 10 minutes job.

Giving all the measurements could anyone help me with that? (yeah, okay, paid)

Thanks

[bpiphany]

I could do it. Any particular reason you need it in KiCAD? It's possible to import images to KiCAD which will then be transformed into gerber if that is what you need. That should be very quick if you can take a scan of the copper traces. If you need something with a schematic and real traces that should be pretty quick as well.

[matt3o]

thanks for your reply. yeah, it doesn't need to be kicad actually. All I need is a file (I guess gerber) I can send to a PCB printing service.

I should be able to scan the PCB, let me try

[matt3o]

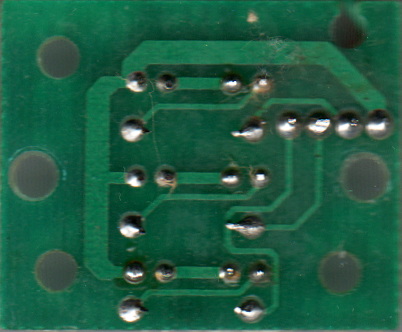

Here it is. 34x28mm


[bpiphany]

Something like this, for a start...


[matt3o]

awesome! more details sent via PM!
