bump

CAD 350 .ROFL.....

From the picture it seems the red light is ON on the promicro. If everything was wired up and flashed correctly you should only see a continuous green light. Check if the cables are shorting each other ? Check if the solder is constrained to the correct pinouts...

So this basically means I could use this as a replacement for Xwhatsit. Correct?

What key is `¬ ? And why would I need that ?

Here's another example for an IBM XT

remapblock

BACKSLASH EUROPE_2
BACK_QUOTE BACKSLASH
PAD_PLUS PAD_ENTER
SCROLL_LOCK DELETE
LCTRL CAPS_LOCK
CAPS_LOCK LALT
LALT RCTRL

endblock


and that produces this layout:

As promised, here's the remapping entries I used:

remapblock

BACKSLASH EUROPE_2
BACK_QUOTE BACKSLASH
PAD_PLUS PAD_ENTER
SCROLL_LOCK DELETE
LCTRL CAPS_LOCK
CAPS_LOCK LALT
LALT RCTRL

endblock

I wish I had found an F107 for 12 quids!

Having looked around for a few months I got lucky and recently acquired an IBM Model F XT for GBP 12.5. In fact I am typing on it right now :wink:

Here's the thing in all its glory, when it arrived...un-restored

One of the first things I did was to open it up. The label has a ...

https://m.youtube.com/watch?v=7l7iU3wvT9o

A guy live streamed his walk through of the place...

Finally I managed to fix it! The culprit was the clock and the data cables kept shorting. Somehow this seems to happen only when the case was closed. Used some electrical insulation tape to fix it. A full restoration post will follow...

The place apparently has piles of model Ms and Fs. Somebody get to Dallas and get a bargain on those boards ....

Just saw this on Facebook...

"CALLING ALL SERIOUS COLLECTORS: Come to Computer Reset during normal business hours, Monday-Friday, 9525 Skillman St, Dallas, Texas 75243. *DO NOT CALL*, just go! This is a 38,000 sqft facility full of vintage computing hardware. The old man who owns it has fallen ill ...

The converter definitely works - I’ve been using it on several other keyboards. The PCB is well grounded.

I recently restored an IBM XT.

It worked fine for a 2/3 days, but now the keyboard is inputing characters on its own and completely unresponsive.

I ran HID listen and got the following.

Help!

r80 -00 r00 +00 r00 r80 -00 r80 r00 +00
r80 -00 r00 +00 r00 r80 -00
r80 r00 +00
r80 -00 r00 +00
r00 r80 ...

PM sent !

I am looking for exactly one Model F flipper. One of my Model F flipper got slightly chipped, it works perfectly but I'd rather replace it.

Does anyone have some spares lying around? I'd prefer if you are located in Germany (or EU) as shipping would work out reasonably cheap.

Great job. Where did you get the replacement keycaps ?

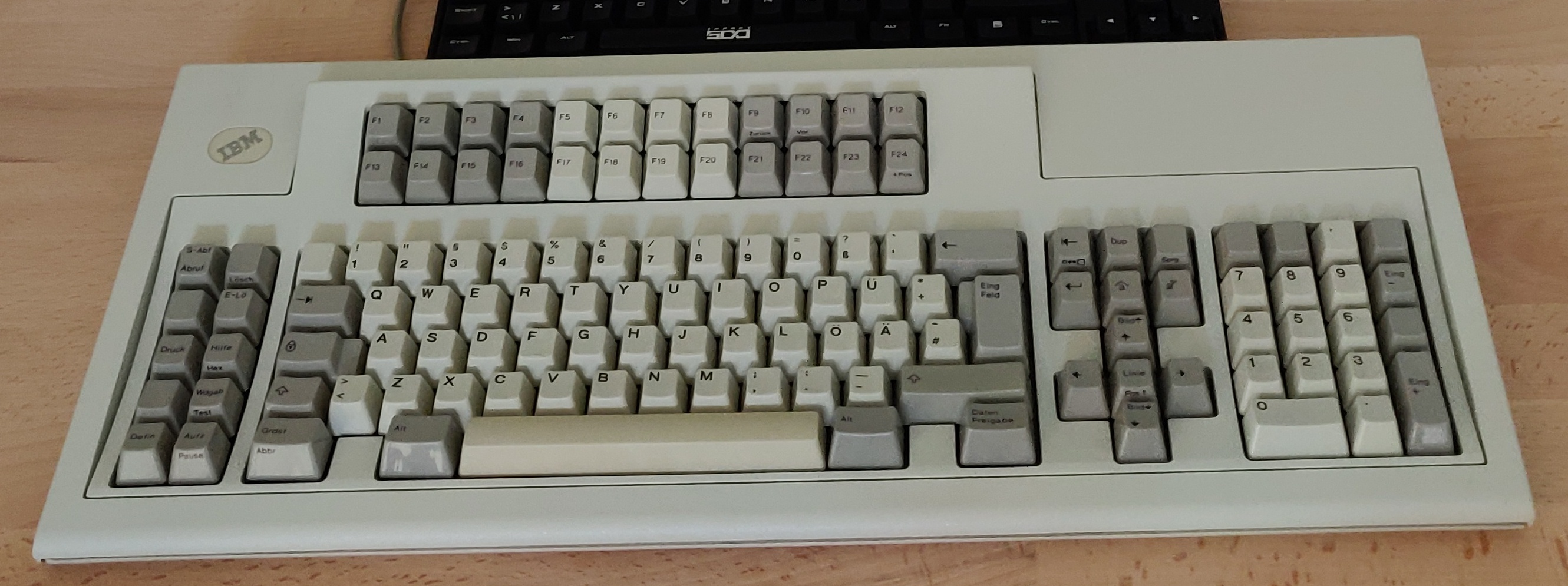

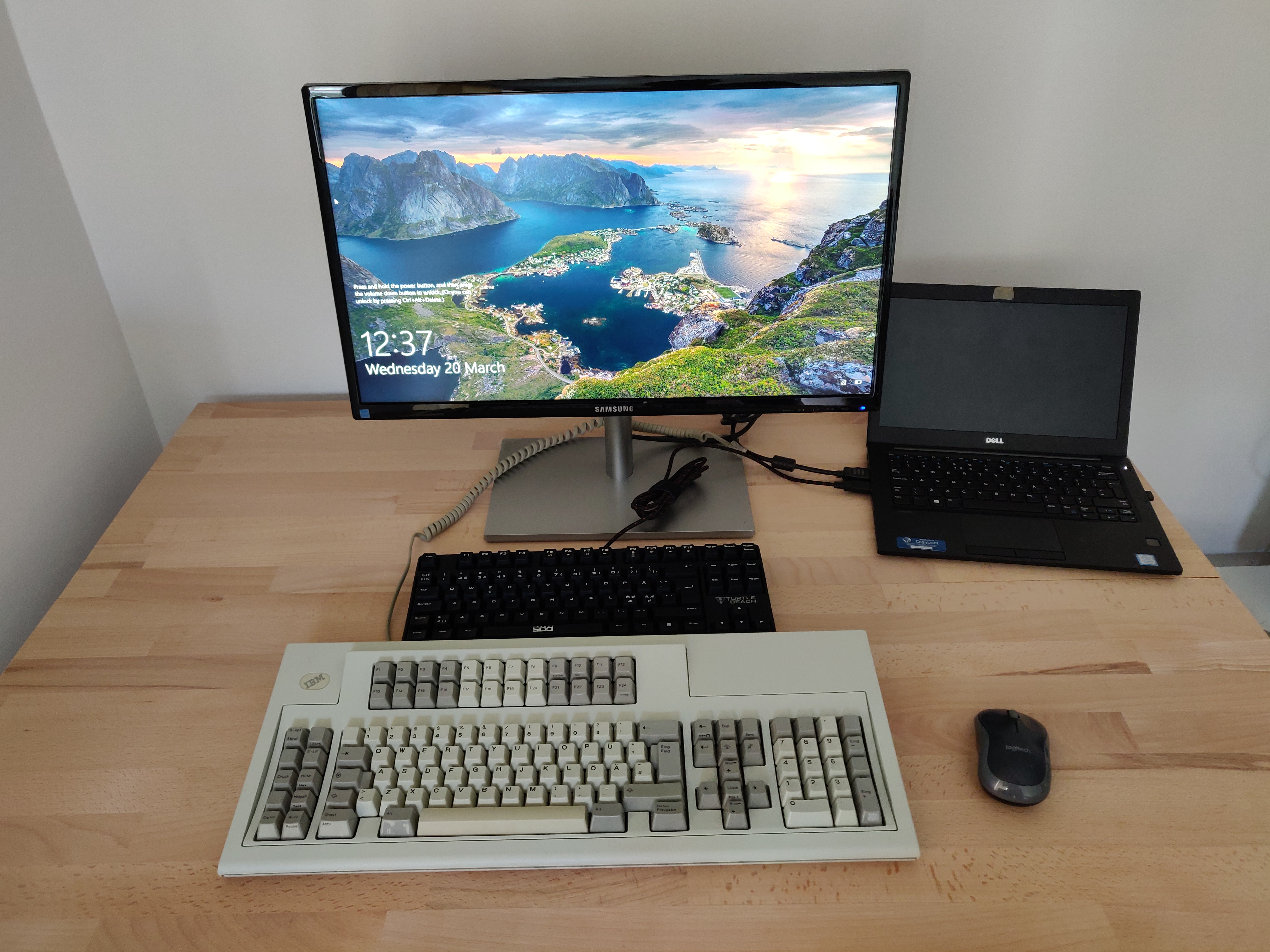

Here are two pics that I have with me right now. I swapped the Z and Y, but I want to replace the entire keyset to UK ISO or US ANSI

I live in Germany and I have a few M122 (ISO QWERTZ) in pristine condition. I want to trade at least one of these for a UK QWERTY ISO or US ANSI. Its probably easier to trade the keycaps in stead of the whole keyboard. Let me know if someone would like to trade?

This was on Allegro for like 10 euros until it was taken off a few days ago.

https://allegro.pl/oferta/klawiatura-di ... 7945785181

I had exactly the same problem with my German ISO layout m122. I used the following to fix it

remapblock
EUROPE_1 BACKSLASH
endblock
