The TrackPoint Topic

Posted: 15 Jan 2015, 23:15
by pkamb
A thread for discussion/appreciation of everyone's favorite ThinkPad pointing stick nub.

http://en.wikipedia.org/wiki/Pointing_stick


XKCD ALT: "I know a lot of people hate these, but I prefer them to touchpads."

Posted: 16 Jan 2015, 09:26
by CeeSA
I am not shure wether this fits the topic but
a "keyboard" life w/o trackpoints is unthinkable for me.

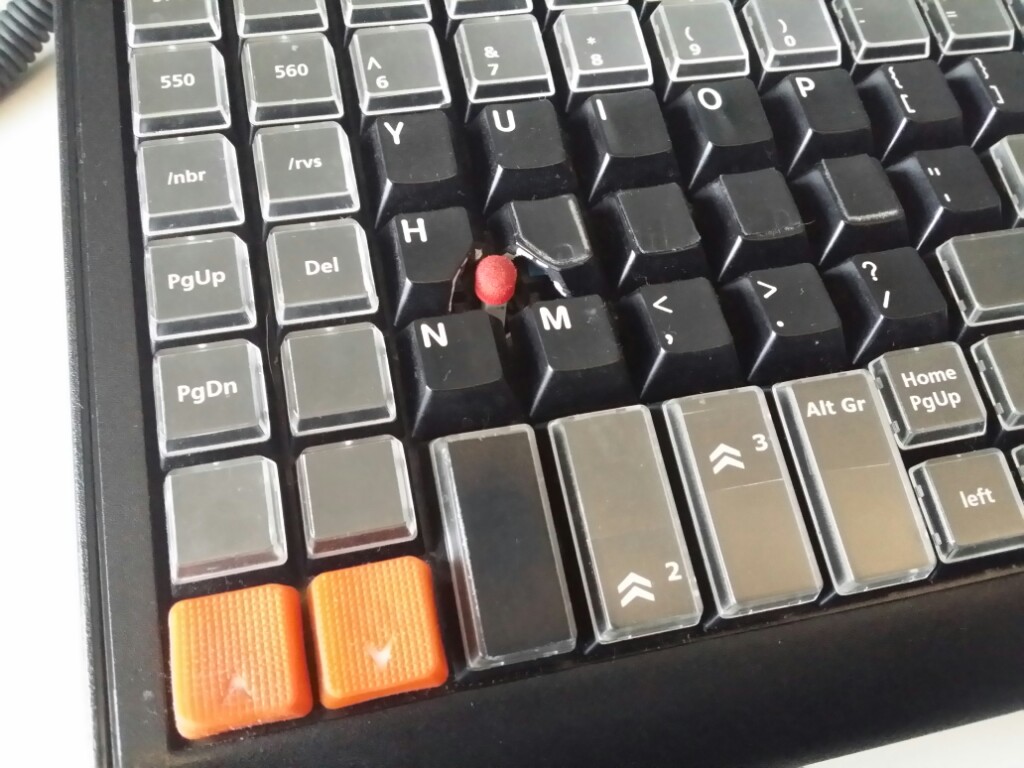

Trackpoint half.jpg
Trackpoint half.jpg (155.07 KiB) Viewed 6349 times

Posted: 16 Jan 2015, 13:17
by Halvar
Good topic! Where can I best cannibalize (or buy) one, and how to get it to work?

Posted: 16 Jan 2015, 15:02
by bhtooefr
The easiest one to cannibalize is the TrackPoint IV Keyboard, as (I think it's that one, anyway) it uses a completely physically separate controller for its TrackPoint. PS/2 attached, so if you've got a PS/2 mouse port, you can use it.

There's also this: http://sprintek.com/products/sk8702.aspx

And, I wonder what protocol they're using for the (USB-attached, with full drivers) TrackPoint on the previous ThinkPad USB keyboard. The current one is NOT fully configurable...

Posted: 16 Jan 2015, 15:08
by Halvar
Great info bhtooefr! I'll start to look out for that.

Posted: 16 Jan 2015, 19:05
by pkamb
Personally I use the ThinkPad USB Keyboard with TrackPoint (model number 55Y9003 or SK-8855, circa 2009-2013).

Design:
http://blog.lenovo.com/en/blog/the-keyb ... ped-design

The TrackPoint and 3 buttons are *great*. I also love the Big Delete Key and Home/End PgUp/PgDn cluster, which I use all the time. Great programming keyboard. Perhaps anathema to mechanical keyboard types.


Photo by Masashi Nakano

I have also purchased but have yet to switch to the Japanese version of the same, which has a tiny spacebar to make room for many additional hotkey buttons. I'm not quite sure how I'll use them, yet.


Lenovo has unfortunately retired my keyboard in favor of a chiclet style keyboard, to match their newer ThinkPad laptops.

I will likely try this eventually, but am not looking forward to "normal" Delete cluster compared to the old version. TrackPoint still looks good though.

A good review of the new keyboard and the old:
http://www.jessebandersen.com/2013/12/l ... oards.html


And more great photos:
http://benjaminhorn.io/post/thinkpad-co ... rackpoint/



Posted: 18 Jan 2015, 17:07
by bhtooefr
It's worth noting that the keyboard you use now has the fully tunable TrackPoint drivers that ThinkPads use, whereas the new keyboard has much simpler drivers that, as far as I know, don't offer adjustable sensitivity.

Posted: 18 Jan 2015, 18:50
by Findecanor
CeeSA wrote: I am not shure wether this fits the topic but
a "keyboard" life w/o trackpoints is unthinkable for me.
Trackpoint half.jpg
The orange keys are mouse buttons?

Posted: 18 Jan 2015, 19:05
by davkol
derp

Posted: 28 Jan 2015, 21:40
by jlwinkler
Hey,
I would like to build a trackpoint into the Microsoft Slupt ergonomic keaboard.
Does anyone have a recommendation on what I need and where to get all that stuff?
I do not want to wire the trackpoint up with the electronics of the keyboard and I will be fine with a USB-cable solution in the end because I will not move the keyboard in my table too much in the end.
Thanks a lot in advance for every piece of input!
Cheers, JL

Posted: 28 Jan 2015, 21:45
by CeeSA
Findecanor wrote: The orange keys are mouse buttons?
yes, you are right.
