Key panel with MX Black "LED platform" switches

[Daniel Beardsmore]

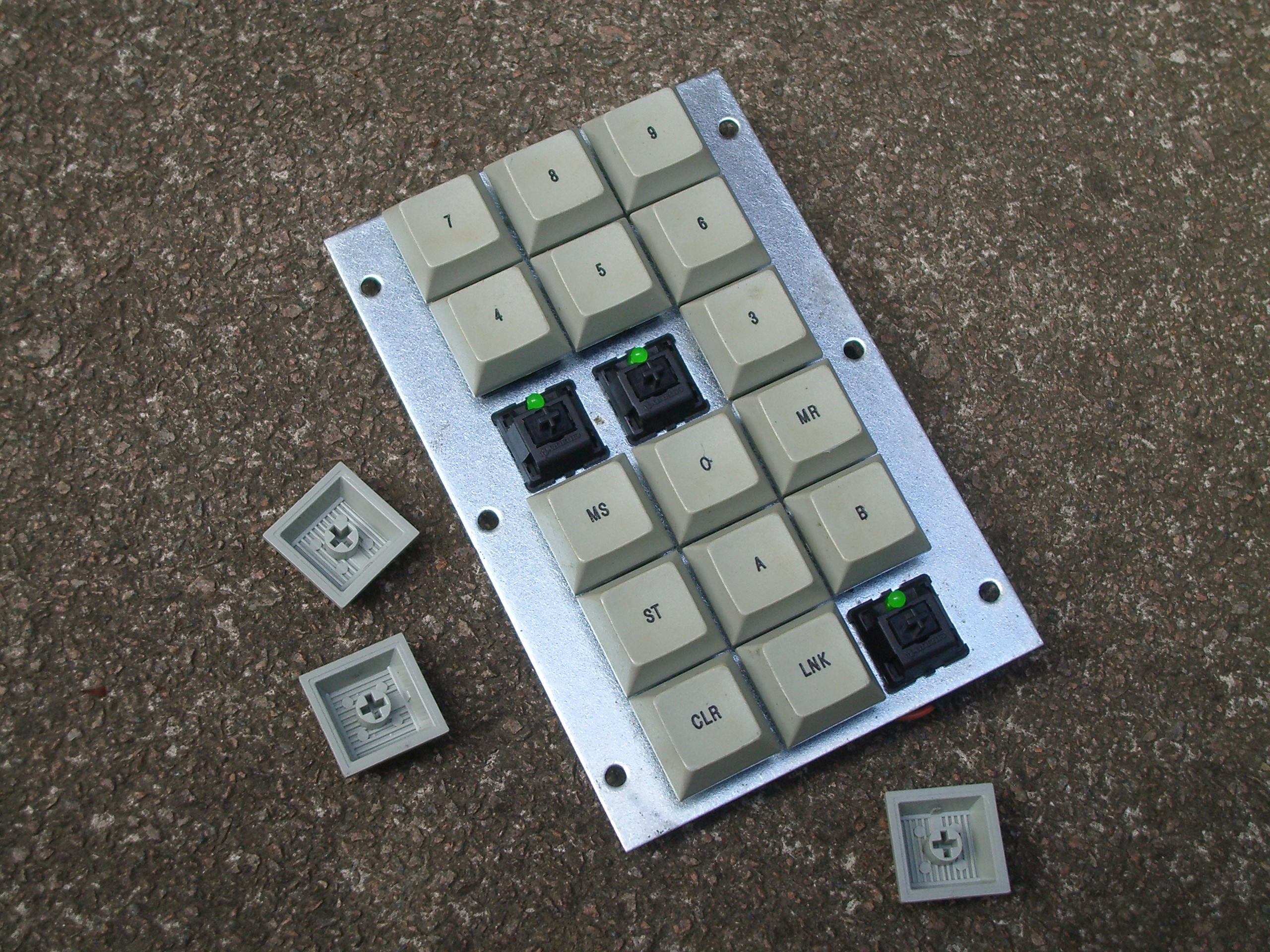

I have no idea what this is. It's a sheet metal keypad with Cherry MX Black switches, of the "LED platform" type that nobody can explain.

Keypad 01 top.jpg (945.61 KiB) Viewed 1766 times

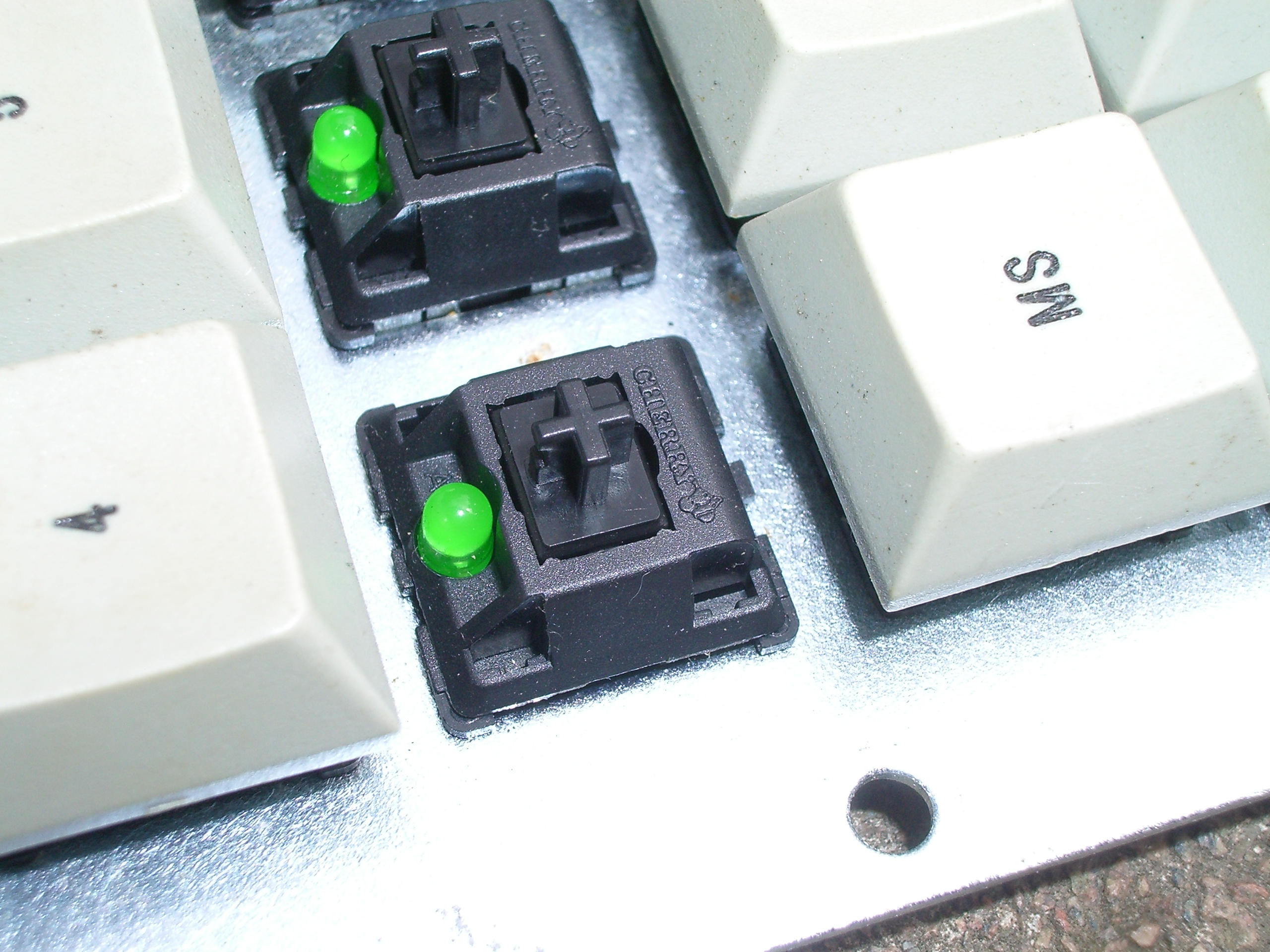

All 18 switches have an LED fitted, yet none of them are even wired up, so someone must have bought the wrong switch!

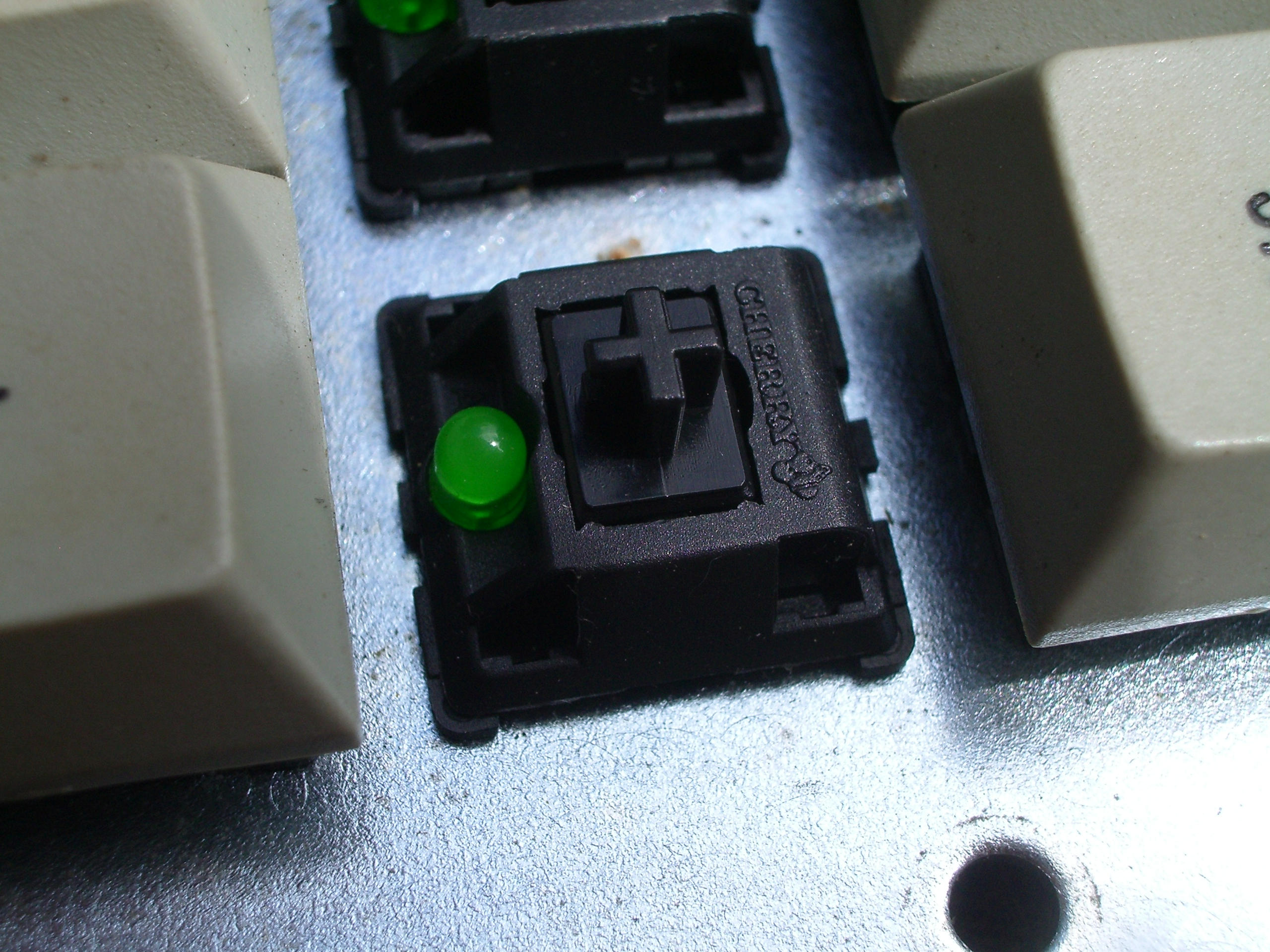

Keypad 02 switch.jpg (671.8 KiB) Viewed 1766 times

Keypad 03 switch ID.jpg (540.02 KiB) Viewed 1766 times

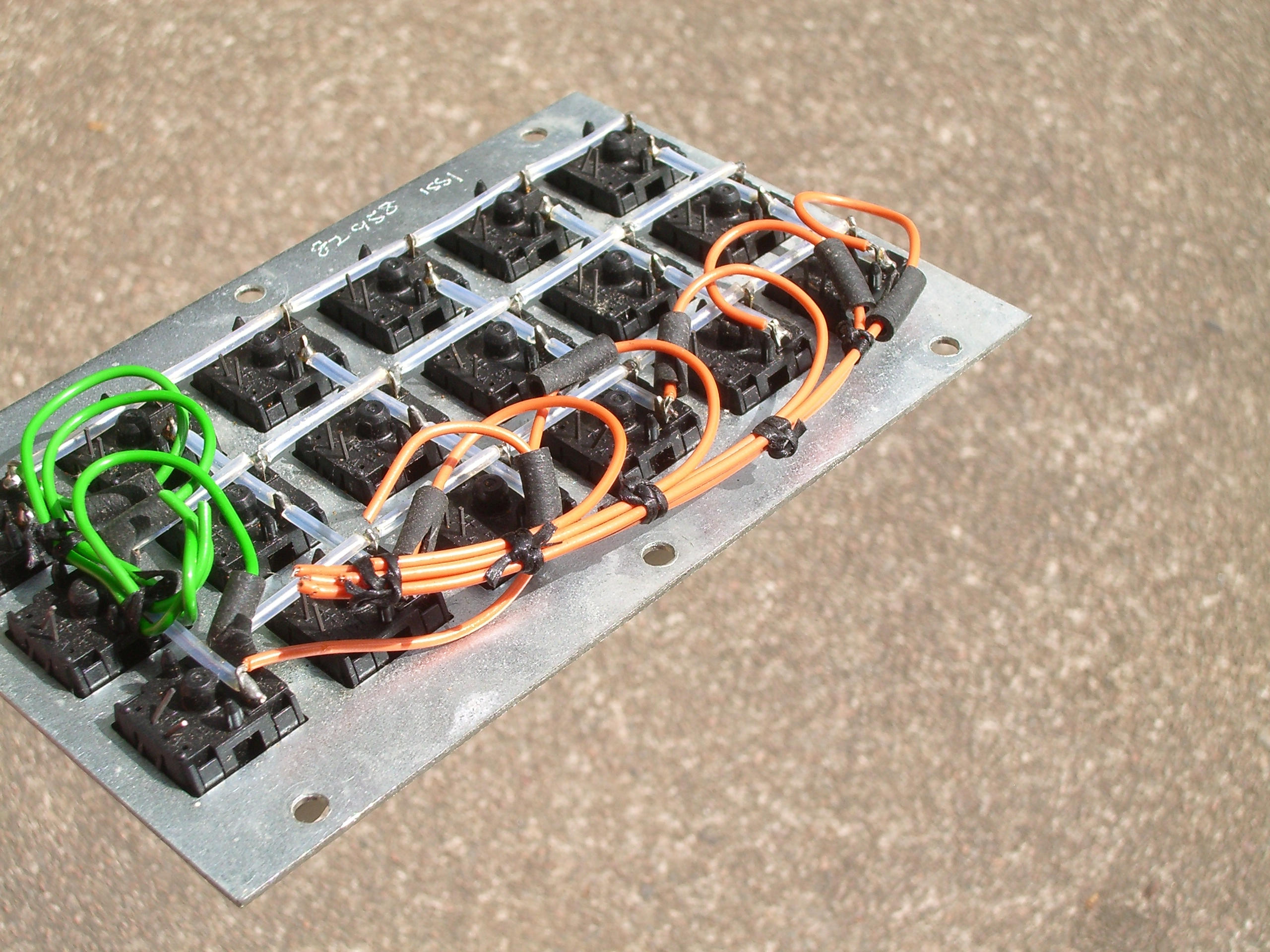

The unit appears to be wired as a pure matrix, without diodes; each row and column has one wire, which have all been cut:

Keypad 04 rear.jpg (703.37 KiB) Viewed 1766 times

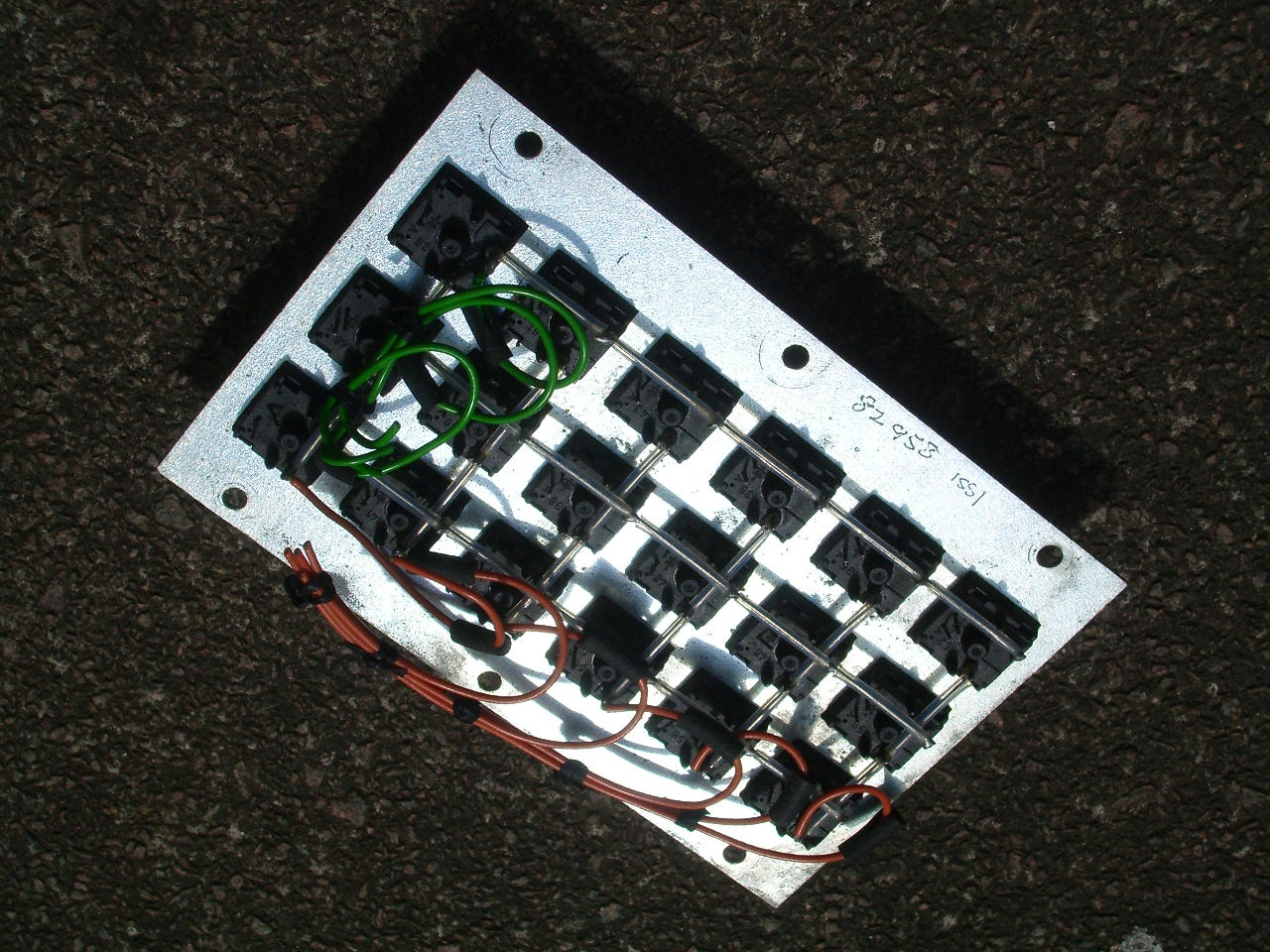

Keypad 05 wiring.jpg (692.9 KiB) Viewed 1766 times

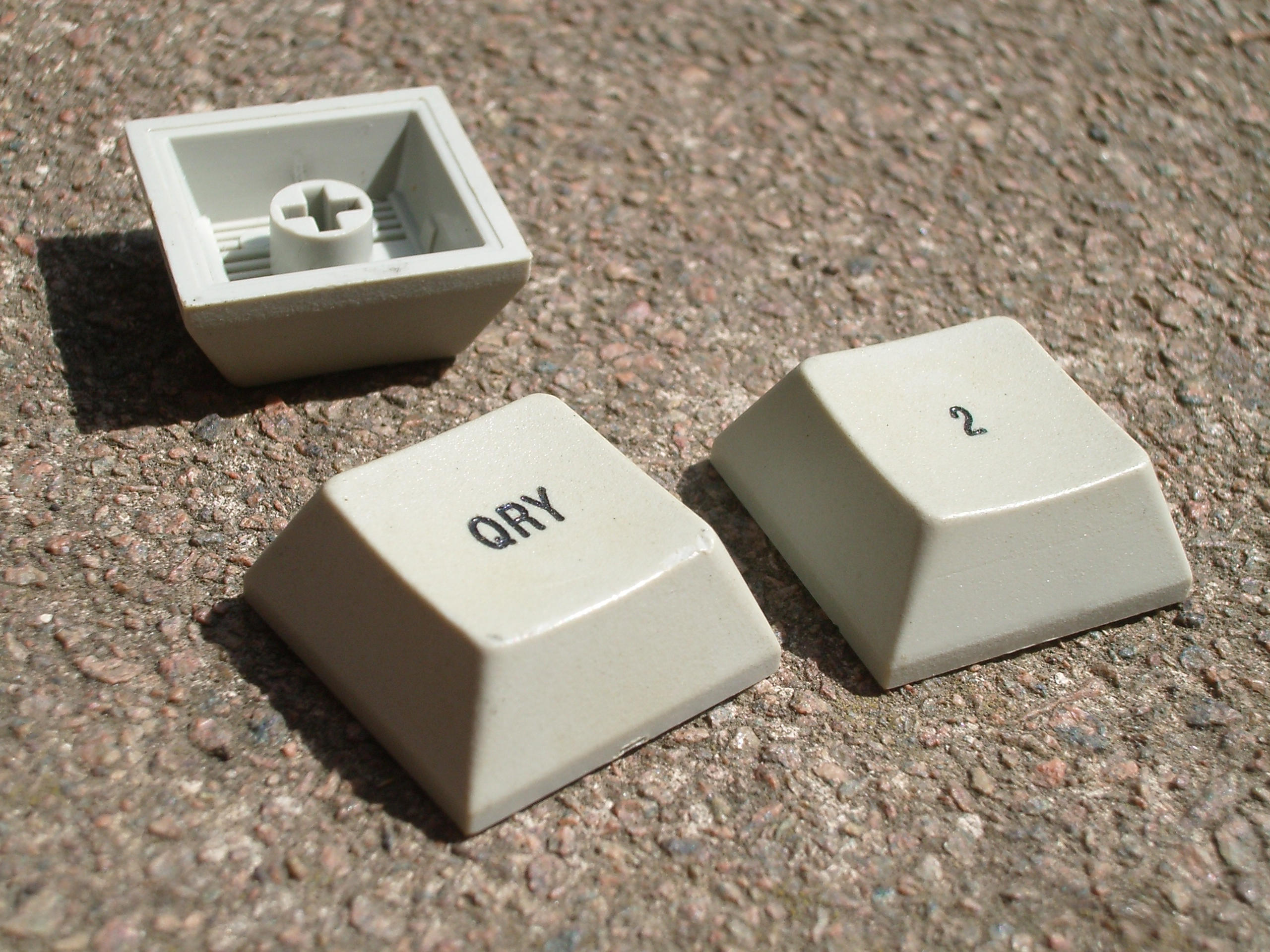

The keycaps are very QWERkeys like. I'm not 100% sure on how they're marked, but I'm guessing engraving plus paint:

Keypad 06 keycaps.jpg (702.17 KiB) Viewed 1766 times

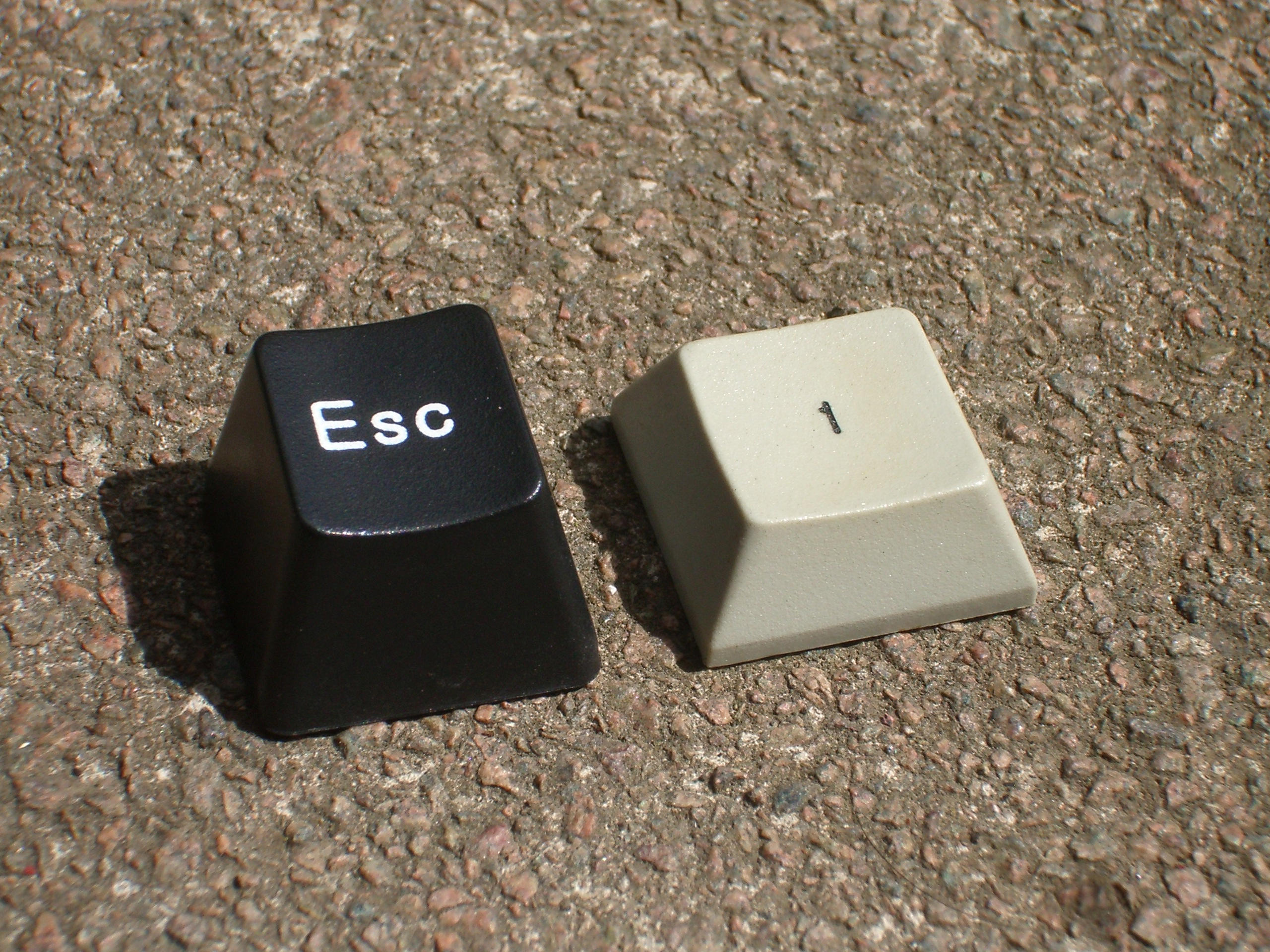

The keycaps are quite a bit like DSA profile; a KPT keycap has been placed for comparison:

Keypad 07 keycap comparison.jpg (963.77 KiB) Viewed 1766 times

[Nuum]

Interesting. Very nice and "professional" handwiring. Nice thick keycaps, too. Is there a 1991 engraved into the plate on the fourth picture?

[Daniel Beardsmore]

The writing — it didn't seem significant to me:

Keypad 08 writing.jpg (305.6 KiB) Viewed 1739 times

I have no use for the keycaps. I might pull out a switch for photography — not decided yet what I'm going to do with it.

[pyrelink]

Looks like a very well done prototype of something or other. Some type of keypad system of some kind. Really love the wiring job they did.

[Nuum]

I have no use for the keycaps. I might pull out a switch for photography — not decided yet what I'm going to do with it.

I would love to take the keycaps off of you. PM me, if you want to sell them.

[Daniel Beardsmore]

I have no use for the keycaps. I might pull out a switch for photography — not decided yet what I'm going to do with it.

I would love to take the keycaps off of you. PM me, if you want to sell them.

If you still want them, drop me your address and I'll pop them in the post.
