IBM 3278 keyboard restored

[ag36]

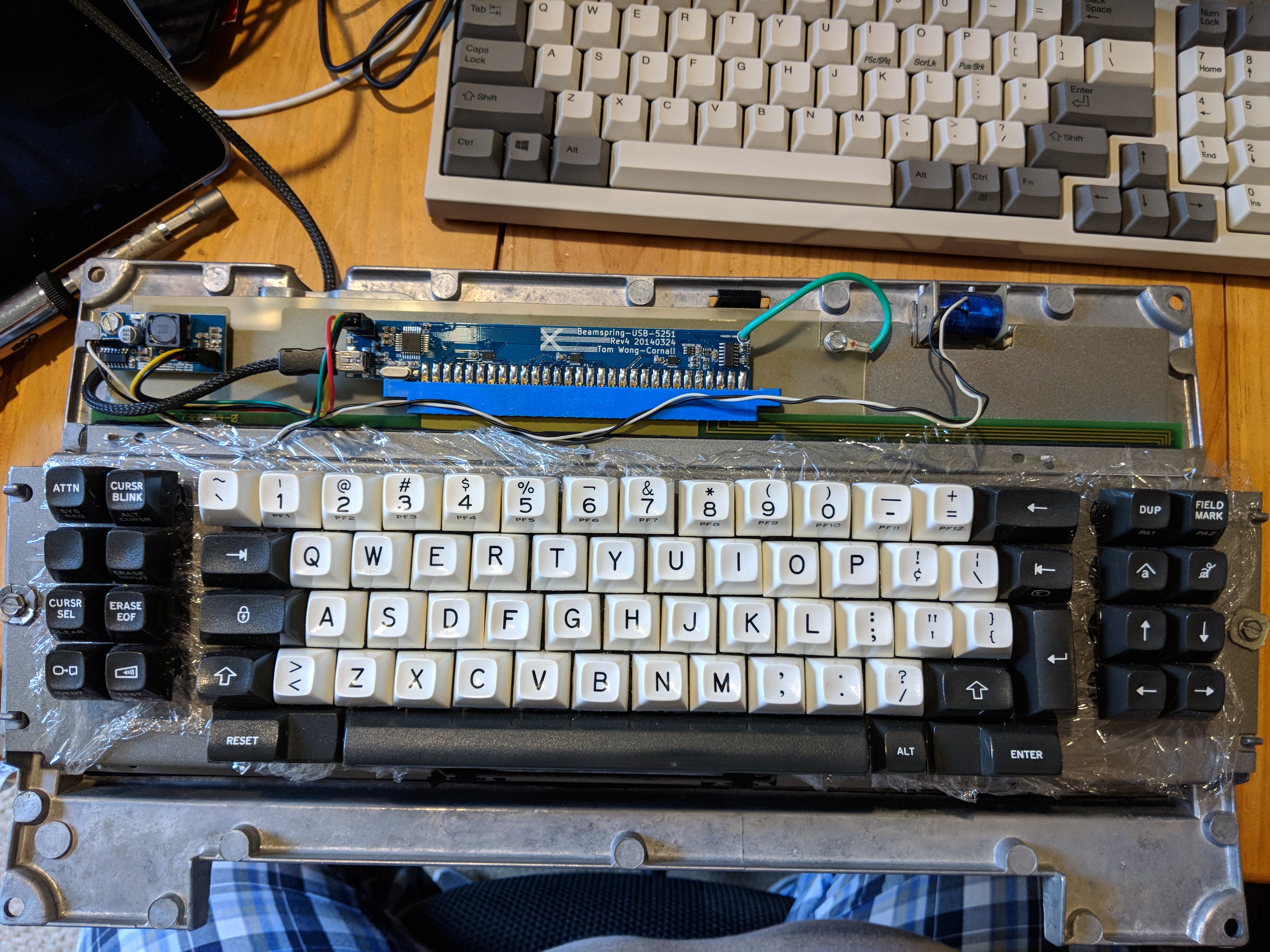

I've restored my 3278 and finished firmware setup, everything is working perfectly with the solenoid as well

[darkcruix]

Wow, this is stunning. Great choice for color !!!!
How did you configure the key right to P? Did you use a "modern" configuration or an overlay with Macros to mimic the traditional key?

[Muirium]

That colour is so damn nice! Really makes the pearly alphas pop. And it speaks more to the underlying metal this whole board is made of than beige can ever claim. Sterling work.

Kinda makes me look down at my beige Kishsaver here and wonder…

@darkcruix: The way I laid out my 3278 is as similar to the Kishsaver as possible, so those keys right of P are the usual [ and ], with HHKB arrow functions laid on top of them in the function layer. Yes, I know the 3278 has arrows too, but force of habit!

[ag36]

Thanks! I've set them to [ ] \ and {} is set as enter key so it works similarly as a split ISO enter, <> is set to split shift.

[depletedvespene]

MAGNIFICENT. Fantastic work.

This is the kind of beamspring that deserves a high selling price on eBay.

And now the questions: how did you handle the modifiers? What have you mapped both leftmost and rightmost clusters to?

[ag36]

On the left, ESC(FN1 solenoid off), NUM DEL, INS, DEL, HOME, END, PGUP, PGDN. On the right, navi row on the top(FN1 media, volume, mute, play/pause) arrow is arrow.

CAPSLOCK is L CTRL, split shift, reset is capslock. Backspace is backspace the one underneath is \| retern is enter ALT is L ALT and ENTER is FN1

It seems the keyboard can have split space with a extra fly plate if someone can make a split spacebar for it and mod the stabilizer.

[sealclubber]

Good lord that's a beauty. Amazing work!

[depletedvespene]

On the left, ESC(FN1 solenoid off), NUM DEL, INS, DEL, HOME, END, PGUP, PGDN. On the right, navi row on the top(FN1 media, volume, mute, play/pause) arrow is arrow.

Seems to me that you could very well swap the two blank keycaps on the left column with the (icon) Insert and Delete keycaps on the right column, then.

[XMIT]

That's an interesting choice of contamination shield material. I'll be interested to see how it holds up over the long term (especially if exposed to UV) and how it affects typing feel.

[ag36]

On the left, ESC(FN1 solenoid off), NUM DEL, INS, DEL, HOME, END, PGUP, PGDN. On the right, navi row on the top(FN1 media, volume, mute, play/pause) arrow is arrow.

Seems to me that you could very well swap the two blank keycaps on the left column with the (icon) Insert and Delete keycaps on the right column, then.

Wanted to keep the keycaps as original layout

That's an interesting choice of contamination shield material. I'll be interested to see how it holds up over the long term (especially if exposed to UV) and how it affects typing feel.

There's nearly no effect to the feel except some noise emitted by the saran wrap but longevity is still unknown at this point.

[rebsky]

That was awesome nice work there!

[ag36]

Thanks!

Been thinking do I dispose the old pcb and cable or not. they take a lot of space and I have no use of them but very high quality.
