Hello everybody,
I recently purchased a NOS Hi-Tek 725 AT without cable, and need some help with the pinout as there are no markings on the pcb.
Thanks!
Hi-Tek 725 2nd Gen AT RJ11 pinout?
-
Noobmaen
- Location: Bonn, Germany
- Main keyboard: FC660M MX Brown, HHKB, IBM6580
- Main mouse: Logitech G502
- Favorite switch: Beamspring, Vintage MX brown, Cap. BS
- DT Pro Member: -
- Attachments
-

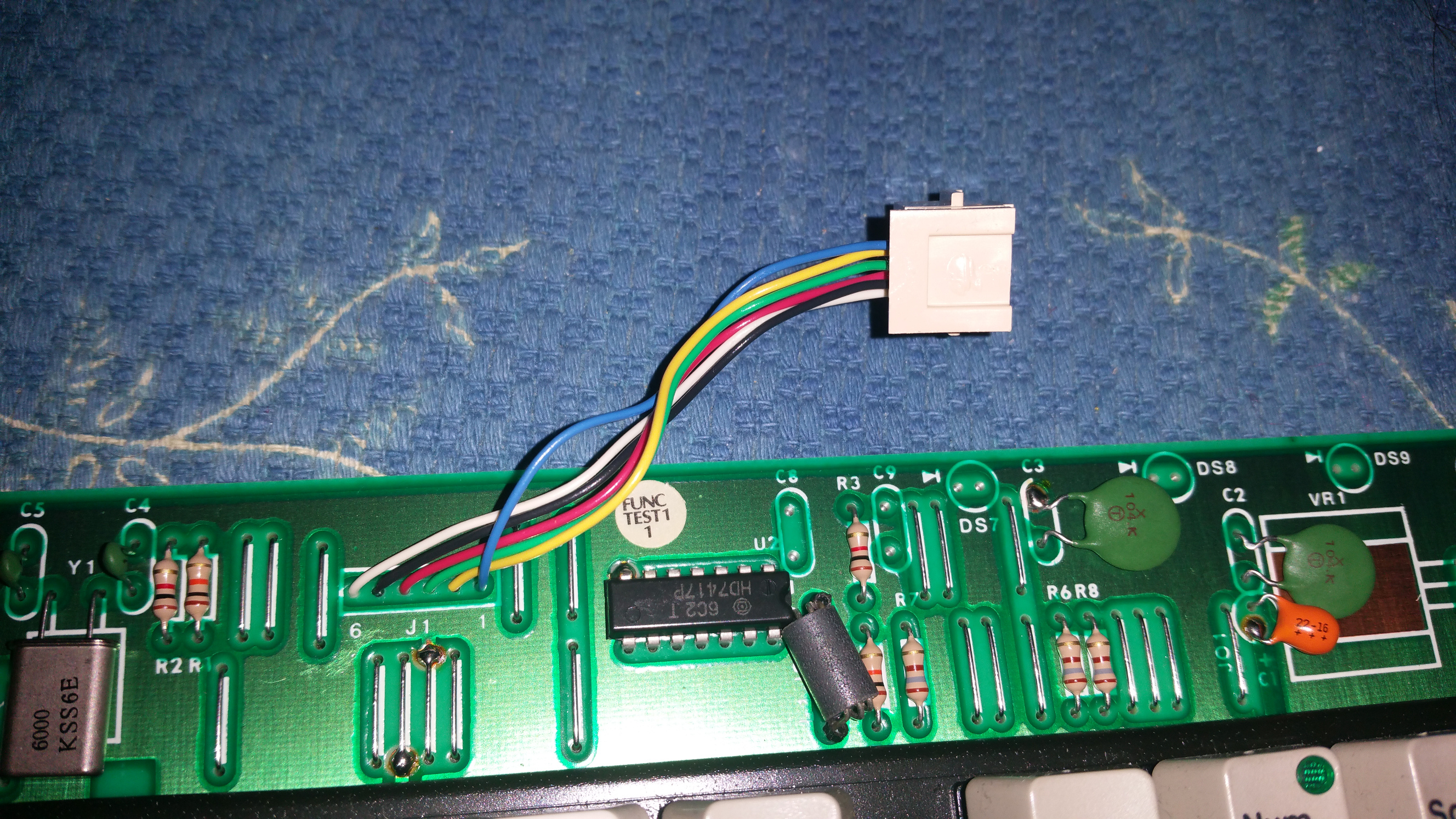

- 20180111_175055.jpg (3.39 MiB) Viewed 806 times
-

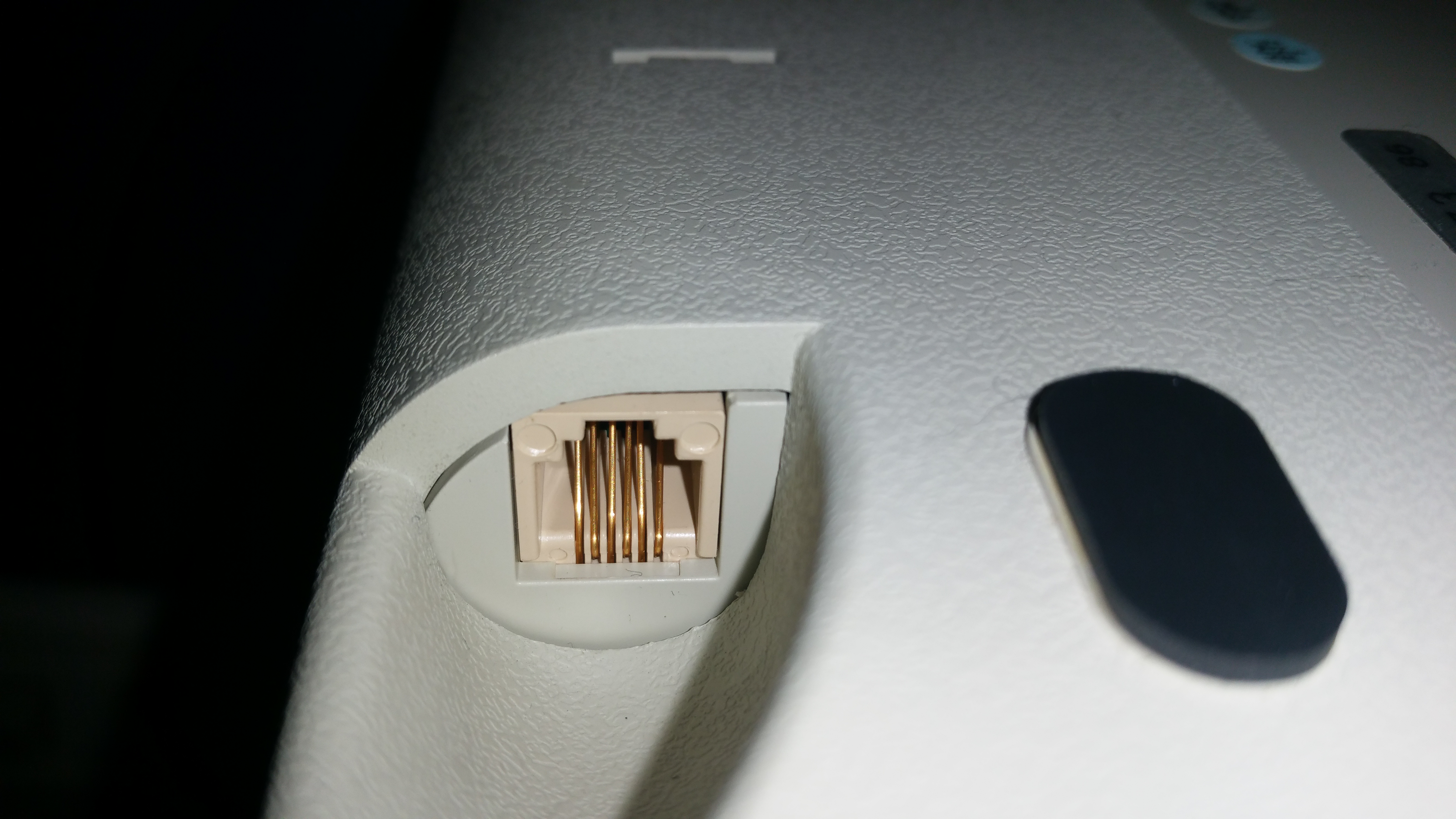

- 20180111_172707_s.jpg (2.22 MiB) Viewed 806 times
-

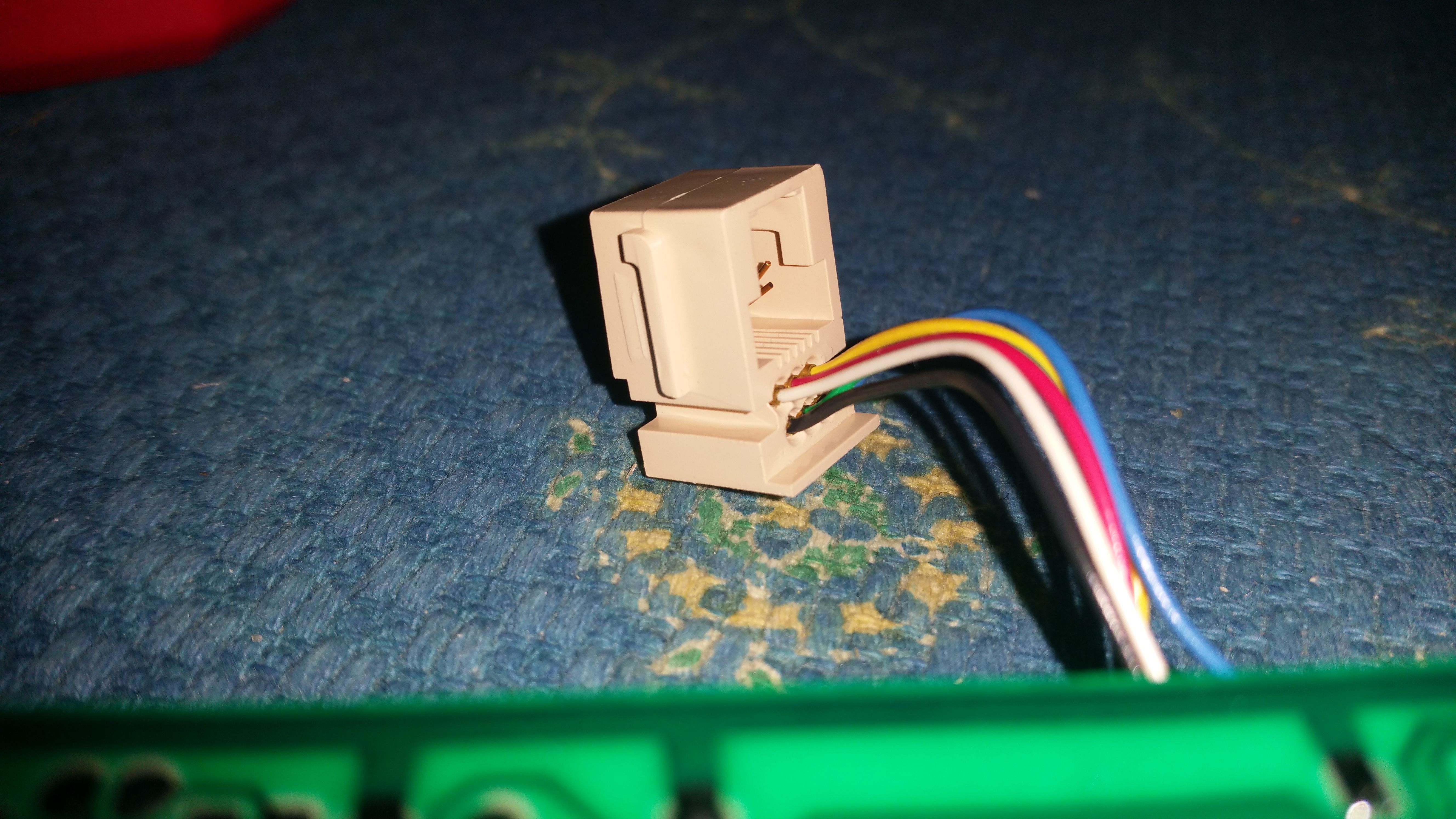

- 20180111_172731.jpg (4.78 MiB) Viewed 806 times
