Building one of my dreamboards

derzemel · 03 Jan 2017, 12:12

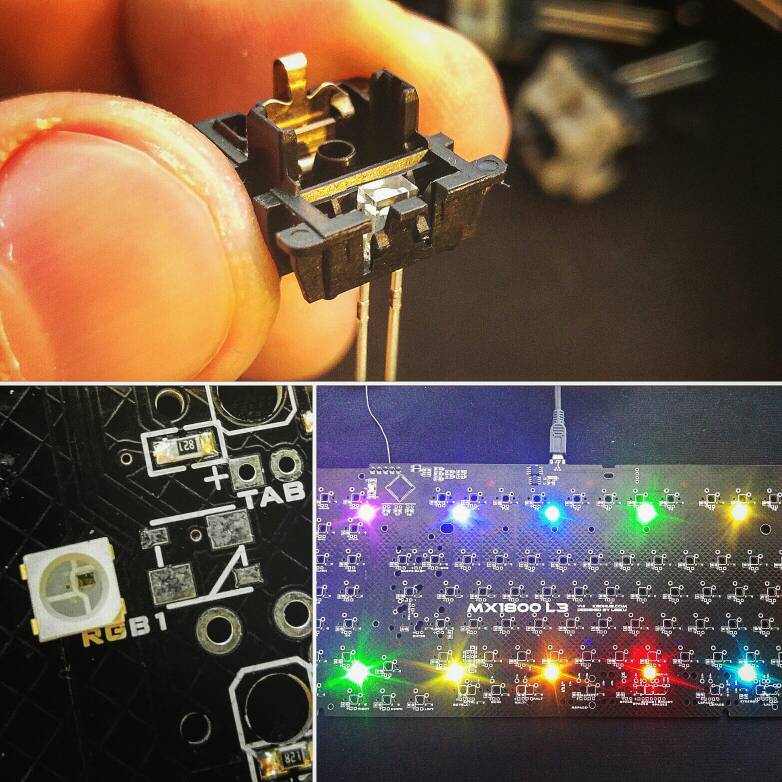

I finally managed to get my hands on a TX-1800 case. I had a Leeku 1800 wich I was saving for almost a year and a Nixdorf keyboard, so here are 2 teasers:

: IMG_20170103_125502_161.jpg (58.96 KiB) Viewed 3730 times

: IMG_20170102_092953_813.jpg (98.08 KiB) Viewed 3730 times

And this is the way my desk looked in the past 4 days:

Also, I knew I was going to use this small vice to cut and bend stab wires sometime. It saved me from a lot of headaches with that wire:

Chyros · 03 Jan 2017, 13:11

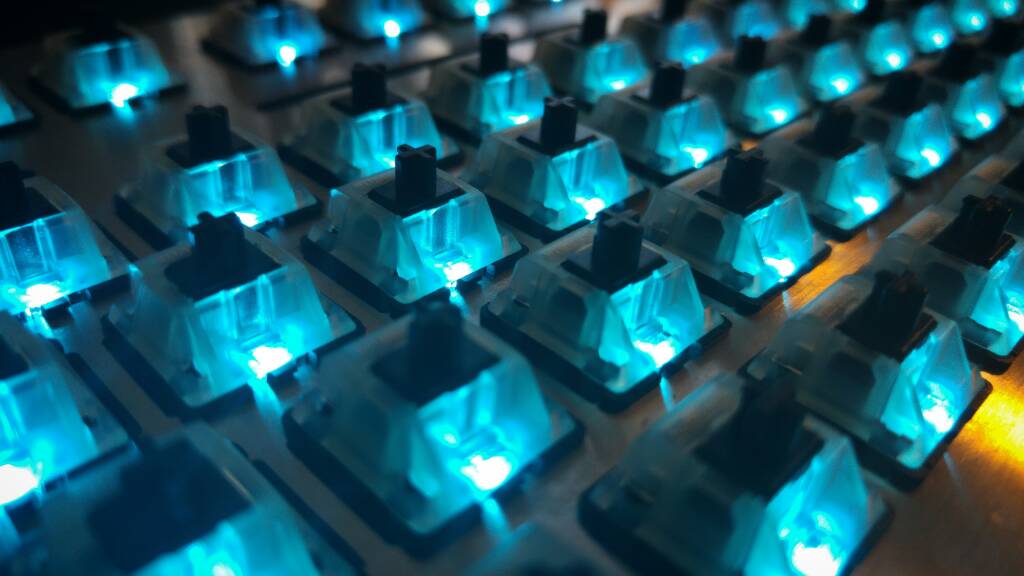

Noice! The lighting looks really cool in the Nixies

.

DanielT · 03 Jan 2017, 13:32

Ha! I see you have an Antex soldering iron too, those are great for the price, I was able to solder even SMD without any issues.
Now waiting to see the complete board

derzemel · 03 Jan 2017, 13:34

DanielT wrote: Ha! I see you have an Antex soldering iron too, those are great for the price, I was able to solder even SMD without any issues.
Now waiting to see the complete board

well, I got the idea to buy one from you

derzemel · 04 Jan 2017, 12:25

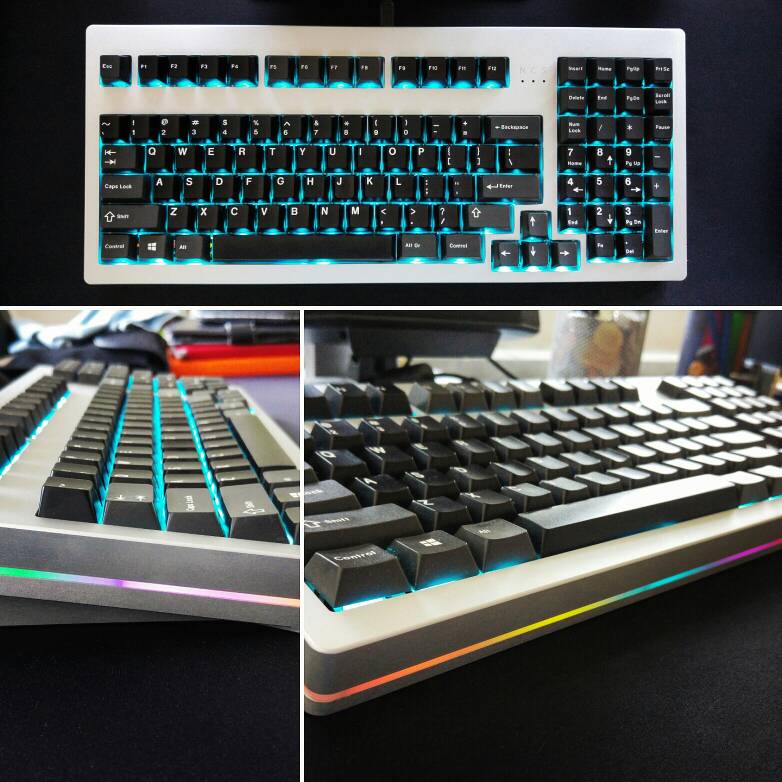

It is done (potato instagram picture):

: IMG_20170104_131719_181.jpg (89.52 KiB) Viewed 3632 times

DanielT · 04 Jan 2017, 12:52

It looks damn fine !!! The caps are a combo of WoB with Dolch Mods ? It looks really good

seebart · 04 Jan 2017, 12:57

Very nice work derzemel!

ramnes · 04 Jan 2017, 13:08

Nice! Did you change the springs?

derzemel · 04 Jan 2017, 13:55

DanielT wrote: It looks damn fine !!! The caps are a combo of WoB with Dolch Mods ? It looks really good

yes, WOB and OG Dolch mods.

I would have used full WOB, but I do not have the 6 keycaps that work on the 1800 profile (that is why you see the 1u FN instead of 0):
R1 - Del, End, PgDn
R2 - numpad Minus (-)
R3 - 1u 1800 numpad Plus (+)
R4 - 1u 1800 numpad 0

I need to find these keycaps

BTW, in the end I used clip-on stabilizers instead of screw ones. I had an old cherry 1000 around that had these clip on stabs made out of a softer plastic than the Nixdorf ones, which made them quieter actually. Also, I avoided the headaches of screws shorting out pads

)

seebart wrote: Very nice work derzemel!

Thank you!

ramnes wrote: Nice! Did you change the springs?

No, original Nixie springs. I like them more than lighter springs and heavier springs are too heavy. Anyway, the plate supports switch-top removal, so I can change them anytime I want.

DanielT · 04 Jan 2017, 14:14

I have to look in my bags with keycaps, I recall I have some WoB 1800 stuff, and considering the fact that I use only 60% you can have them

Just have to dig in the box, I have to do some cleaning anyway

derzemel · 04 Jan 2017, 14:15

Also, my girlfriend took a picture of me while I was working on it (i thought that she was curios what I was doing). I am very proud of this image

derzemel · 04 Jan 2017, 14:16

DanielT wrote: I have to look in my bags with keycaps, I recall I have some WoB 1800 stuff, and considering the fact that I use only 60% you can have them Just have to dig in the box, I have to do some cleaning anyway

I would do very dirty things to you and for you for those keycaps

Spoiler:

DanielT · 04 Jan 2017, 15:10

For these

derzemel · 04 Jan 2017, 15:16

DanielT wrote: For these
Spoiler:

Yay

(see you on PM

)

derzemel · 04 Jan 2017, 19:37

hehehe... it's so nice to be living in a city with other keyboard enthusiasts.

Thank you very much DanielT!!!

DanielT · 04 Jan 2017, 19:51

You're welcome !

A 60% user has no need for numpad caps

Orpheo · 08 Jan 2017, 14:42

Very beautiful keyboard and very nice to see that king of gesture! Great DT community
