What do these DIP switches mean?
-
buzzking00
- Location: USA
- Main keyboard: KEA POWERSTATION PS205
- Main mouse: Looking for one
- Favorite switch: Cherry Blues
- DT Pro Member: -
What settings should I use for a Windows 10 computer?
- Attachments
-

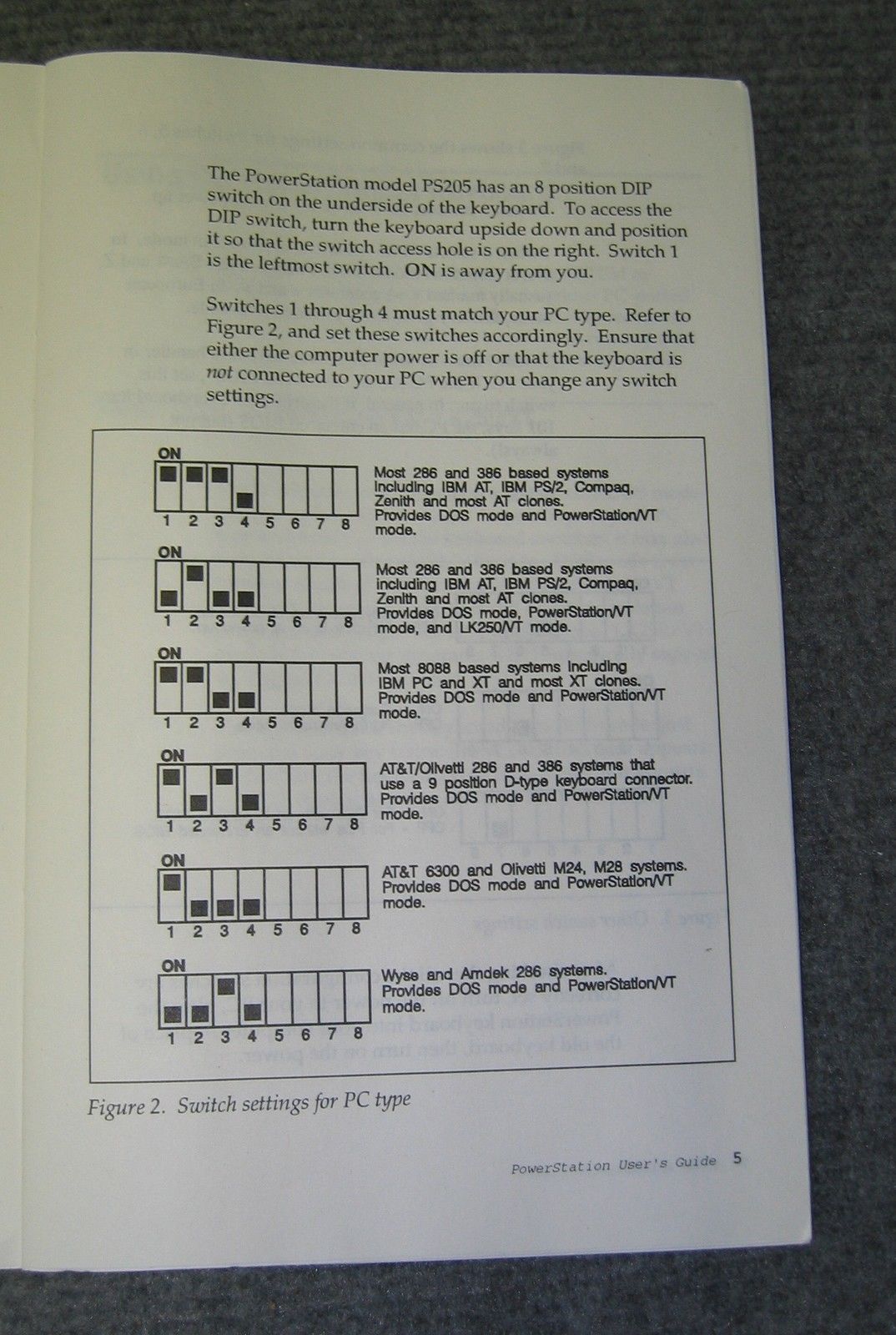

- KEA PowerStation DIP Switches 1-4.jpg (236.4 KiB) Viewed 996 times
-
Chyros
- Location: The Netherlands
- Main keyboard: whatever I'm reviewing next :p
- Main mouse: a cheap Logitech
- Favorite switch: Alps SKCM Blue
- DT Pro Member: -
Use setting 1 or 2 to set it to PS/2. If you have a PS/2 port, you can use it natively that way, although I suppose you'll need an adapter. If you only have USB, you'll need an active converter.
-
keycap
- Location: United States
- Main keyboard: '88 Model M, DFK777 SKCM Blue
- Main mouse: A paperclip and a string
- Favorite switch: Alps SKCM, IBM buckling spring
- DT Pro Member: -
PS/2 = AT protocol (80286, 80386, 80486 etc.) so yeah go with option 1 or 2. #2 seems to be the same as #1 with the added exception of LK250/VT mode but that should not matter to you at all
