ADM11 terminal keyboard - Low profile Stackpole grid

snuci · 07 Apr 2016, 20:05

This is an keyboard the was used on a Lear Siegler ADM-11 terminal. It has a couple of things that are interesting in that it has the classic looking Stackpole grid switch with the waffle grid but it is low profile and not as tall as I am used to seeing. The other interesting part is the word "Oak" on the PCB. Is this related to Oak switches in some way? Were Stackpole and Oak related?

Here are some pics:

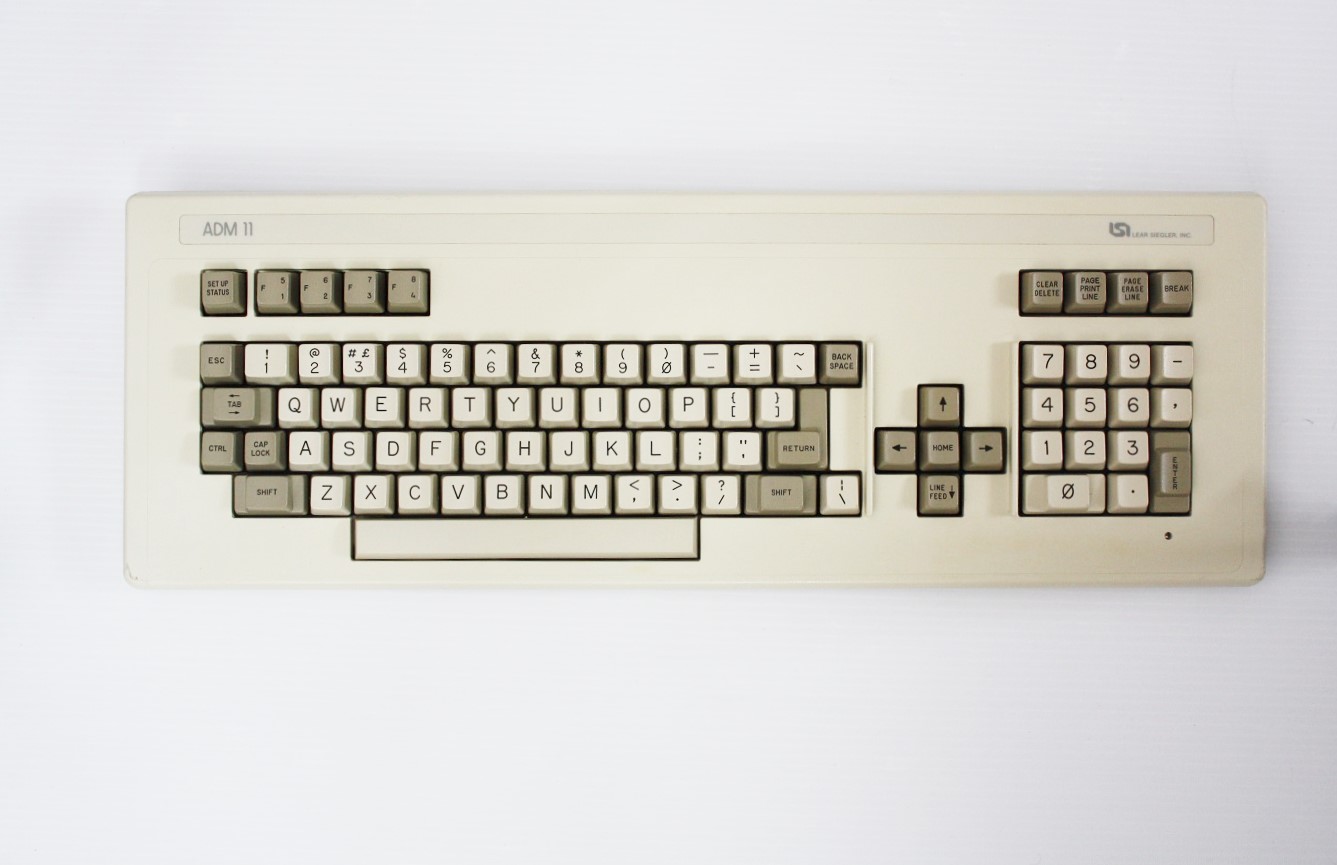

: ADM11 - keyboard; ADM11 - keyboard.JPG (149 KiB) Viewed 1215 times

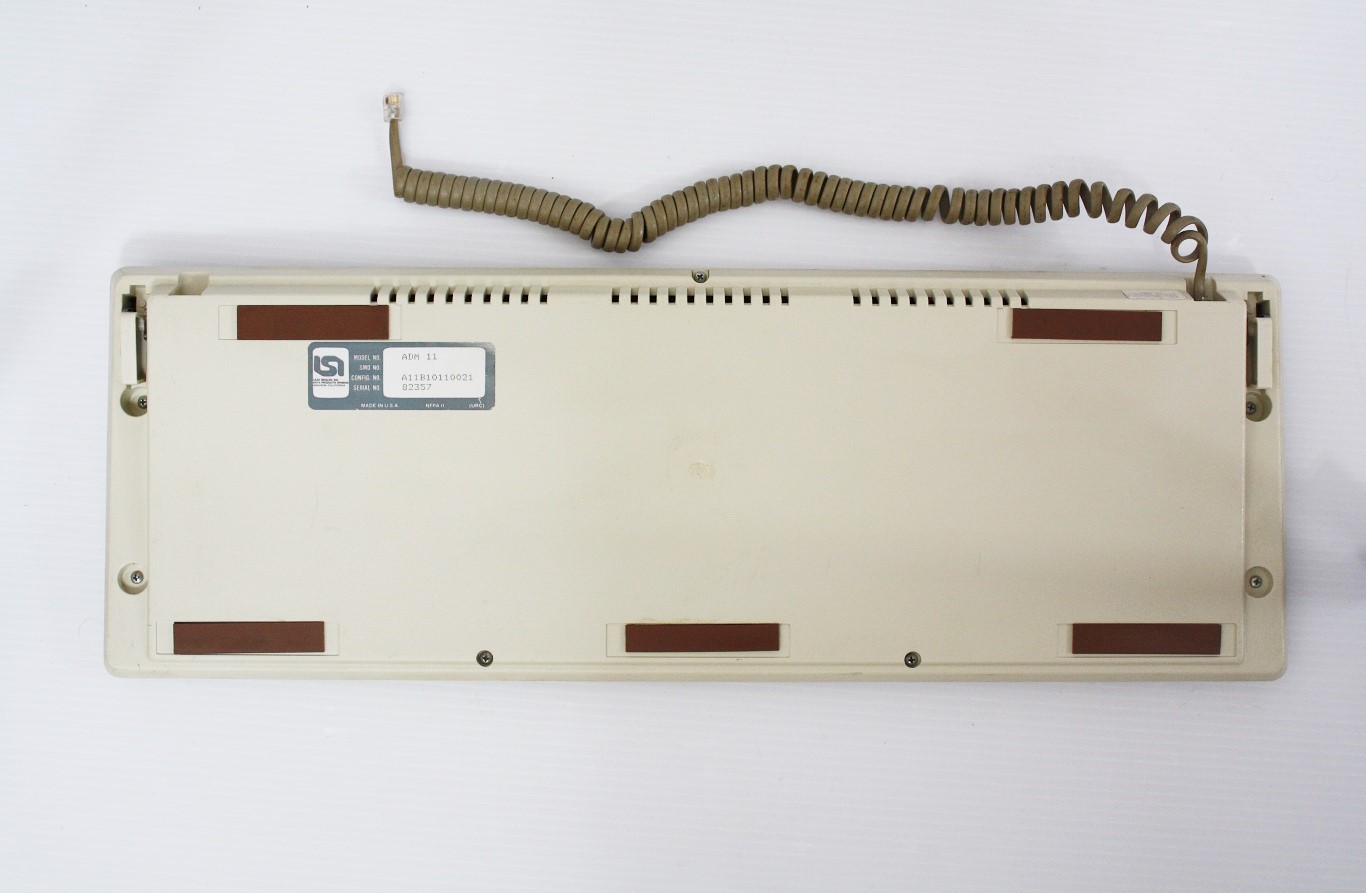

: ADM11 - back of keyboard; ADM11 - back of keyboard.JPG (164.97 KiB) Viewed 1215 times

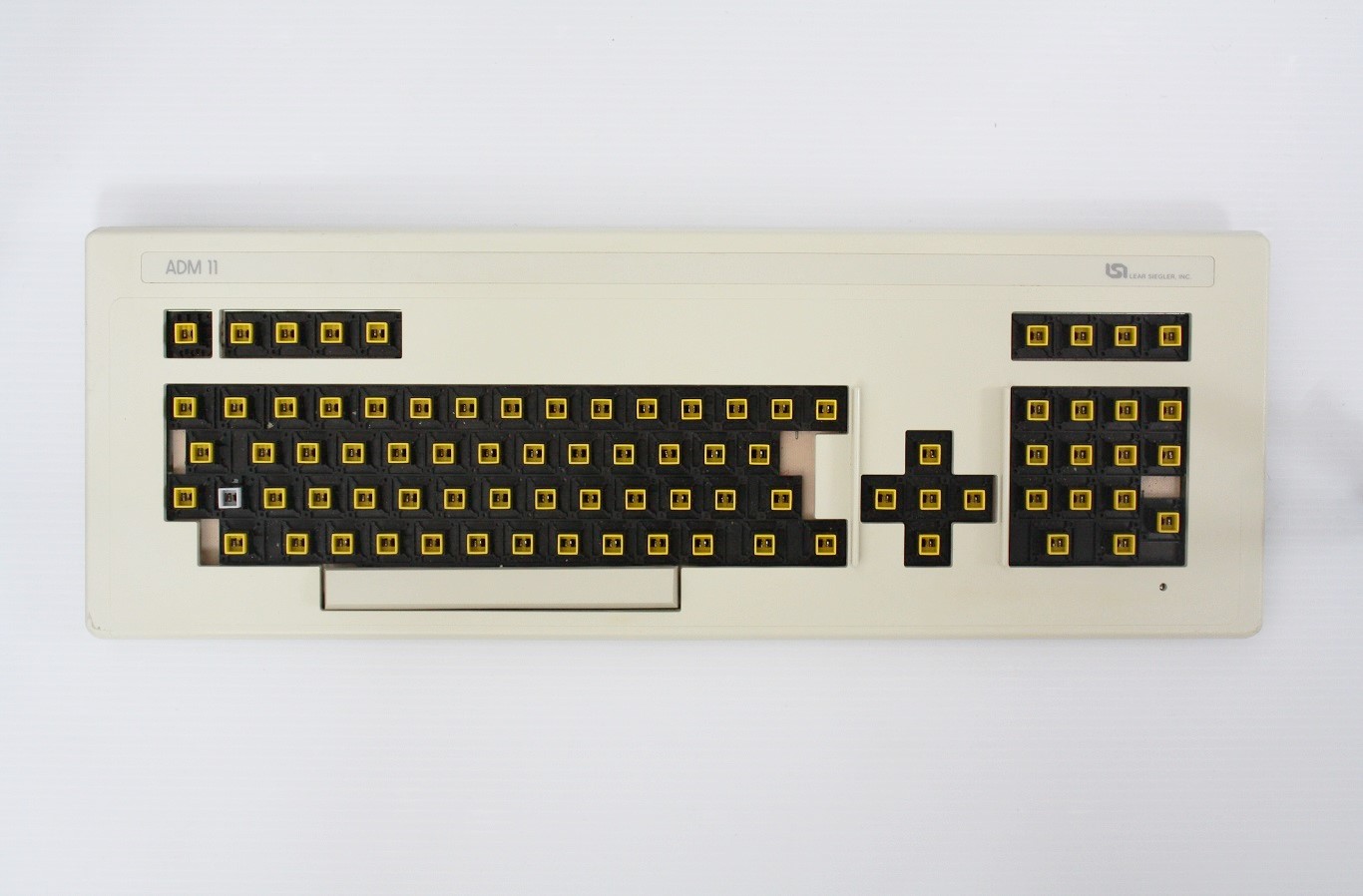

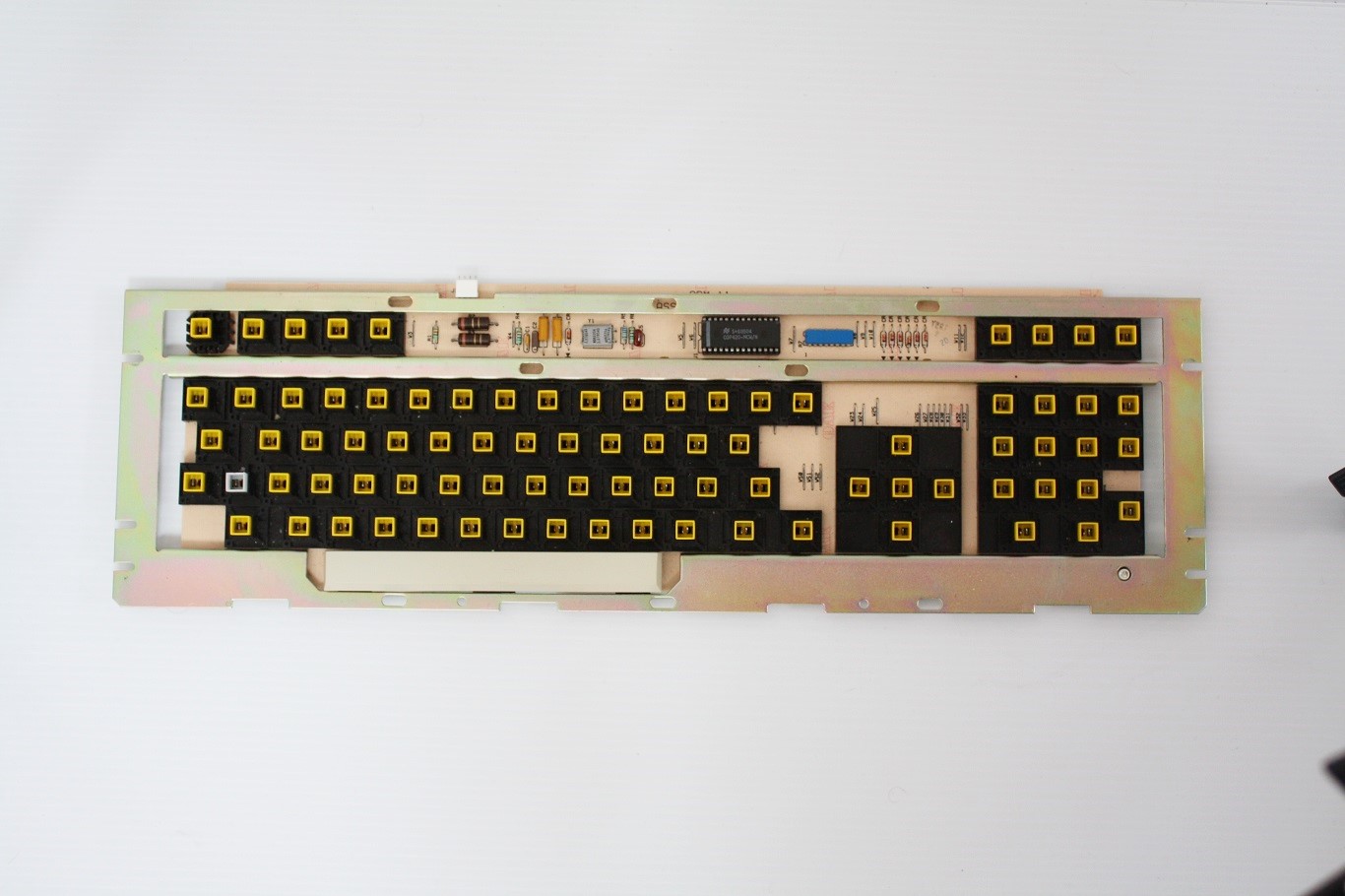

: ADM11 - back of keyboard; ADM11 - keyboard with key caps removed.JPG (174.48 KiB) Viewed 1215 times

: ADM11 - keyboard mechanism; ADM11 - keyboard mechanism.JPG (184.87 KiB) Viewed 1215 times

: ADM11 - back of keyboard mechanism; ADM11 - back of keyboard mechanism.JPG (170.29 KiB) Viewed 1215 times

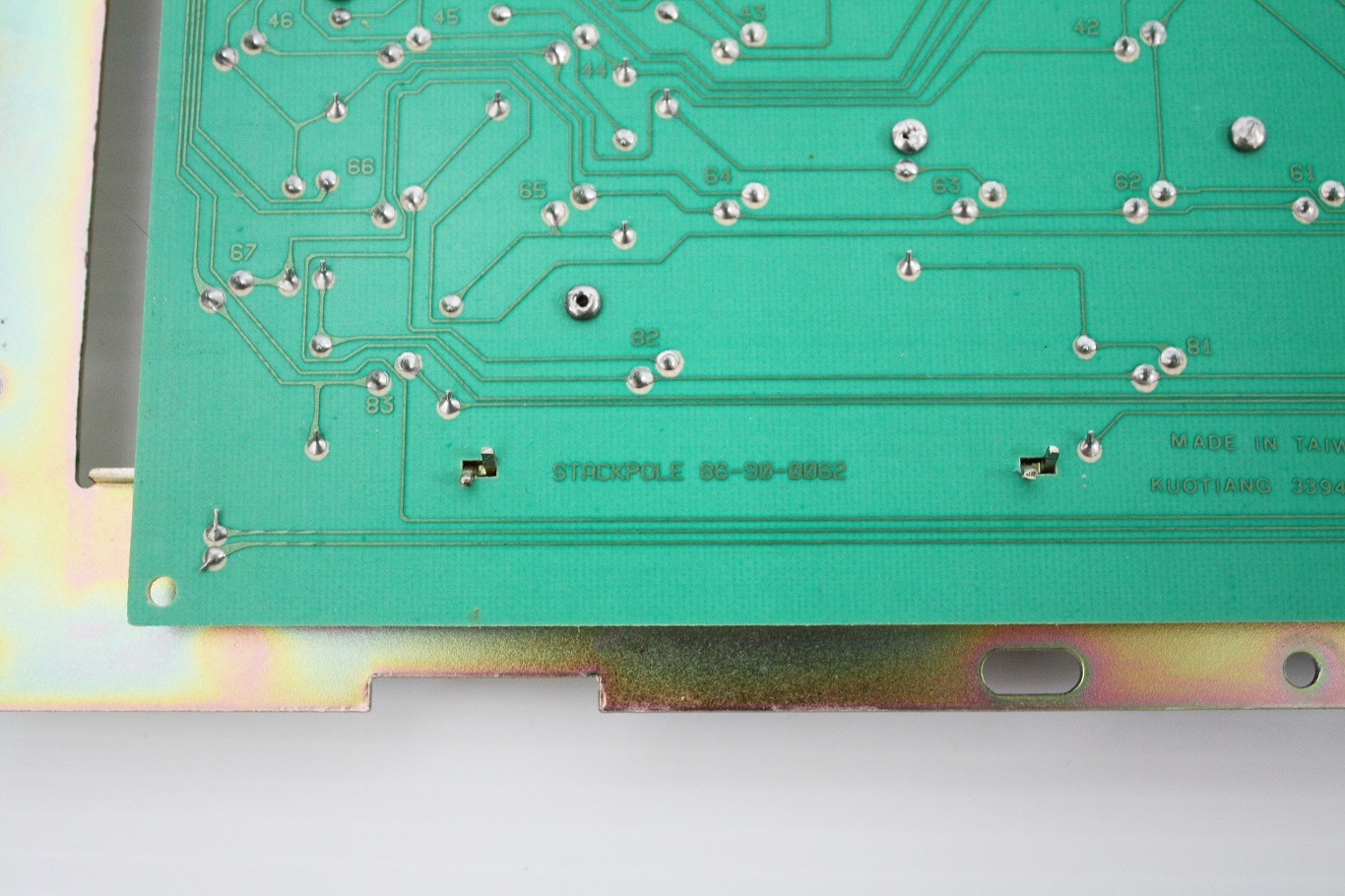

: ADM11 - Stackpole marking on PCB; ADM11 - Stackpole marking on PCB.JPG (295.89 KiB) Viewed 1215 times

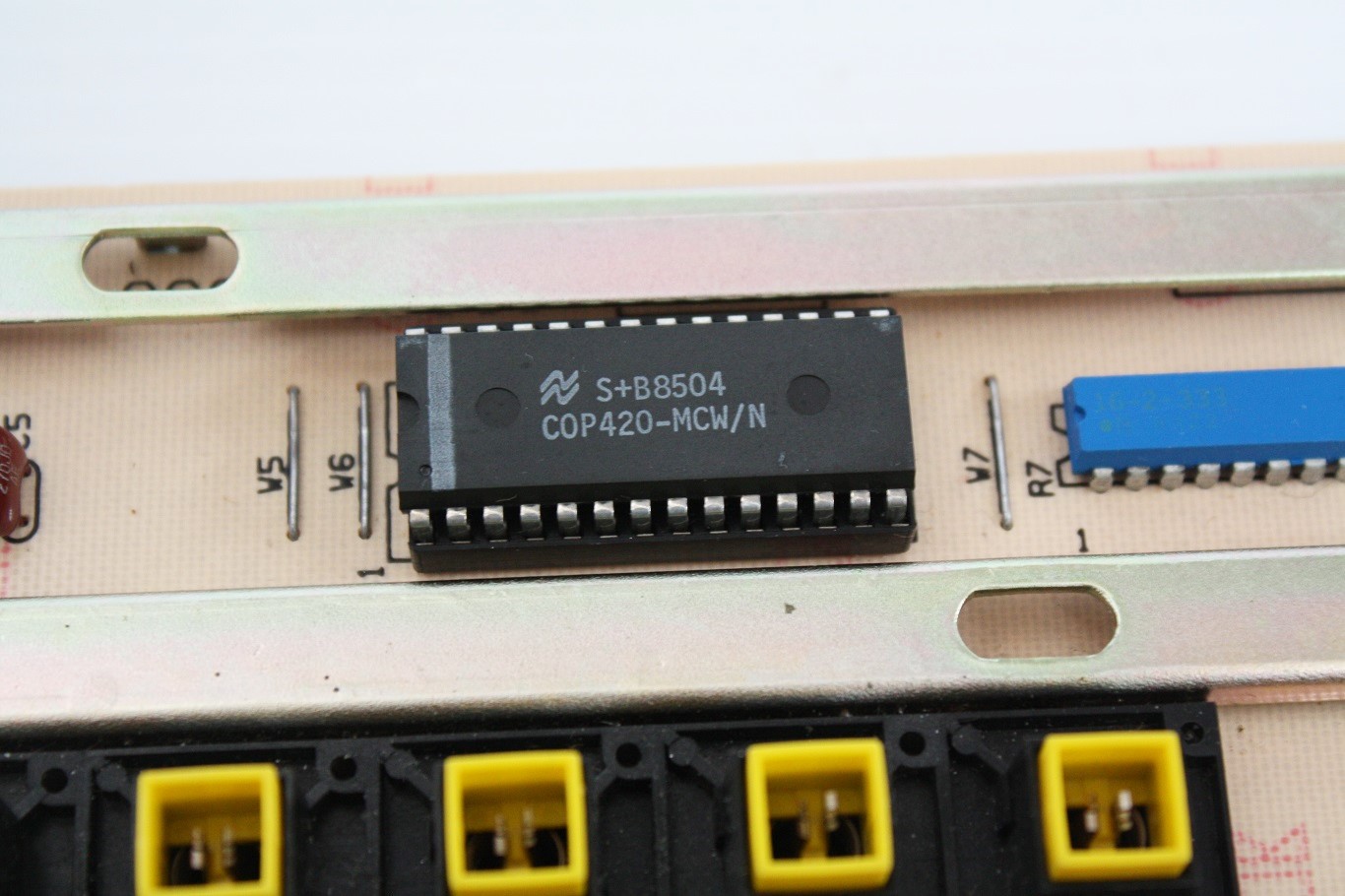

: ADM11 - Week 4 of 1985 dated controller; ADM11 - Week 4 of 1985 dated controller.JPG (221.72 KiB) Viewed 1215 times

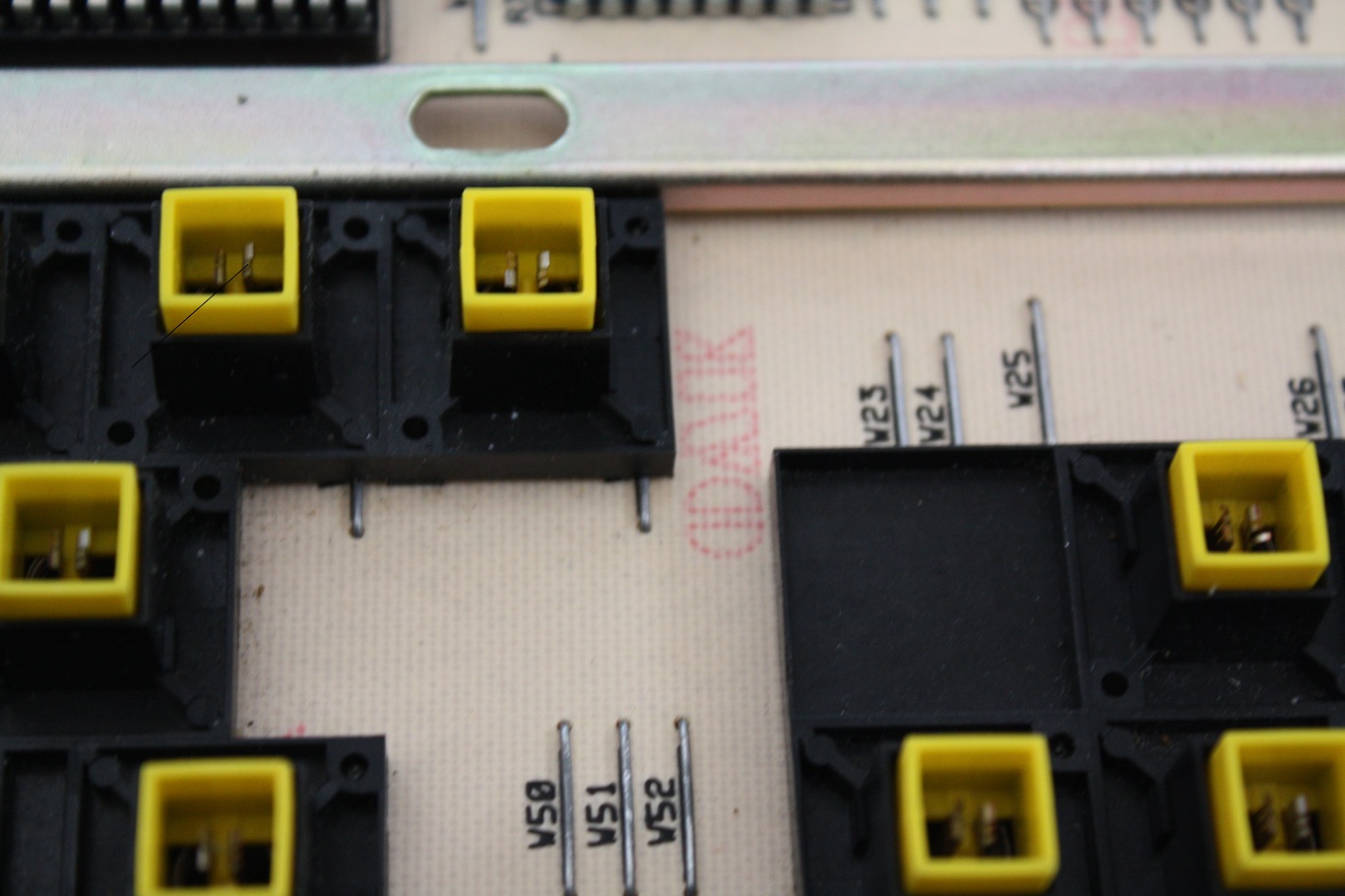

: ADM11 - Oak logo maybe?; ADM11 - Oak logo maybe.JPG (248.56 KiB) Viewed 1215 times

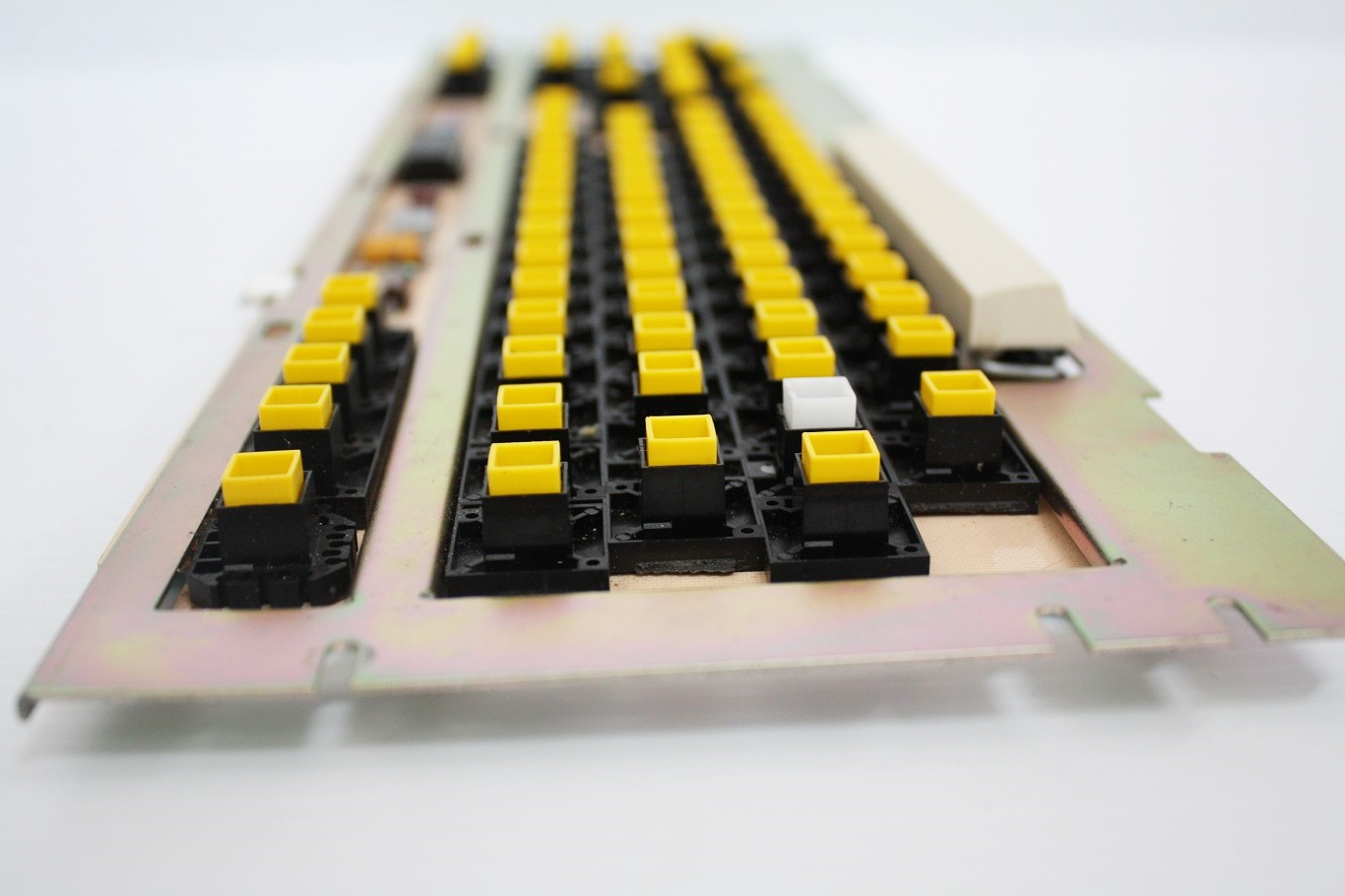

: ADM11 - Profile of the key switches; ADM11 - Profile of the key switches.JPG (160.72 KiB) Viewed 1215 times

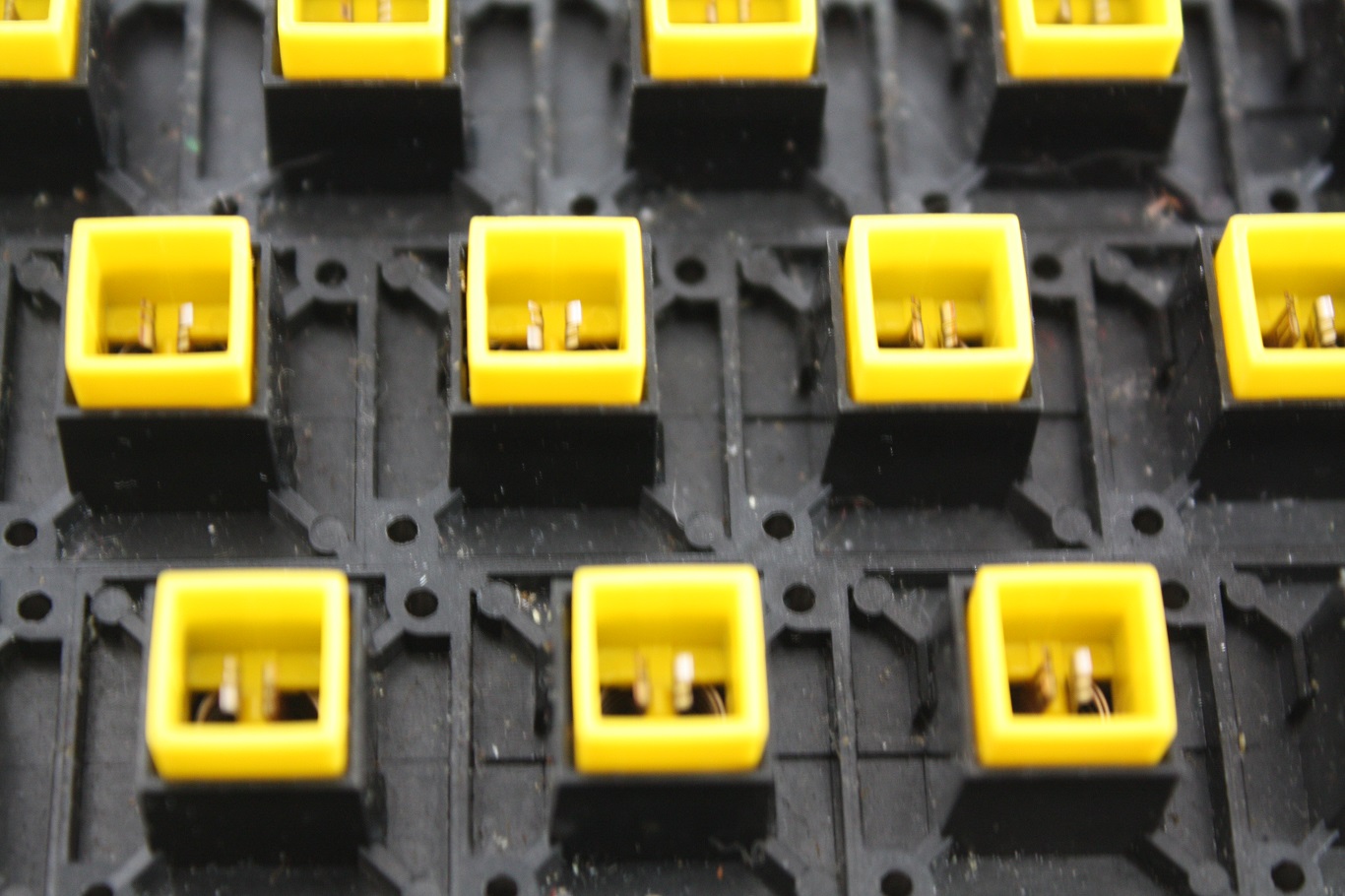

: ADM11 - close up of switches; ADM11 - close up of switches.JPG (284.24 KiB) Viewed 1215 times

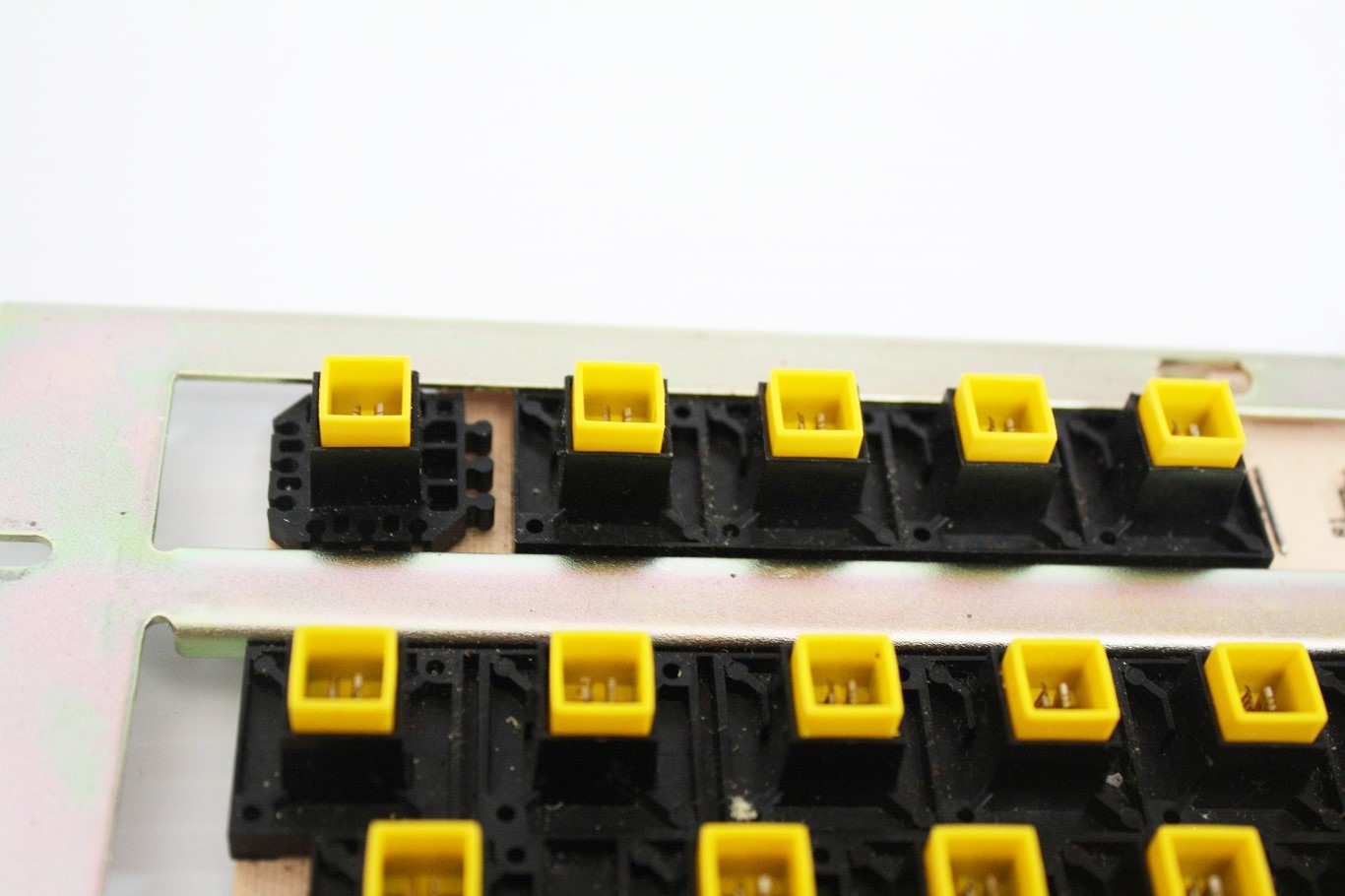

: ADM11 - top left discrete keyswitch that looks like it can be put together with others like a jigsaw puzzle; ADM11 - top left discrete keyswitch that looks like it can be put together with others like a jigsaw puzzle .JPG (177.47 KiB) Viewed 1215 times

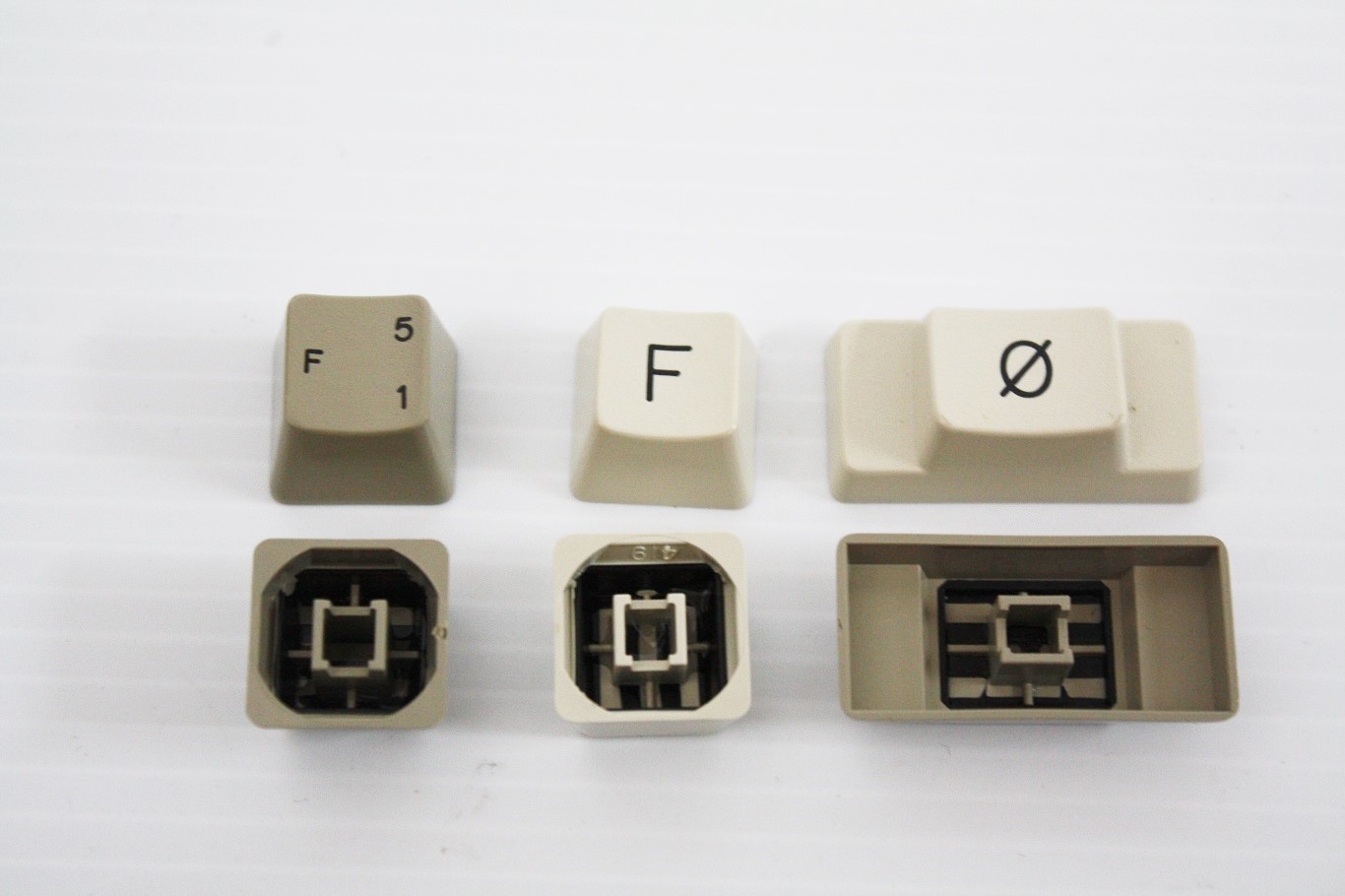

: ADM11 - key caps; ADM11 - key caps.JPG (159.87 KiB) Viewed 1215 times

seebart · 07 Apr 2016, 20:13

Another interesting one.

snuci wrote: Were Stackpole and Oak related?

Not that I am aware of, but how would I know.

wiki/Oak_Full-Travel_Membrane
