IMSAI IKB-2 keyboard within a VDP-80 computer

[snuci]

Along with the IKB-1 keyboard shown here, the keyboard within the IMSAI VDP-80 computer from 1977 contains the evolution of the "War Games" keyboard identified as the IKB-2.

This keyboard has similar Hi-Tek key switches and appears to be a "smart keyboard" as well but it was integrated into the IMSAI's VDP-80 computer.

Here are some pics:

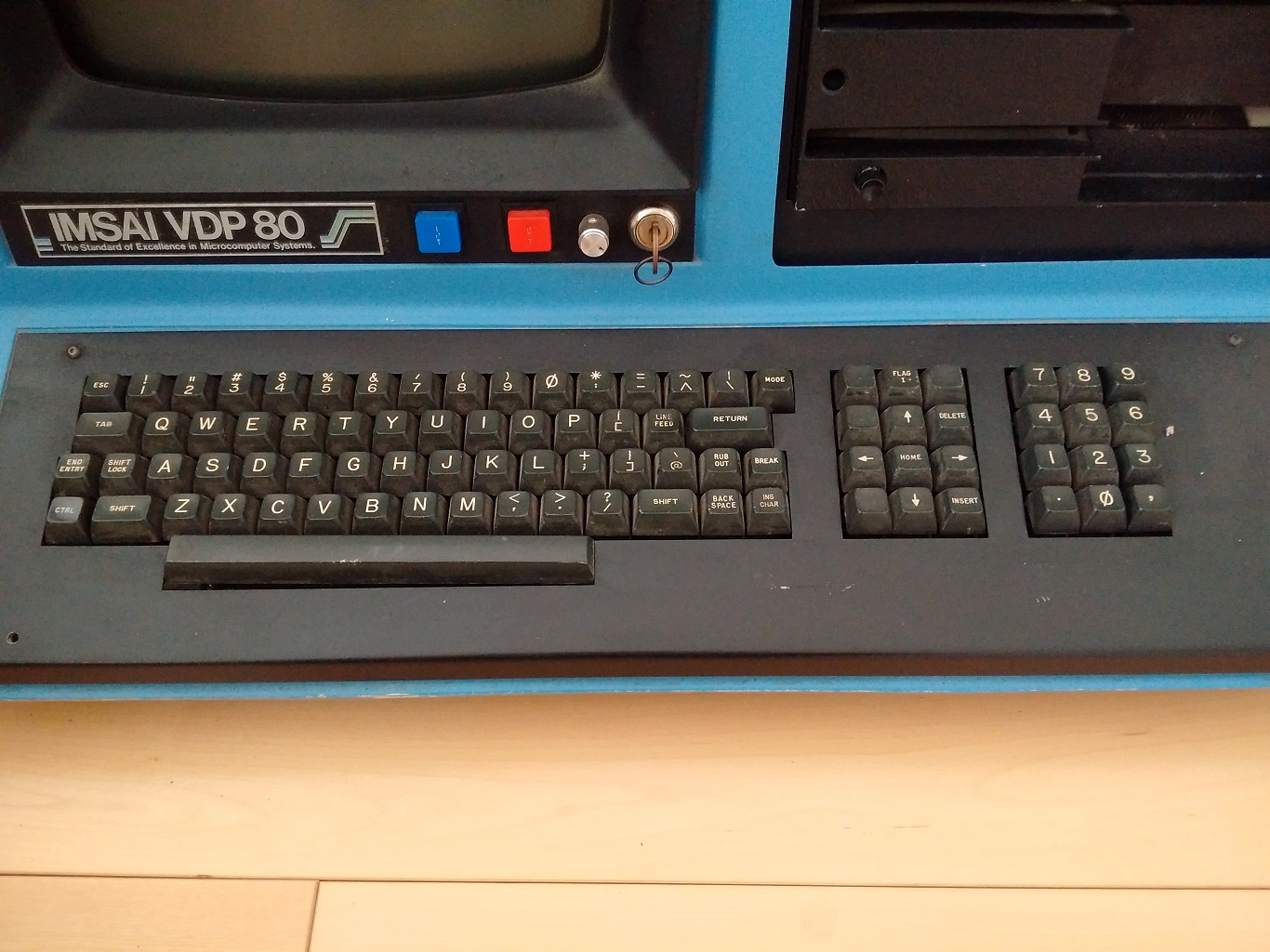

IMSAI IKB-2 - keyboard exterior

IMSAI IKB-2 - keyboard exterior.jpg (415.12 KiB) Viewed 3154 times

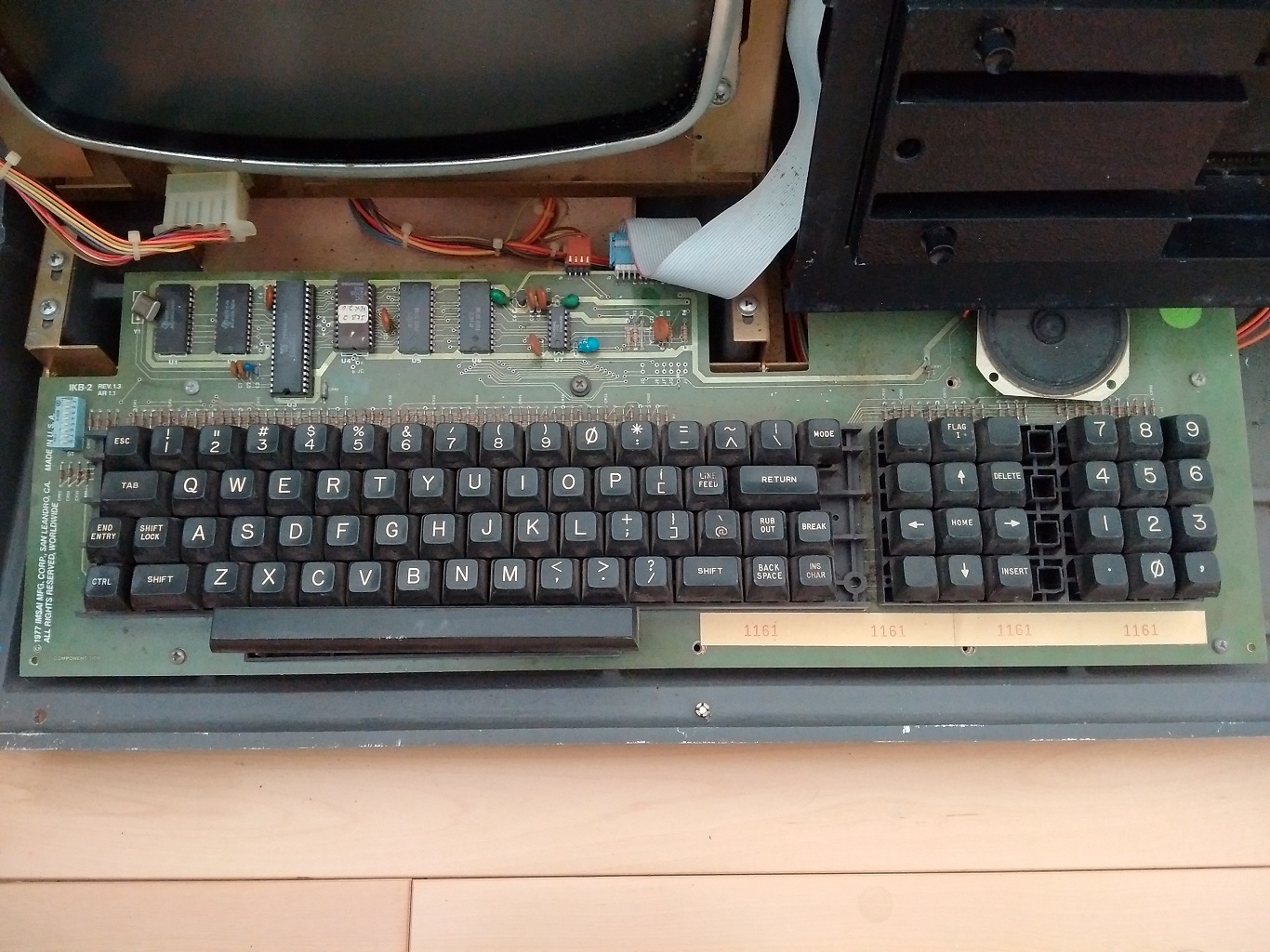

IMSAI IKB-2 - VDP-80 cover lifted

IMSAI IKB-2 - VDP-80 cover lifted.jpg (492.91 KiB) Viewed 3154 times

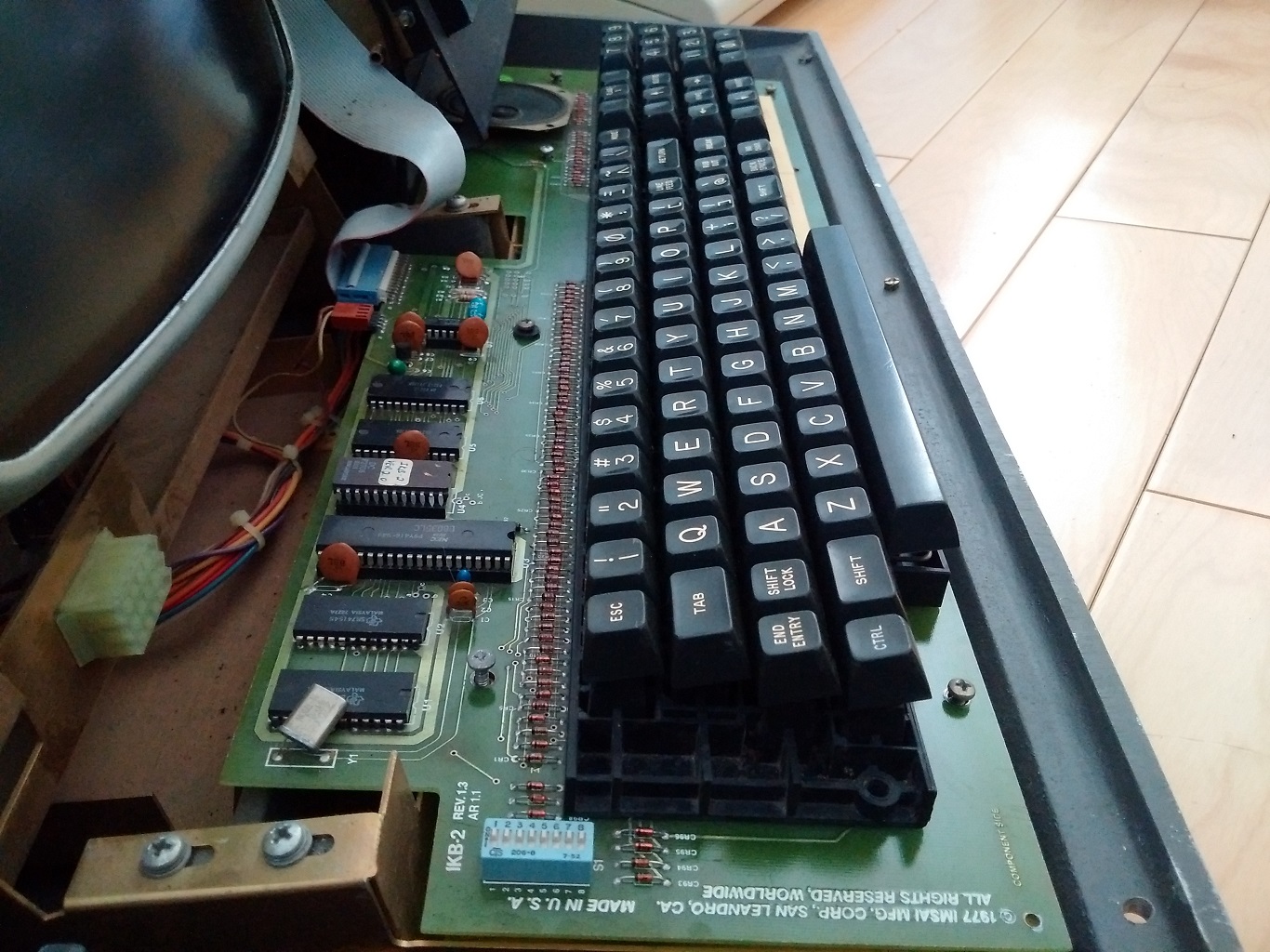

IMSAI IKB-2 - keyboard profile

IMSAI IKB-2 - keyboard profile.jpg (486.78 KiB) Viewed 3154 times

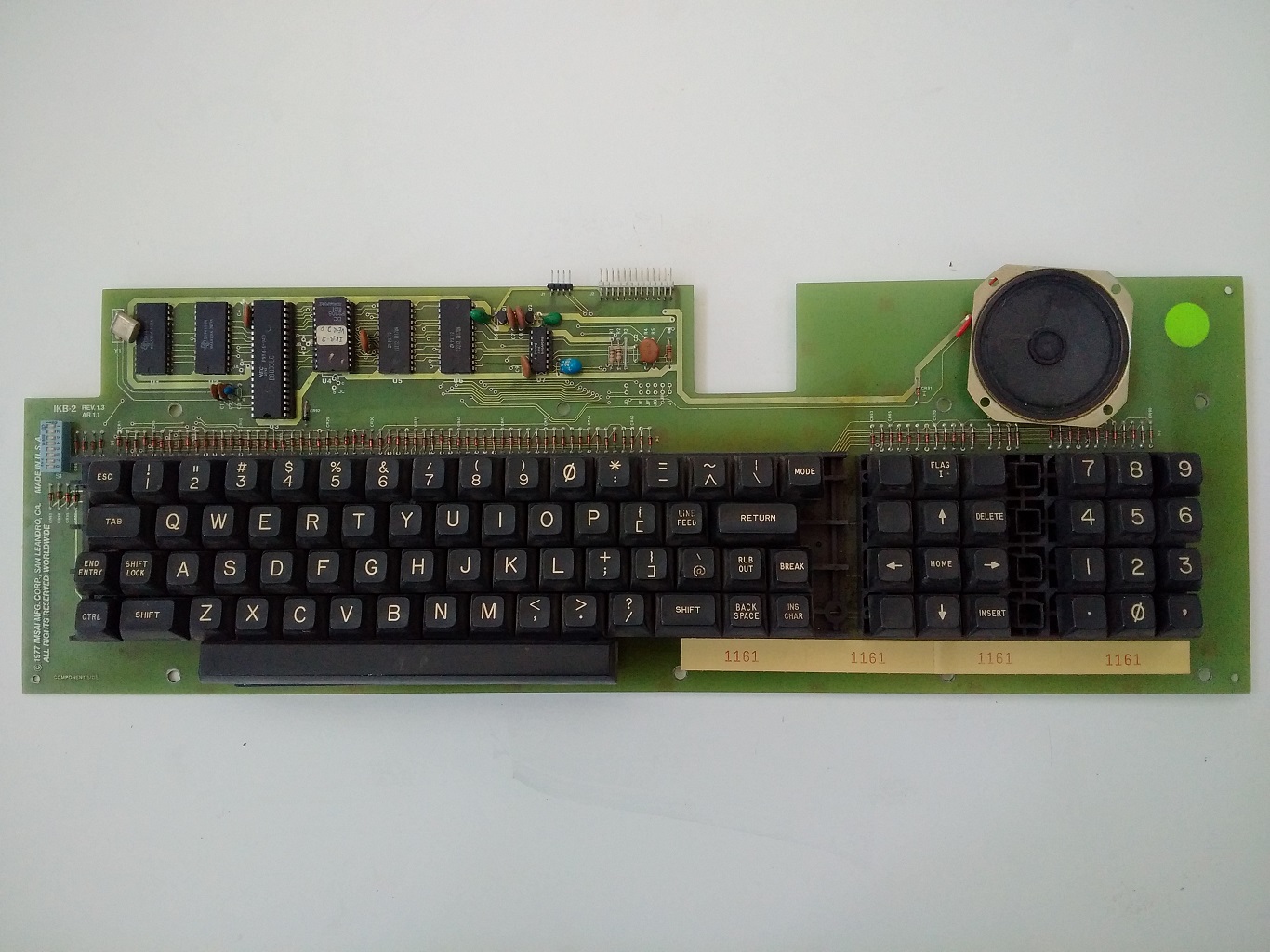

IMSAI IKB-2 - top of keyboard circuit board

IMSAI IKB-2 - top of keyboard circuit board.jpg (396.57 KiB) Viewed 3154 times

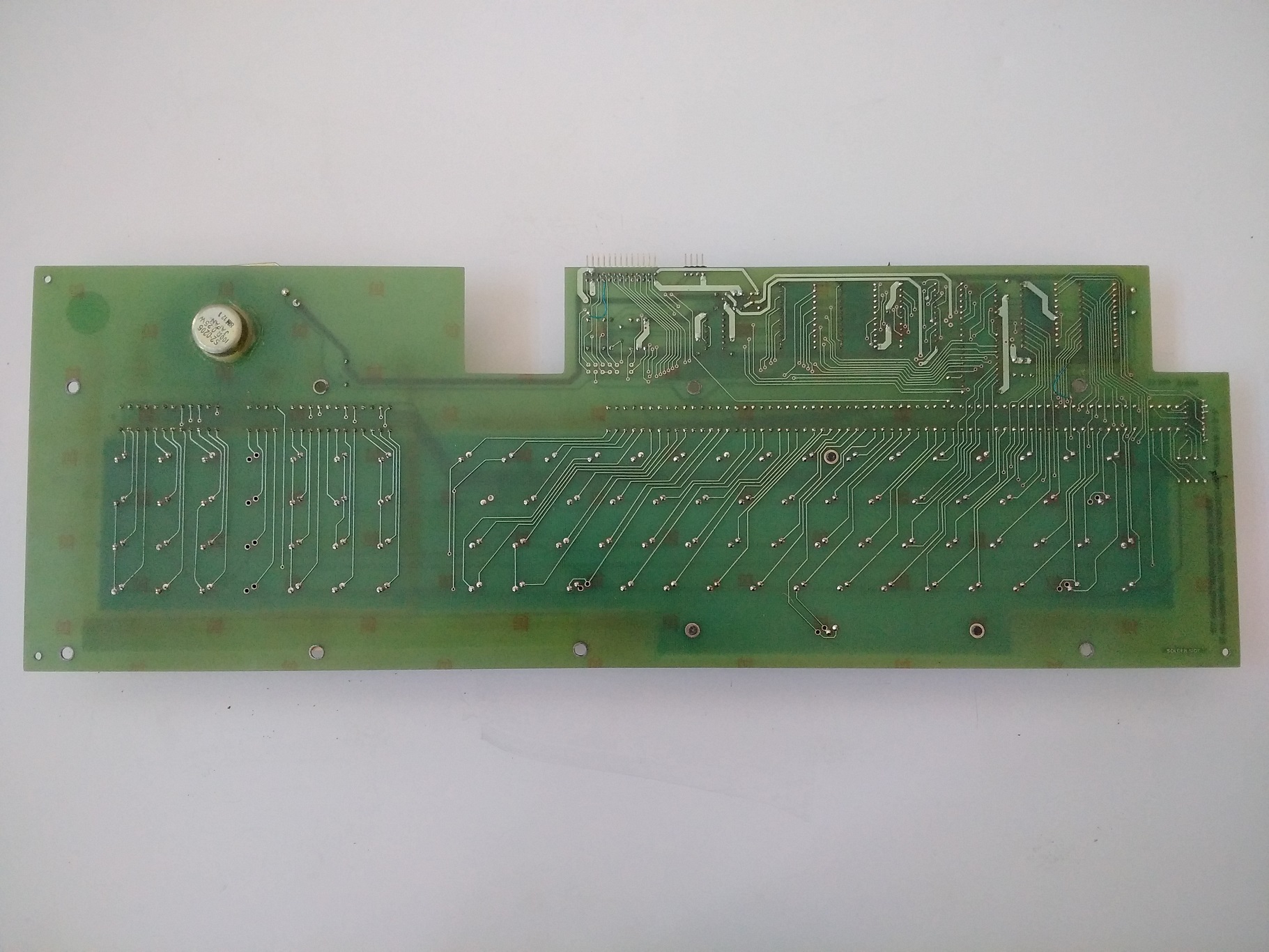

IMSAI IKB-2 - back of keyboard circuit board

IMSAI IKB-2 - back of keyboard circuit board.jpg (622.55 KiB) Viewed 3154 times

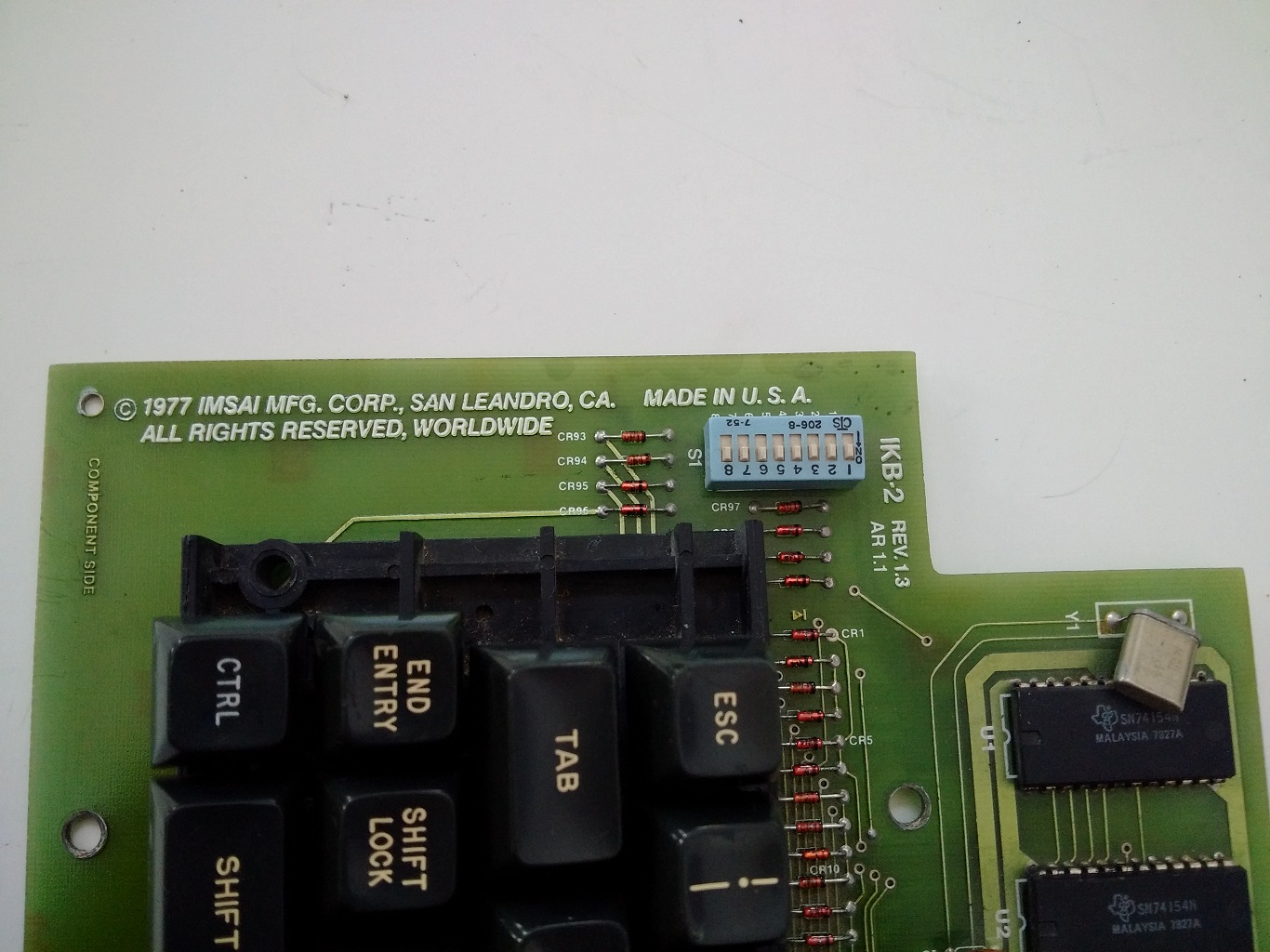

IMSAI IKB-2 - keyboard markings

IMSAI IKB-2 - keyboard markings.jpg (386.17 KiB) Viewed 3154 times

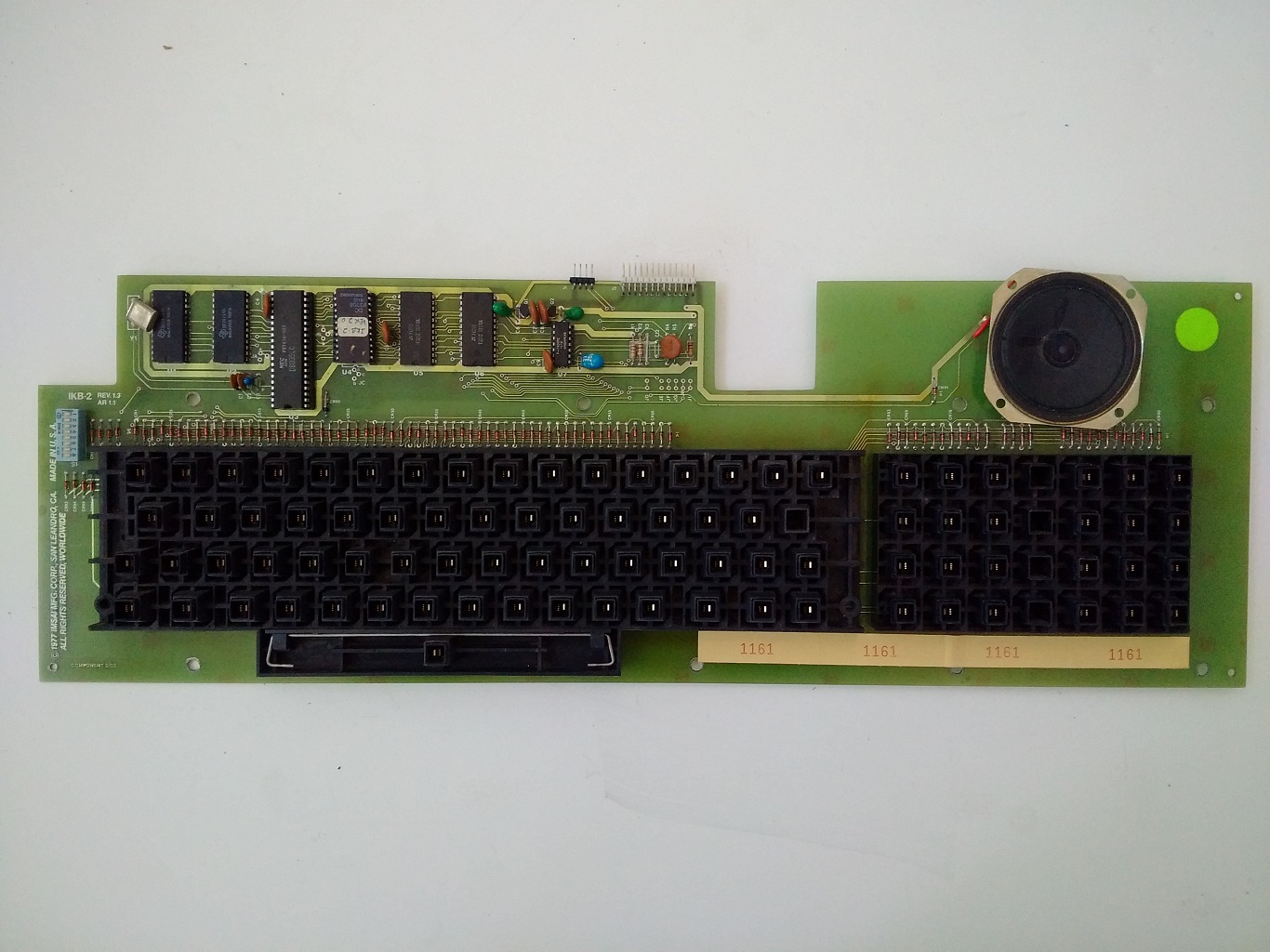

IMSAI IKB-2 - key caps removed

IMSAI IKB-2 - key caps removed.jpg (386.1 KiB) Viewed 3154 times

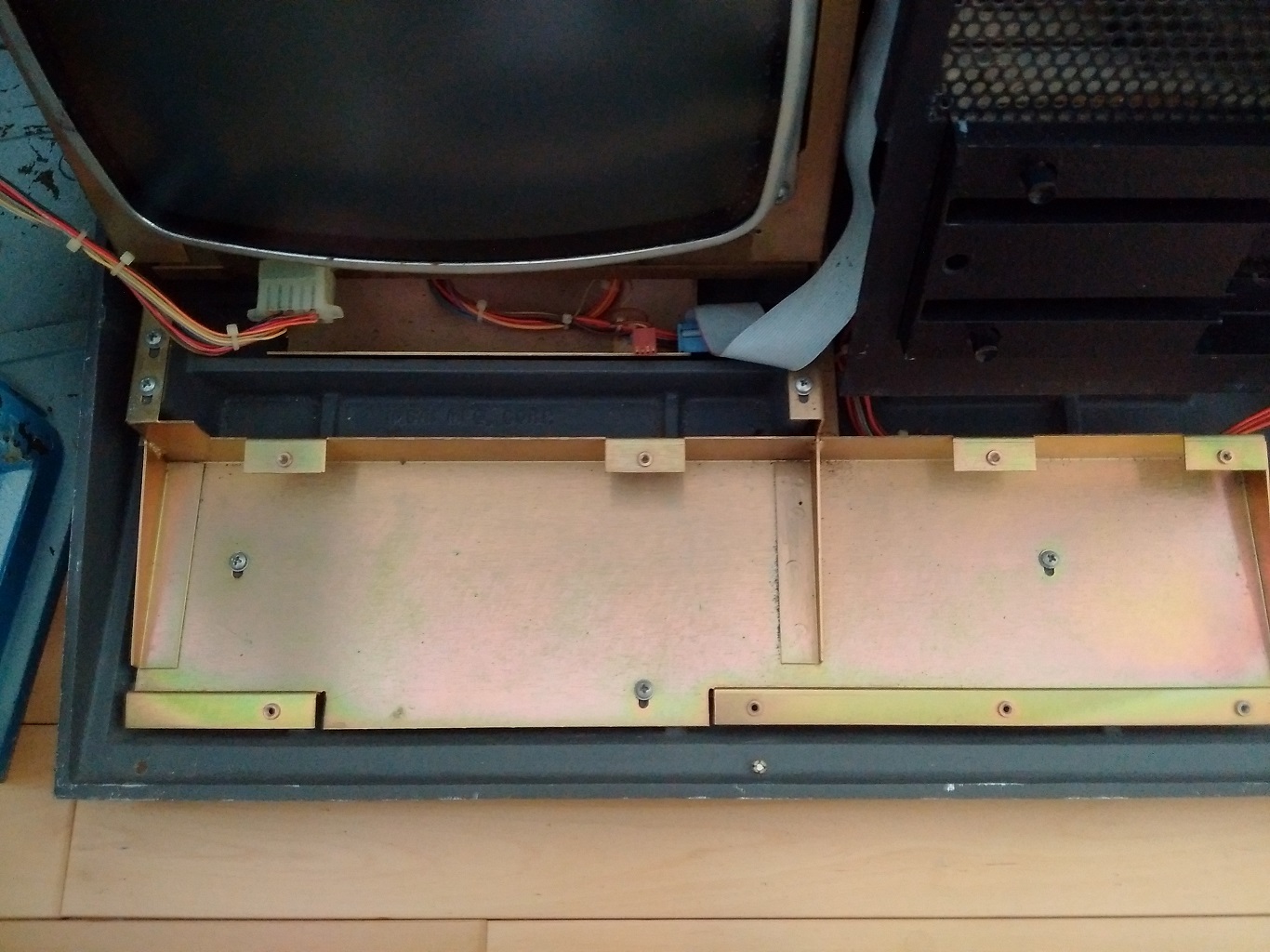

IMSAI IKB-2 - keyboard mounting plate

IMSAI IKB-2 - keyboard mounting plate.jpg (386.33 KiB) Viewed 3154 times

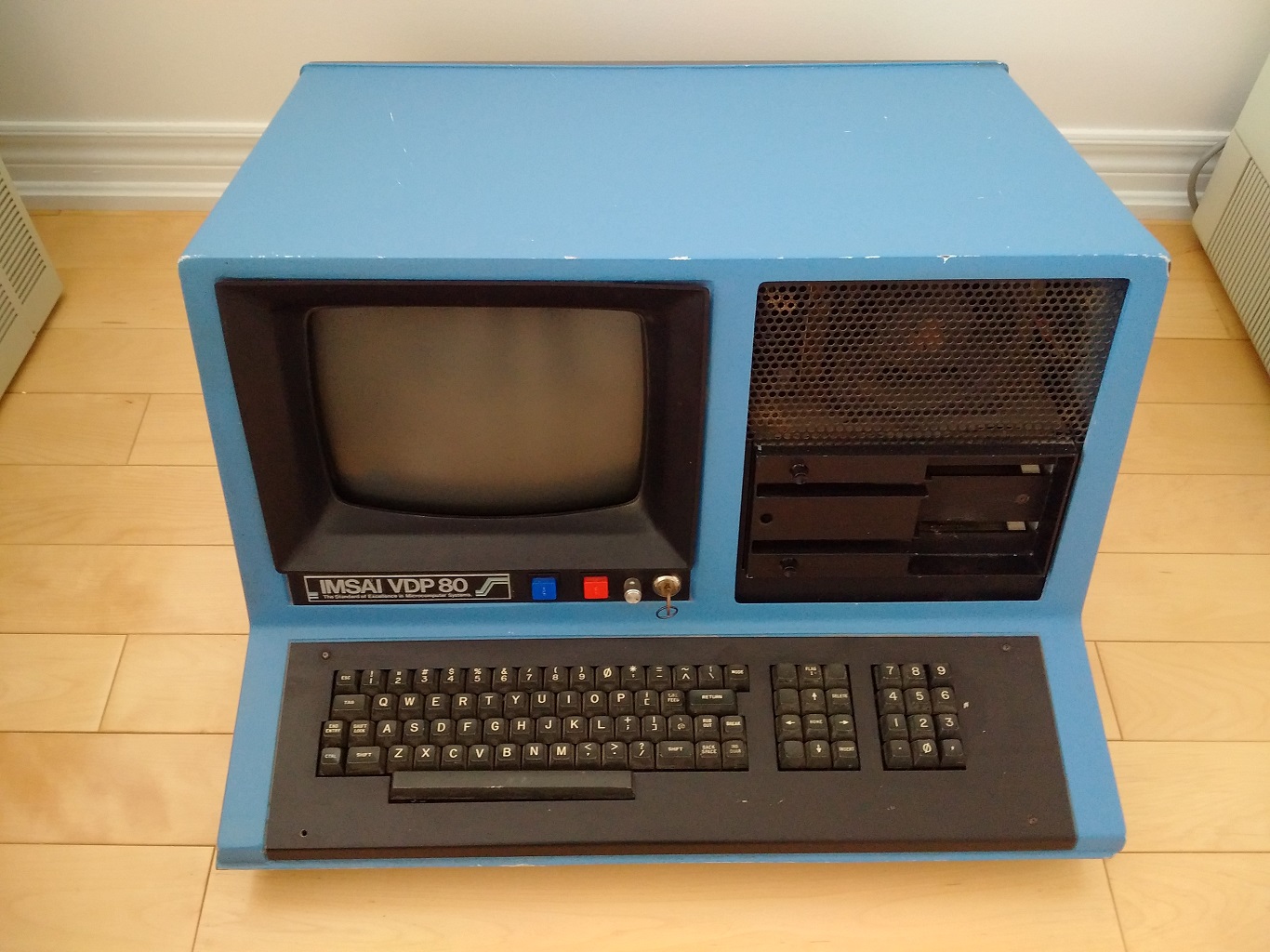

IMSAI IKB-2 - complete IMSAI VDP-80

IMSAI IKB-2 - complete IMSAI VDP-80.jpg (398.24 KiB) Viewed 3154 times

[mr_a500]

Wow, a VDP-80! Once again, it's a pity it's Hi-Tek - rough, scratchy sliders that usually crack in the corners.

I'm sure you've seen this ad:

BYTE IMSAI VDP-80.jpg

Notice the ad shows both a blue (background) keyboard and a black one.

[snuci]

Notice the ad shows both a blue (background) keyboard and a black one.

Very interesting. I've not seen that ad but the blue background keyboard doesn't have a numeric keypad so it's either a slightly different model or a prototype. The ad you posted also doesn't mention the numeric keypad either. Strange.

[MECHGAMER]

Is that key used for starting the system?

[snuci]

Is that key used for starting the system?

Yes, you turn the key to power it up and boot. Some of the older systems are like this.
