Why does nobody seem to like F-keys???

I just don't use them enough. Fn+number is so easy to use instead. Nothing personal, f-row, you're just not for me!

The numpad is more of an issue. It's always in the way on my full size keyboards, but I miss it enough on my TKLs and 60%s that I'm trying to integrate it somewhere. Maybe the left…

that one µTKL goes in the right direction, i'm looking for something between lightsaver (korean) and quickfire-tk and µTKL

hi everyone, i was lurking the forum in the past days and i finally decided i want to build my first keyboard.
i'm actually interested in the matt-3 layout (either iso or ansi version) or rindorbrot's one (i really like the dedicated funcion row though i think i could be resulting a bit too heavy with a full steel chassis)

matt3o wrote:ISO test, I actually like it very much

So cool! I'm may have to add ISO to my Round 5 order now...

http://www.keyboard-layout-editor.com/# ... 0b50f6e809

This is based on my experience with the hhkb pro jp:
- Layout plain ISO - my starting point as european.
- Fn in Win key (shifted gets Win) - never got used to those win keys, model M fault I'm sure.
- At least two Fn keys.
- Optional Fn1 layer in the Any Key with Menu in shifted position.
- Navigation / Cursors usable with just one hand.

Your comments, please.
Thanks matt3o!

Looks good to me. Should be easy to find caps for.

Seems like there's a lot of interest in compact keyboards in the difficult-to-name space between 60% and TKL. The fact I'm at the higher end for a change is amusing! Pretty sure my keyboard was the smallest one we built last year. Perhaps I should design a 40%, quick…

Standard 60% is almost too common for a GB like this

Indeed. Besides, my 60% layout was an HHKB and Poker hybrid. Now I've got that one conquered, it's time to get creative.

I like the width of the 60% keyboards, but they just don't have enough buttons to be practical for a programmer.

I therefore prefer to tack the F-keys to the top, seeing how my desk has no lack of vertical space: Mind you the 1u gap between numbers and F-keys is there mostly because I'm used to it, but also because it provides a resting spot for your fingers when you don't want to press F-any yet. I can only wonder how much metal / weight it would add though...

EDIT: Mode 1-4 is for hardware QWERTY to Colemak, Fn lock, F-key lock, etc. Also note that the F-keys have 3 legends, the small print is for Fn, the larger print is for Fn2. And yes, I sometimes use software which requires the numpad keys.

EDIT 2: Seems I forgot to add a HHKB Fn key on the right shift. I take it not everyone would like my palm-technique to press the bottom-right Fn key.

I would also love something in ISO with a function row, but more compressed. I made this layout today for future Round 5 caps, i would call it something like a Mini-TKL:



The PANIC key would be for me "DELETE" main function, and could also be a HELVETICA cross, or a KBDRUNNER, LOTUS, or whatever. UP key would be row 3, and DOWN key row 4 same as the ARROW UP row 4 key.

For work i would always need a F-row because of the software i'm working with. Main functions (funny, the name says it all) are from F2 up to F12, and also with a second layer. But maybe for home a 60% board?

[EDIT] I really like Matteo's ISO test! That could be my 60-something board.

matt3o wrote:variant for the Matt-1

Totally reminds me of the SmallFry 40% KB over at GH. Except 2 keys wider, so you actually have a proper set of punctuation keys.

madhias wrote:I would also love something in ISO with a function row, but more compressed. I made this layout today for future Round 5 caps, i would call it something like a Mini-TKL:

That's my taste!
But I'd prefer a 1x Super key and a 1.25x Alt Gr instead.

I've been fiddling with some ideas lately (yes, I am also still working on getting my keyboard finished from the last laser cutting gb )

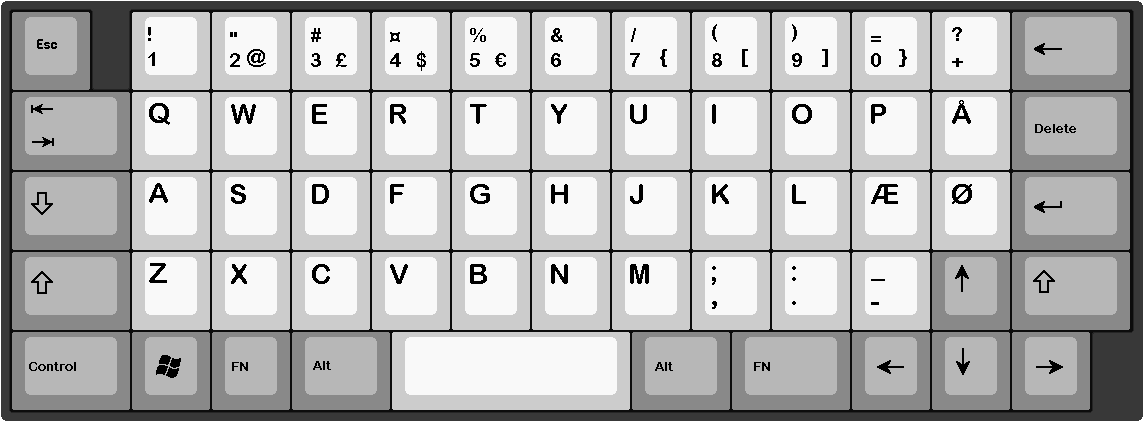

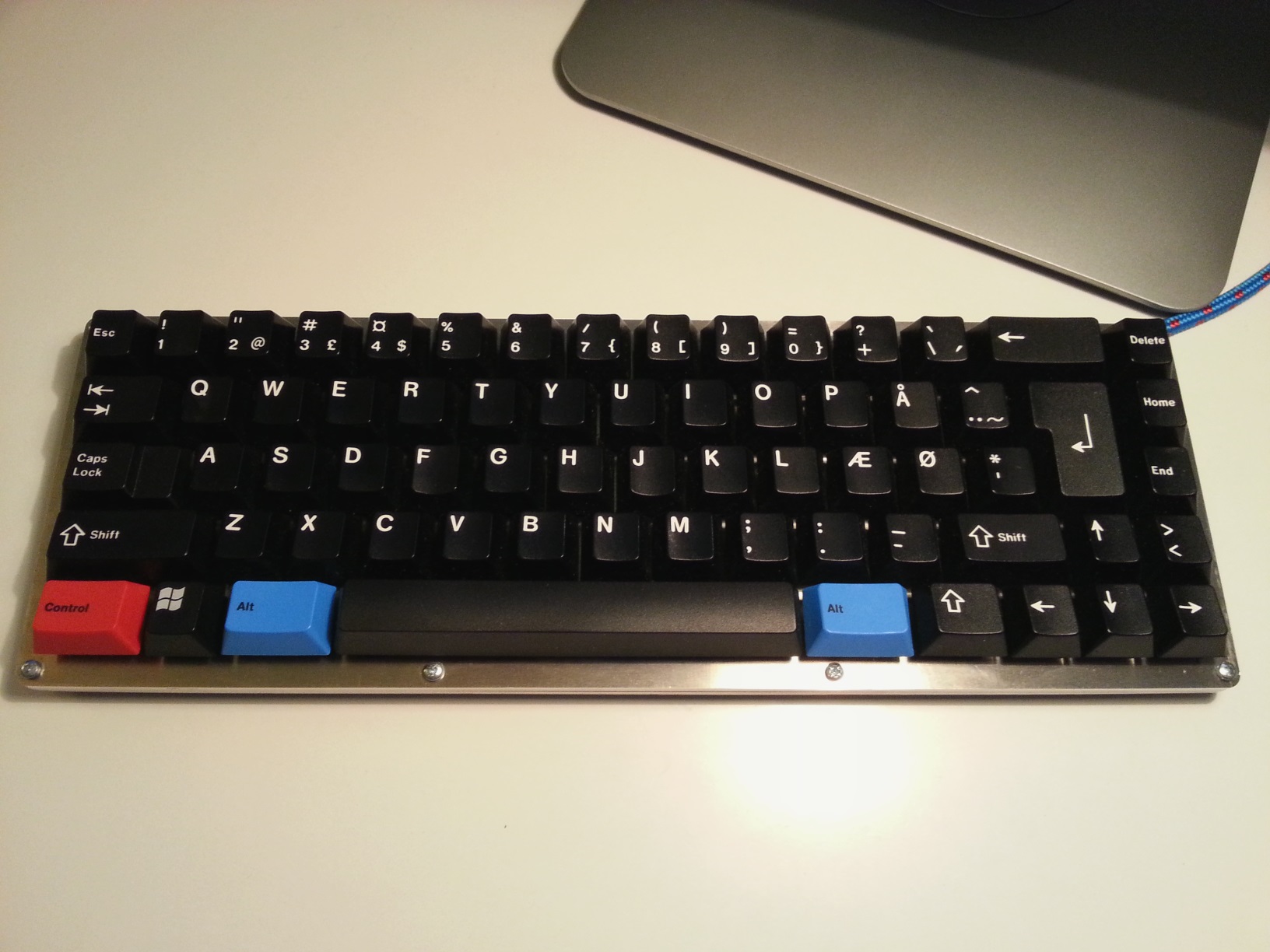

Here is what I had cut last time: If It had to accomondate a more standardized set of keycaps, I would go for something like the below. Bottomrow could be changed to 1.5 units instead and a 7u spacebar, but that depends on what key sets people would want to use. But what I really I want to try out next is a matrix layout: This was inspired by some of the more compact keyboards people have gotten into lately. I liked the idea of getting rid of the less used keys in the Nordic layout, and just adding them to the FN layer instead. That's also why I have moved the right ALT (which should have read Alt Gr) as far to the middle as possible along with the FN key, as it should make it easier to press them with the right thumb.

RaleghDirat wrote:
http://www.keyboard-layout-editor.com/# ... 0b50f6e809

This is based on my experience with the hhkb pro jp:
- Layout plain ISO - my starting point as european.
- Fn in Win key (shifted gets Win) - never got used to those win keys, model M fault I'm sure.
- At least two Fn keys.
- Optional Fn1 layer in the Any Key with Menu in shifted position.
- Navigation / Cursors usable with just one hand.

Your comments, please.
Thanks matt3o!

This is basically an ISO poker 2. I see no problem here.

I'm wondering if the the "official" layout should be very simple/standard or if we should dare a little.

Broadmonkey wrote:

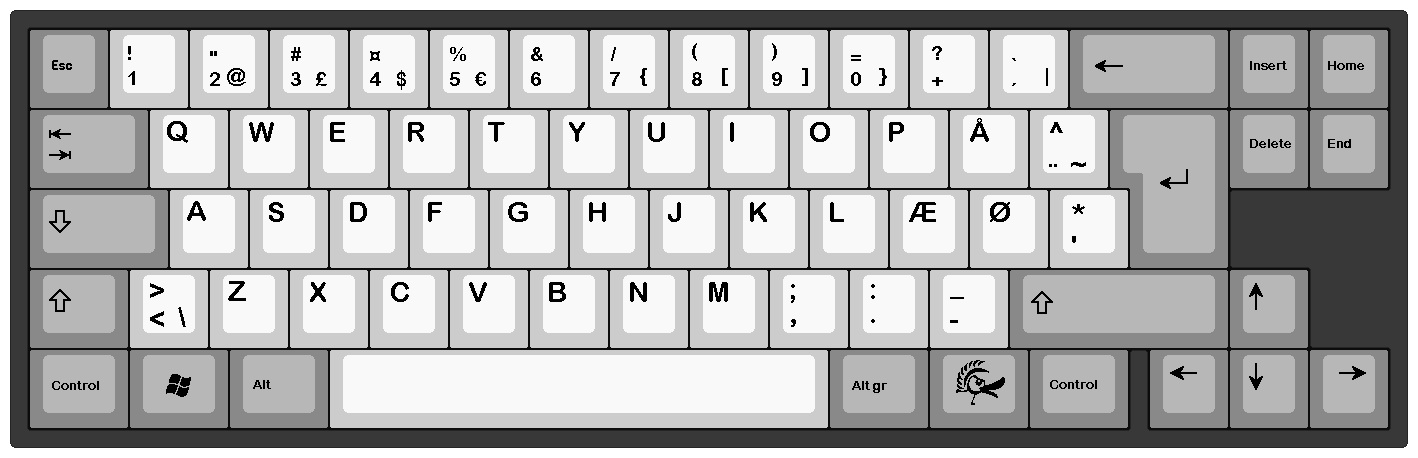

Ducky no f-row less keys.jpg

why not filling the 3 missing keys to the right?

madhias wrote:I would also love something in ISO with a function row, but more compressed. I made this layout today for future Round 5 caps, i would call it something like a Mini-TKL:

it seems to be a lot of love for the function row. well, let's see if there's more interest in a 75% than on a 55% we can always do that instead.

rindorbrot wrote:Standard 60% is almost too common for a GB like this

I mostly agree on this... but you know... keycaps...

rapax24 wrote:hi everyone, i was lurking the forum in the past days and i finally decided i want to build my first keyboard.
i'm actually interested in the matt-3 layout (either iso or ansi version) or rindorbrot's one (i really like the dedicated funcion row though i think i could be resulting a bit too heavy with a full steel chassis)

welcome aboard... and there's no such thing as too heavy in keyboards

Yes, more weight-to-key ratio also improves typing feel (at least for me).

matt3o wrote:

Broadmonkey wrote:

Ducky no f-row less keys.jpg

why not filling the 3 missing keys to the right?

Because sometimes less is more that is atleast something I learned with my last build.
But also, this way if you take a key cap set from a standard keyboard (eg. G8x-3000) you will be able to use it without any additional keys, and everything will be in the right profile. You can not do that if you fill out the three keys!

okay I understand that people want to be able to reuse various keycaps set. Using/Buying the ones designed to cover extravagant layouts is not an option.

I rather use this prototyping phase to buy more new caps! Arrgh.

Variation with 4.5 spacebar and small shifts.
http://www.keyboard-layout-editor.com/# ... f94fb15014

RaleghDirat wrote:Variation with 4.5 spacebar and small shifts.
http://www.keyboard-layout-editor.com/# ... f94fb15014

SpaceShift is good idea for you when you hold Space is Shift it seems the problem is delay
http://geekhack.org/index.php?topic=41685.0
Ctrl_L be 1.50

another iteration of the small pupil.

Nice with the longer space bar, to have 2 keys on the top right to P and another key to L and M (damn, note to myself: maybe add spacebars in size 7 in round 5 GB).

I would definitely want to handwire a board for myself, and have to decide which size it will be - today i thought it will be a 40%. Or it could also be a bigger 60% board with F-keys.

In this group build here it will be one layout which will be made?

we will have 2 or 3 "ready to deploy" sets, but you can have your very own if you want.

I think there will be a lot of custom layouts once again. That's what draws us!

An extended SmallFry seems a really nice idea. BigFry! Those punctuation keys are just too vital for me to drop. And I'd use an appropriately tiny space bar to… ah, let's make a diagram.

Ah OK, thanks for clarification!

how about 75%, I love F-row

this last one could be the Matt-4 (working title)

Move Del to the right of Backspace and that's a handsome board. But whatever are you using function keys on a Mac for? That's my platform, too, and I only use them for media control and Exposé.

For example I have to use on my Mac a virtual Windows (Parallels) installation with some F-key-loving programs
