Posted: 20 Oct 2015, 08:28
Do you know what the switch mounting hole diameter is? And the width(thickness) of the pcb?
Page 57 of 58
Posted: 20 Oct 2015, 13:52
Oh man, that is such a beauty. Keep telling myself I don't need more keyboards, then stuff like this comes along
Posted: 20 Oct 2015, 23:23
I really have to stop reading through all the old posts, is really going to start costing me a fortune. Is it too late to register interest? Fingers crossed x
Posted: 21 Oct 2015, 08:49
will there be different color cases?
Posted: 21 Oct 2015, 10:49
I have interest in it too, but i do not think it's too late for register as the PCB prototype arrived just a bit sooner, am i right?
Posted: 21 Oct 2015, 11:25
no it's not too late. unfortunately the latest prototype still have few issues so I had to request a new one. I guess it will be ready for Christmas...
on a side note I'm pushing to make also a limited edition in dark gold anodized aluminum and black on black keycaps... mmmh delicious
on a side note I'm pushing to make also a limited edition in dark gold anodized aluminum and black on black keycaps... mmmh delicious
Posted: 21 Oct 2015, 11:32
Yumminess ahead!
Posted: 21 Oct 2015, 14:41
Phew, I thought for a second I had missed an official IC or something! Do you know what format the GB will be in? Will it just be on here, or will it be another Massdrop thing?
Posted: 21 Oct 2015, 18:05
Is it a HHKB? is it a standard 60% ? Nobody Knows! But i want it.
I call it the UNIX60
I call it the UNIX60

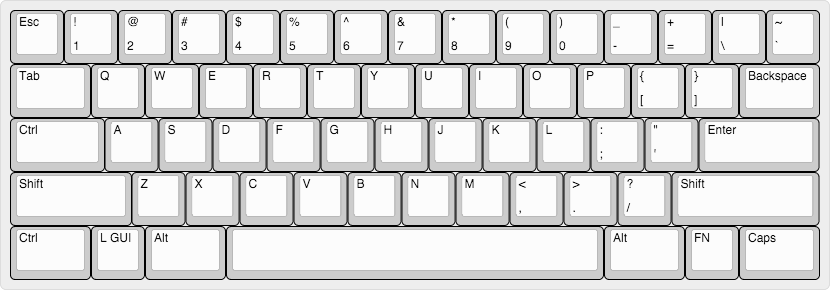

- keyboard-layout.png (29.67 KiB) Viewed 7118 times
Posted: 21 Oct 2015, 18:08
Split that right Shift, you insensitive clod! With an HHKB top row like that, you're still in non-standard 60% caps territory anyway.
Posted: 21 Oct 2015, 18:09
Thats an option too !
i just don't know why the UNIX60 does not exist.
EDIT
Updated.
EDIT2
With mx compatible topre mounts! And High Profile PBT!
i just don't know why the UNIX60 does not exist.
EDIT
Updated.

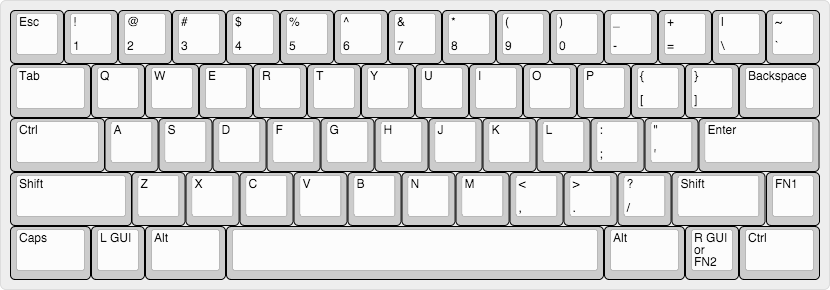

- keyboard-layout (2).png (30.69 KiB) Viewed 7108 times
With mx compatible topre mounts! And High Profile PBT!
Posted: 29 Oct 2015, 14:49
On which software did you realized you CAD files? Do you plan to share them?
Posted: 29 Oct 2015, 16:39
the GH60 supports that layout
Posted: 29 Oct 2015, 17:34
Posted: 29 Oct 2015, 17:47
Posted: 29 Oct 2015, 17:58
Hmm possibly something for next year , all funds will be on the 4704 remake i think.
And then i would have to brave the GH classifieds. You need protection from the xenos.
And then i would have to brave the GH classifieds. You need protection from the xenos.
Posted: 31 Oct 2015, 21:45
Keyboard has a similar setup to the Infinity Ergodox, this means it has a 16 MHz crystal (just like the Teesny 3s).flabbergast wrote: Hey matt3o - got a question about the PCB - if I'm reading the thread correctly, you're using MK20DX256VLH7 chip (Teensy 3.1/3.2) on it right? So my question is - does your PCB/circuit include the crystal?
Running USB on that chip without a crystal is officially out-of-spec, although it *does* work (as mchck and infinity KB demonstrated); I'm just curious.
I'm porting TMK to run on ARM Teensies, and I want to make sure that it will include also whitefox, so I'd like to know about the crystal. (TMK works fine by now, I'm now making sure that EEPROM support works as well, to have the bootmagic stuff working.)
I sent hasu a pcb a few weeks back (as well as an Infinity Ergodox beta pcb). The Whitefox is a bit easier to port than the Infinity Ergodox, so it may be ready earlier
Just look for code that has
Code: Select all
defined(_mk20dx256vlh7_)For example: https://github.com/kiibohd/controller/b ... 0dx.c#L516
Posted: 03 Nov 2015, 10:10
yeah i built a gh60 in that layout
a friend of mine is working on another PCB that will support this too.additionally, hasu's alps64 supports this layout as well. cap support is another matter.
Posted: 15 Nov 2015, 02:57
Any update on any progress made?
Posted: 15 Nov 2015, 08:47
I should get everything this coming week. I hope everything will be fine. We are on track for Christmas release!
Posted: 15 Nov 2015, 16:04
Posted: 17 Nov 2015, 15:43
Posted: 17 Nov 2015, 15:45
did I mention there will also be a special edition gold anodized?
Posted: 17 Nov 2015, 17:47
Posted: 21 Nov 2015, 00:12
I've got tracking for the (hopefully) last pre production sample! I'll get it next Tuesday!
Posted: 21 Nov 2015, 03:47
WooHoo!
Posted: 23 Nov 2015, 17:16
I got them! Now I have to check that everything's working. In the meantime...
Posted: 23 Nov 2015, 17:29
That text mod has got an icon on it… and those foxes look damn sharp…
The plate's got a nice patina, too.
The plate's got a nice patina, too.
Posted: 23 Nov 2015, 17:31
I'll post better pictures, the camera-phone mangled the legends a little, they are actually sharper than they look there.
