Hi,

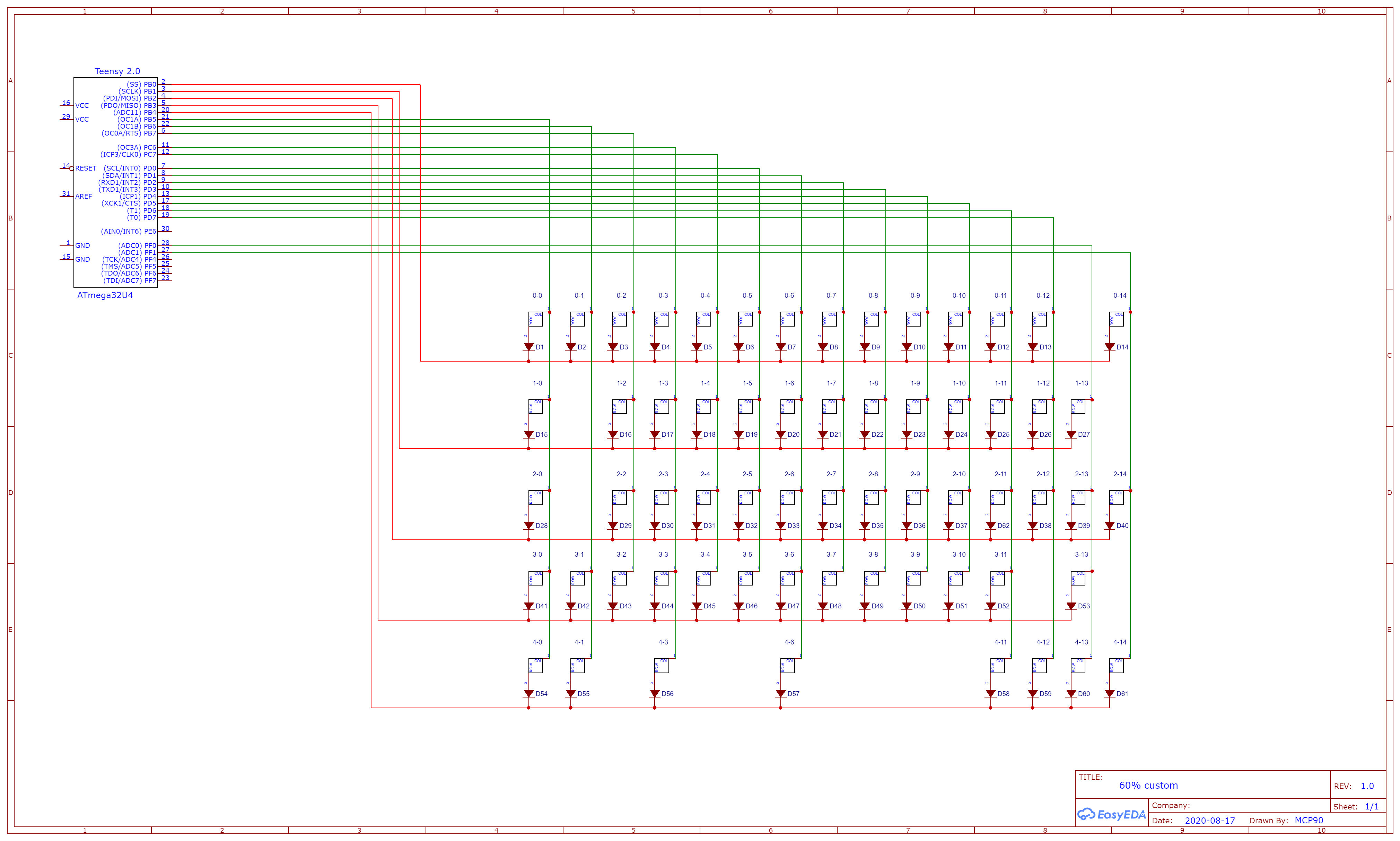

I'm another madman going all in for a totally custom keyboard, I just need some sanity check.... Is this matrix schematic correct? thanks!
Working on a fully custom keyboard [SCHEMATIC]
-
- Main keyboard: Logitech G11 & IBM Terminal 122
- Main mouse: CM Storm Xornet
- Favorite switch: Buckling Spring
- DT Pro Member: -
- vvp
- Main keyboard: Katy/K84CS
- Main mouse: symetric 5-buttons + wheel
- Favorite switch: Cherry MX
- DT Pro Member: -
Looks OK. You may want to assign columns (green lines) to ports PB and PD only. You will save two instructions when reading out the column data. You will need to read PB and PD only instead of PB, PC, PD and PF (as you have it now).
-
- Main keyboard: Logitech G11 & IBM Terminal 122
- Main mouse: CM Storm Xornet
- Favorite switch: Buckling Spring
- DT Pro Member: -
OOF, thanks buddy, for whatever reason I wasn't sure the matrix itself was correct. Thanks a lot!vvp wrote: 18 Aug 2020, 20:18 Looks OK. You may want to assign columns (green lines) to ports PB and PD only. You will save two instructions when reading out the column data. You will need to read PB and PD only instead of PB, PC, PD and PF (as you have it now).

- vvp
- Main keyboard: Katy/K84CS
- Main mouse: symetric 5-buttons + wheel
- Favorite switch: Cherry MX
- DT Pro Member: -
The matrix itself is fine.
You select one row by setting the corresponding red line to 0V output. The other red lines are disconnected (temporarily set to input) or set to 5V output. Then you read all the column lines at once. The columns which return logical low are the ones in which a switch is pressed (and it is pressed in the selected row).
You do not have external pull-ups on the column lines but it does not matter. You must enable the internal pull-ups in ATmega32u4.
Good luck with your project.
Edit: You do not have any LEDs there. Most people want at least CAPs LED. I have all four of them.
You select one row by setting the corresponding red line to 0V output. The other red lines are disconnected (temporarily set to input) or set to 5V output. Then you read all the column lines at once. The columns which return logical low are the ones in which a switch is pressed (and it is pressed in the selected row).
You do not have external pull-ups on the column lines but it does not matter. You must enable the internal pull-ups in ATmega32u4.
Good luck with your project.
Edit: You do not have any LEDs there. Most people want at least CAPs LED. I have all four of them.
-
- Location: Canada
- Main keyboard: Focus FK-9000, heavily modded
- Main mouse: MX Master 3
This matrix looks good. If I were you, I'd switch to a Pro Micro and make the matrix not look exactly like what the keyboard's layout will be (for example, if you have a 5x14 matrix for a 60%, you can use an 8x8 matrix and that will fit on a Pro Micro without having to use the two onboard LED resistors as pins for your matrix).
-
- Location: republic of ireland
- Main keyboard: ducky zero shine
- Main mouse: zowie fk1+
- Favorite switch: mx blue
duplexed matrixes are really confusing thoughkelvinhall05 wrote: 20 Aug 2020, 19:34 This matrix looks good. If I were you, I'd switch to a Pro Micro and make the matrix not look exactly like what the keyboard's layout will be (for example, if you have a 5x14 matrix for a 60%, you can use an 8x8 matrix and that will fit on a Pro Micro without having to use the two onboard LED resistors as pins for your matrix).
-
- Location: Canada
- Main keyboard: Focus FK-9000, heavily modded
- Main mouse: MX Master 3
Good thing I didn't suggest a duplexed matrixgipetto wrote: 21 Aug 2020, 11:42duplexed matrixes are really confusing thoughkelvinhall05 wrote: 20 Aug 2020, 19:34 This matrix looks good. If I were you, I'd switch to a Pro Micro and make the matrix not look exactly like what the keyboard's layout will be (for example, if you have a 5x14 matrix for a 60%, you can use an 8x8 matrix and that will fit on a Pro Micro without having to use the two onboard LED resistors as pins for your matrix).
