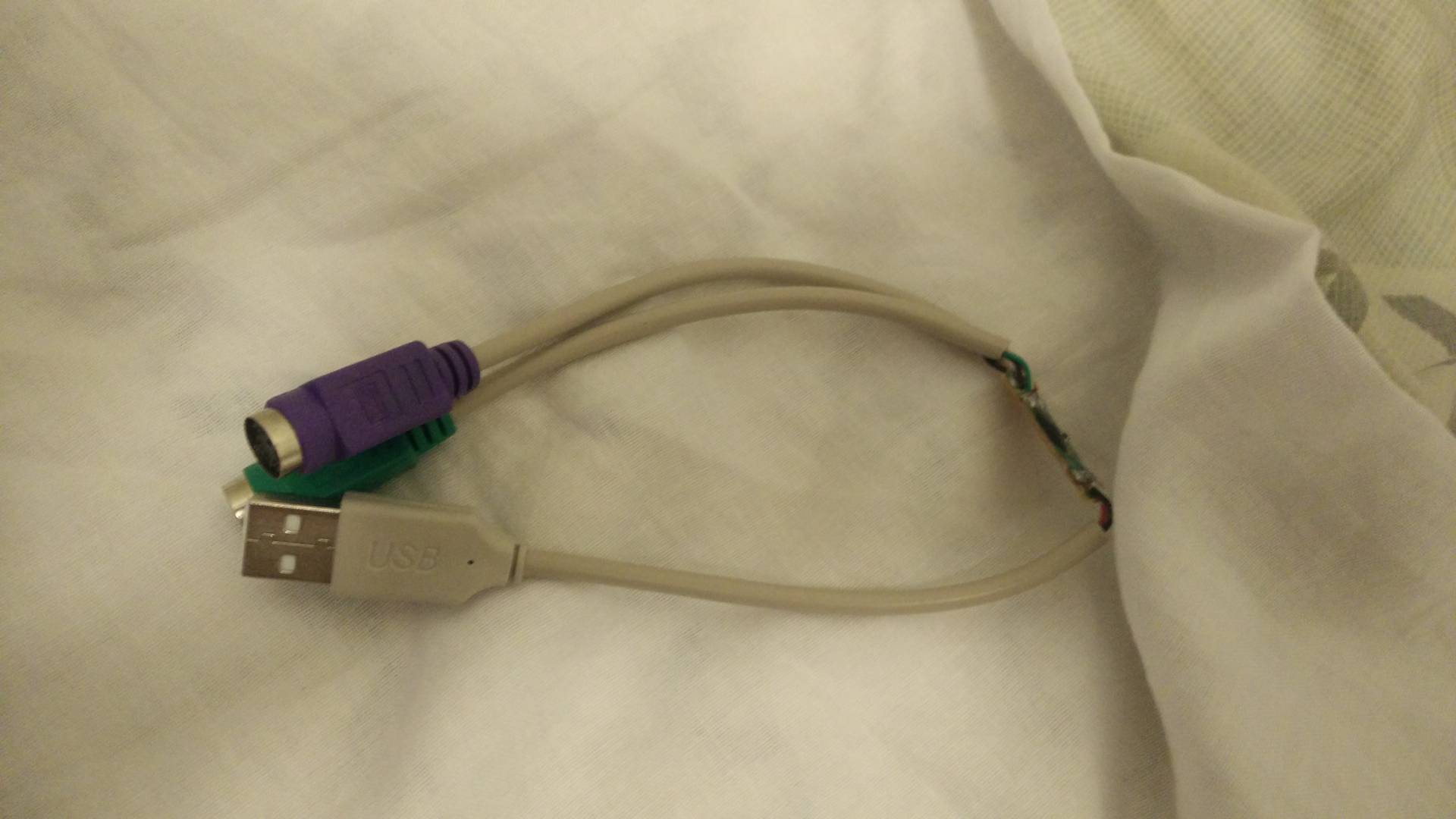

Hi, I have a PS2 - USB adapter (see in the attachment) I have recently brought them to use with my Cherry G80-11800 and it works perfectly. However, I also have IBM Model M, Model M SSK, and Model F AT- but I have heard about a myth that IBM keyboards are power hungry beast and using those with cheap PS-2/USB adapter will eventually destroy its controller while it should only be used with PS/2 port behind the motherboard.
Is this myth true?
Thanks.
should I use IBM keyboards with USB adapter?
-
hook
- Location: Slovenia, EU
- Main keyboard: Matias Mini Quiet Pro
- Main mouse: Roccat Kone Pure
- Favorite switch: dampened Alps, Model F if no-one is around
- DT Pro Member: -
- Contact:
The only thing I noticed is that simple connectors from a single female PS2 to a single male USB don’t seem to work with keyboards (but are OK for mice).
The two female PS2 to a single male USB (as in the picture in the original post) seem to work fine for me though.
Caveat: I haven’t tried it with an IBM yet.
The two female PS2 to a single male USB (as in the picture in the original post) seem to work fine for me though.
Caveat: I haven’t tried it with an IBM yet.
-
andrewjoy
- Location: UK
- Main keyboard: Filco ZERO green alps, Model F 122 Terminal
- Main mouse: Ducky Secret / Roller Mouse Pro 1
- Favorite switch: MX Mount Topre / Model F Buckling
- DT Pro Member: 0167
They will work but i would get something better myself , lindy do one like the one above but its much better build that the cheap ones , and its not even that expensive.
If you want to be flash and know it will always work , get a blue cube.
If you want to be flash and know it will always work , get a blue cube.
-
Cattus_D
- Location: Netherlands
- Main keyboard: IBM Model M
- Main mouse: IBM MO18B
- Favorite switch: Model M buckling spring
- DT Pro Member: -
I have one of those, from Logilink. I've used it with my Model M for a month or so, and it works fine.
I do also have a blue cube, but the 'split cable' adapters allow me to also attach my PS/2 mouse.
I do also have a blue cube, but the 'split cable' adapters allow me to also attach my PS/2 mouse.
-
Tangtawan
- Location: Bangkok, Thailand
- Main keyboard: 1984 IBM Model F AT
- Main mouse: Logitech G700
- Favorite switch: Buckling Spring
- DT Pro Member: -
Okay, after using it for few days.. this USB - PS2 adapter started to not working well.
Sometimes on reboot, I have to unplug and plug in the USB again or else the keyboard wont work.
Also, in gaming session I cant hold the keys.. for eg. keep holding W for few seconds and it will stop registering so I need to re-press it again to get it to work. This problem doesnt occur when using PS2 directly.

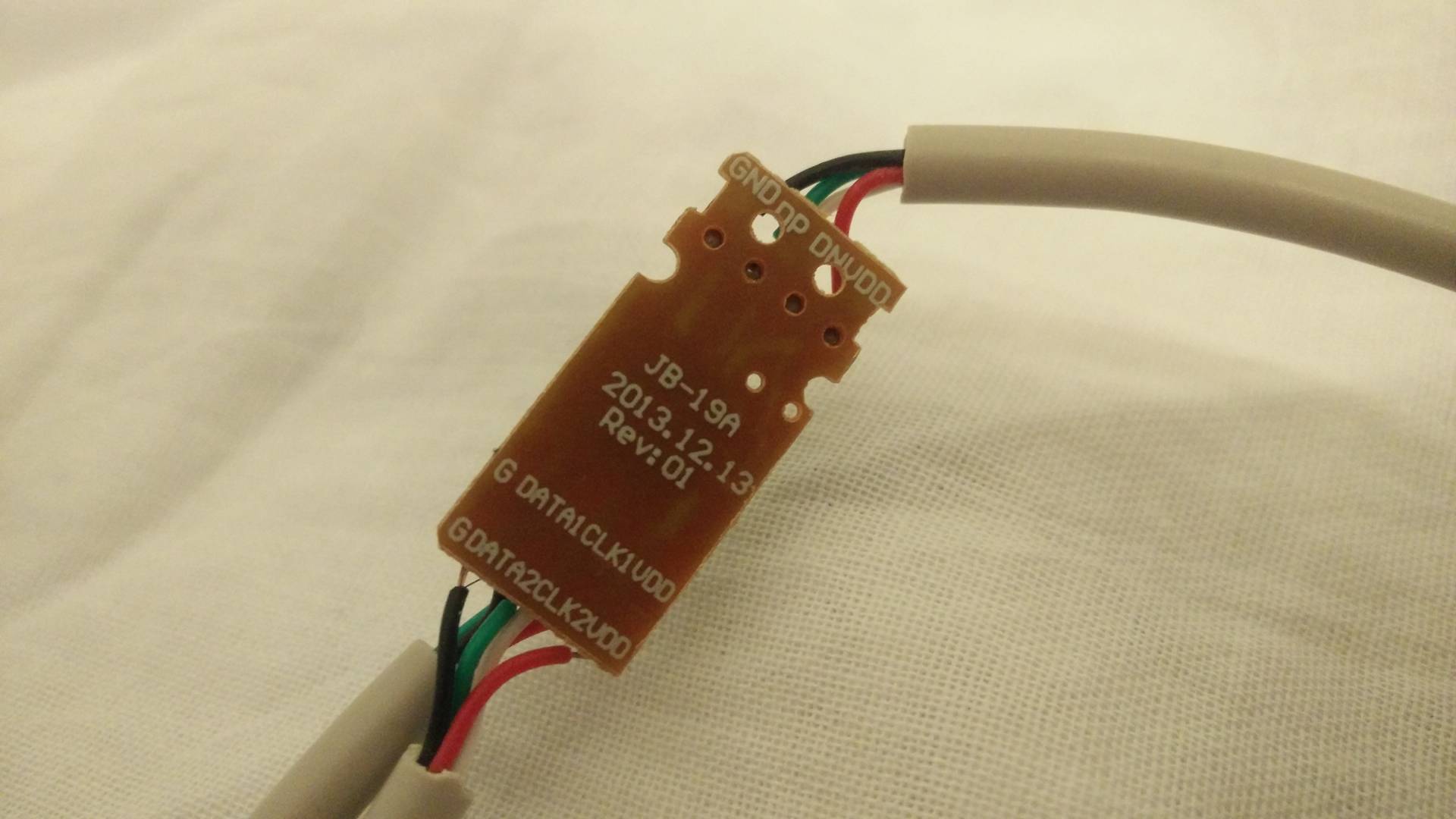

Can anyone check if my adapter is Passive or Active?
Sometimes on reboot, I have to unplug and plug in the USB again or else the keyboard wont work.
Also, in gaming session I cant hold the keys.. for eg. keep holding W for few seconds and it will stop registering so I need to re-press it again to get it to work. This problem doesnt occur when using PS2 directly.
Can anyone check if my adapter is Passive or Active?
- Attachments
-
- 15224700_1730683120586469_1532297418_o.jpg (110.64 KiB) Viewed 2646 times
-
- 15224687_1730683137253134_13316229_o.jpg (137.93 KiB) Viewed 2646 times
-
- 15182600_1730683127253135_477137119_o.jpg (114.53 KiB) Viewed 2646 times
-
micrex22
- Location: Canada
- Main keyboard: UltraNav
- Favorite switch: BS
- DT Pro Member: -
Model Ms especially early ones are fairly notorious for misbehaving with most PS/2 to USB adapters. If you want one that works without any problems, get a blue cube.

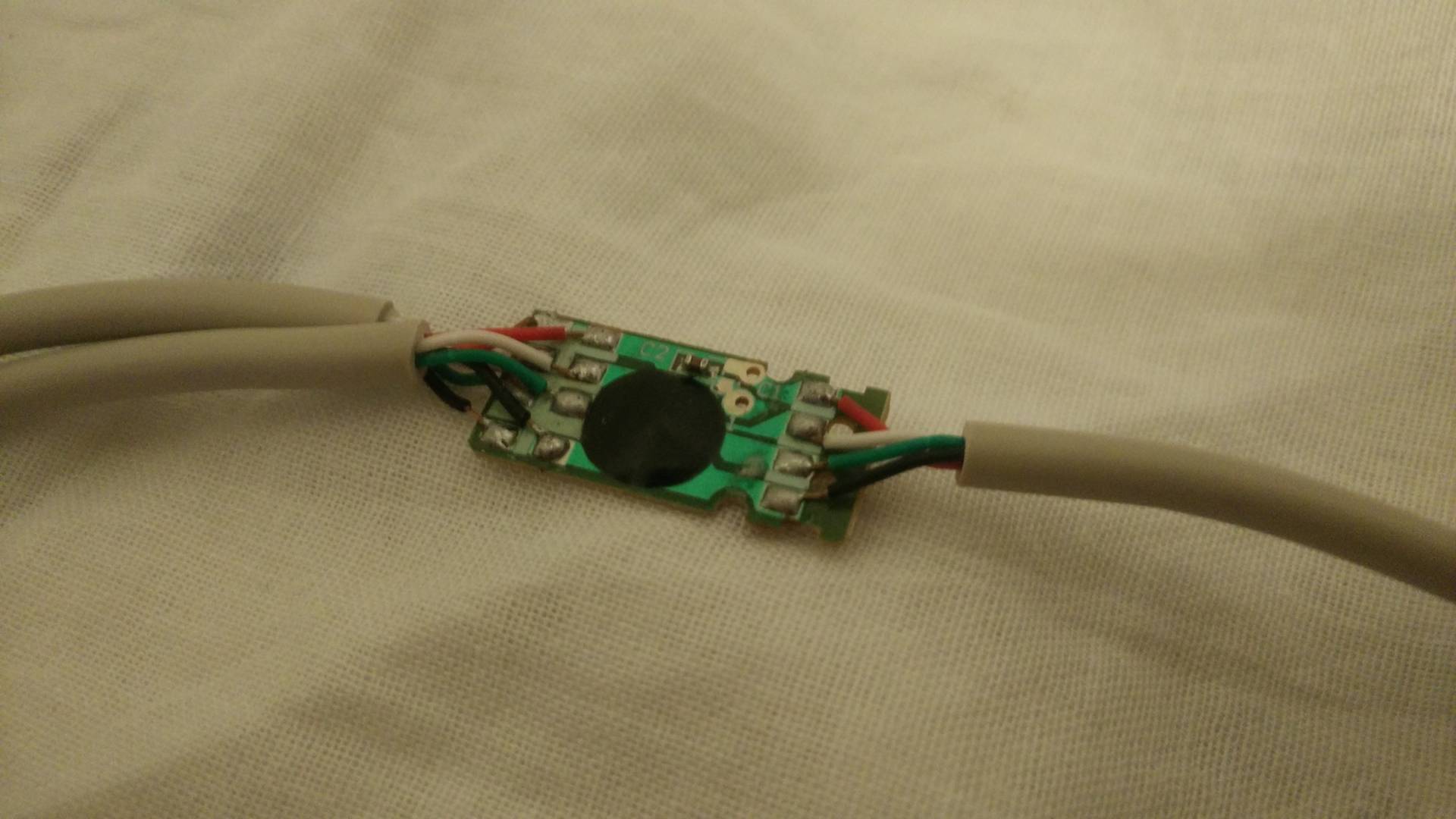

Your adapter has a "glop top" so it's not possible to see the IC. Presumably active if there is in fact logic underneath that.
Your adapter has a "glop top" so it's not possible to see the IC. Presumably active if there is in fact logic underneath that.
-
andrewjoy
- Location: UK
- Main keyboard: Filco ZERO green alps, Model F 122 Terminal
- Main mouse: Ducky Secret / Roller Mouse Pro 1
- Favorite switch: MX Mount Topre / Model F Buckling
- DT Pro Member: 0167
Its active but its a cheap as chips one with a crappy COB chip, i mean look at that crappy soldering !
Get the lindy one
https://www.lindy.co.uk/cables-adapters ... cable-p438
I have used it for over a year with a SSK and a RS232 to PS2 converted CST ( both very high powered old devices) and it never skipped a beat , even on a mac that are know to have a shit USB implementation.
Get the lindy one
https://www.lindy.co.uk/cables-adapters ... cable-p438
I have used it for over a year with a SSK and a RS232 to PS2 converted CST ( both very high powered old devices) and it never skipped a beat , even on a mac that are know to have a shit USB implementation.
