Someone asked for an example of my 'thumb-cording' for the Function Key layer:

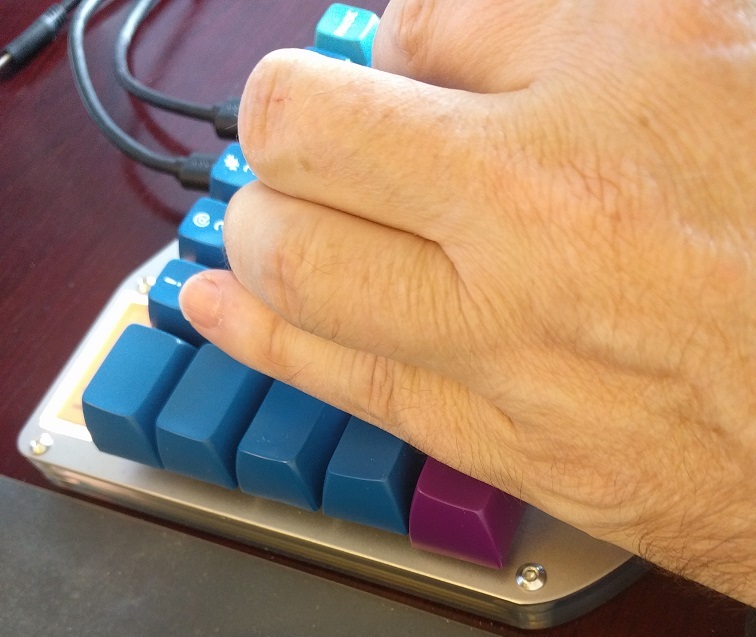

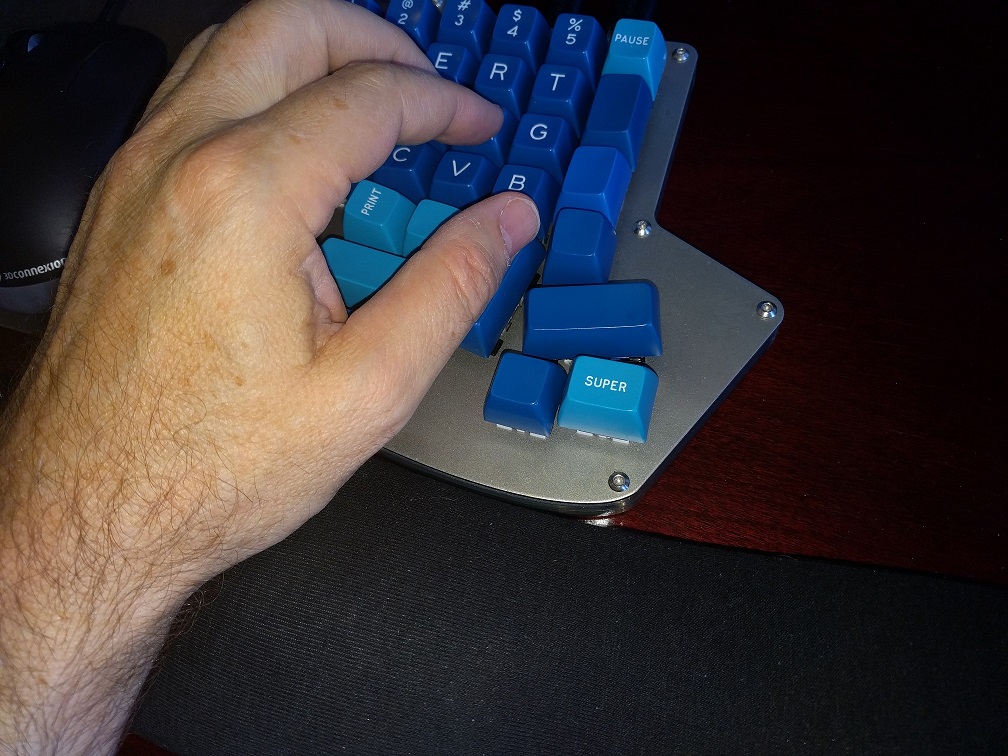

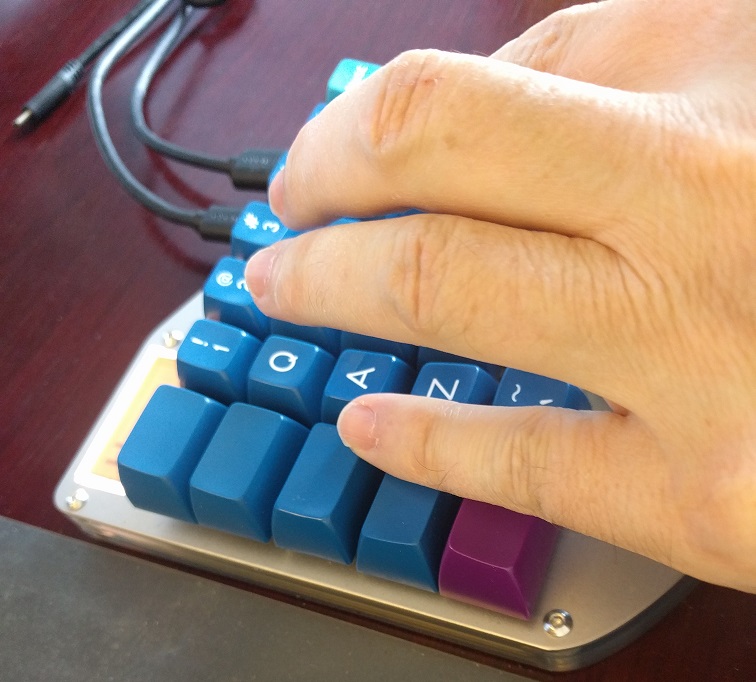

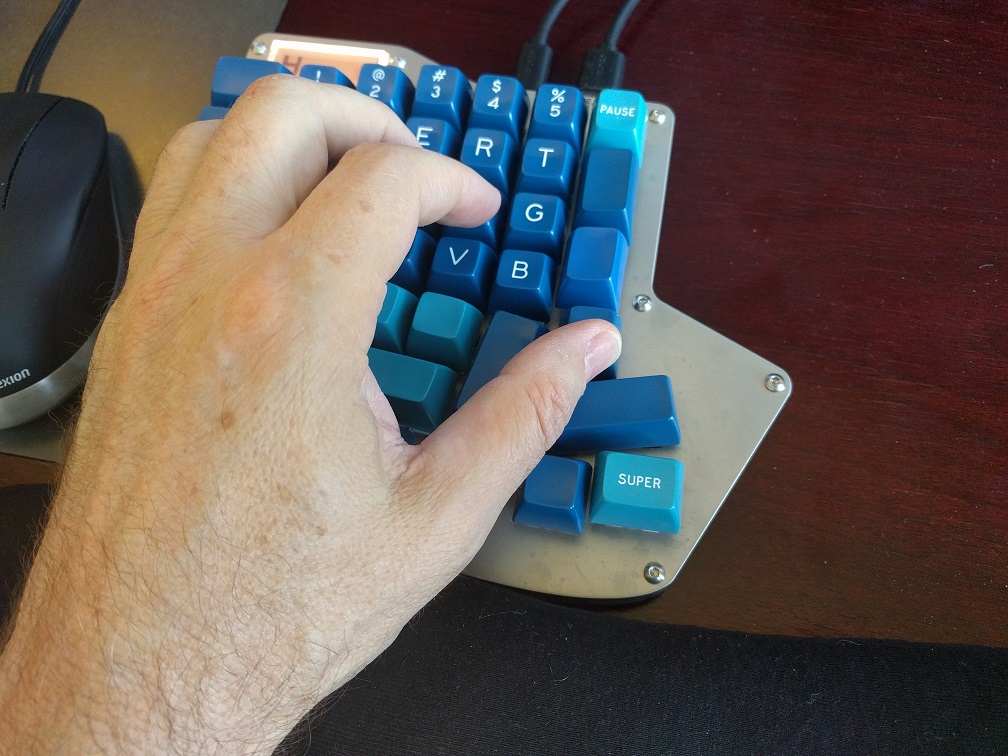

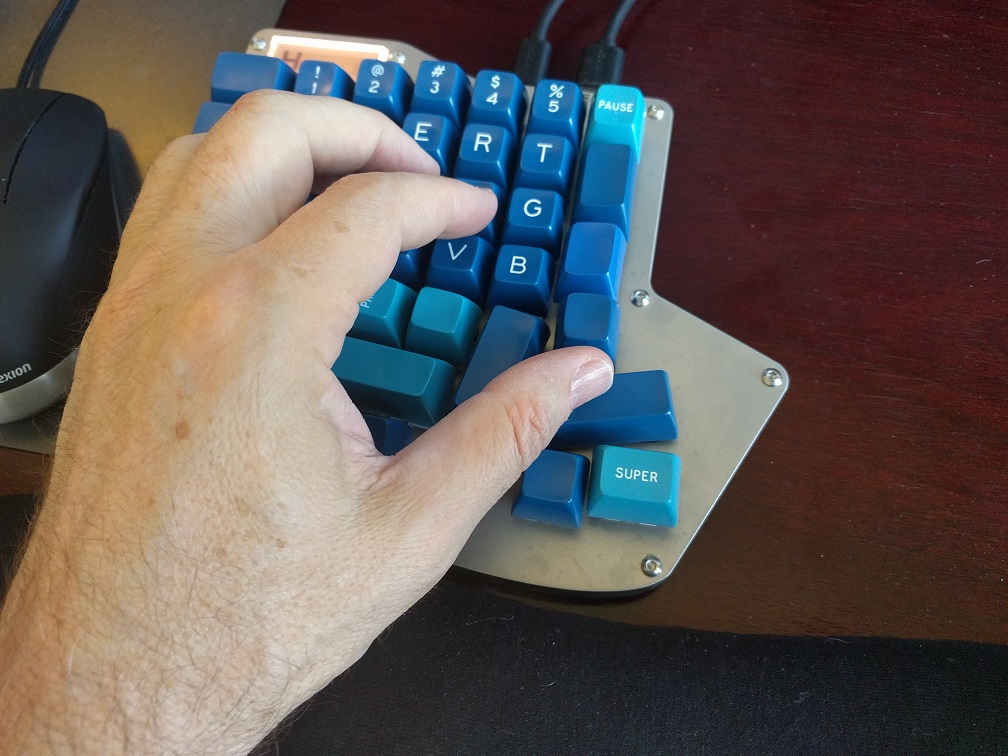

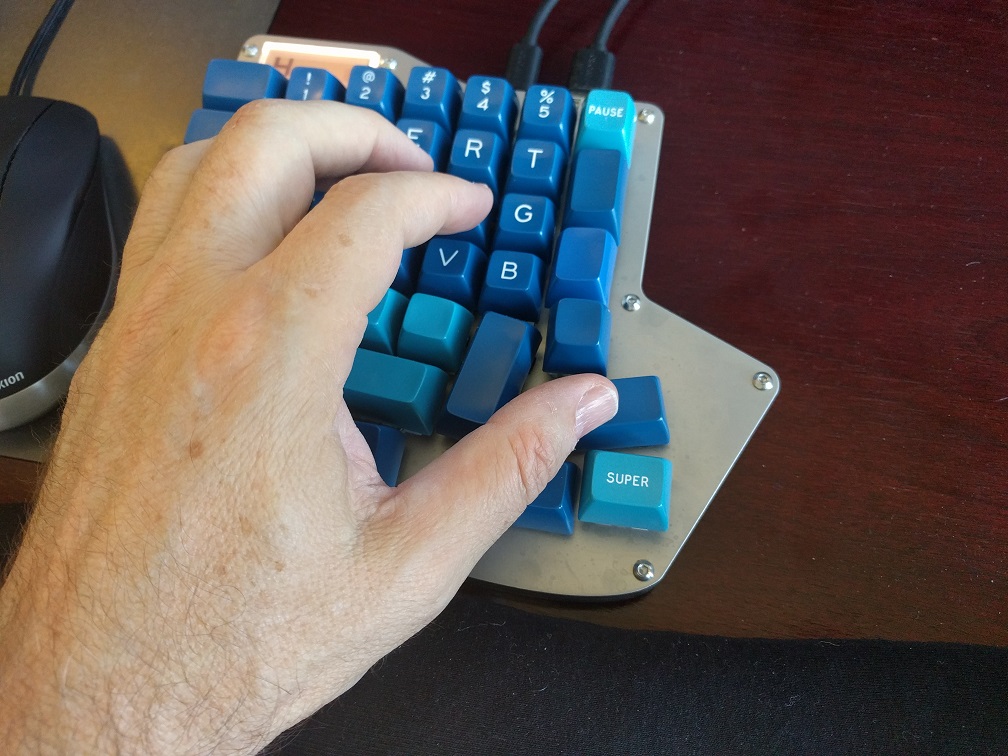

Hand at rest - Alt Alt+F-Layer F-Layer (thumb) Ctrl+F-Layer F-Layer (palm) Shift+F-Layer (pinky)

This is my fourth revision of the key layout of Input.Club's Infinity-ErgorDox. I have a custom switch plate cut, which moves 11 switches (per hand) off of the PCB's slots. I then wire wrap lead wires from the moved switches and thread them back to the PCB. Since I only needed ...

(sorry for the outage)
The custom plate was easy. I use lasergist.com and found them cheaper, quicker, and easier to work with than the metal fabrication shops in my metropolitan area.

I get my prototype 3 and 4 case custom cut through ponoko.com. The quality is good, quickness is good, but I wish ...

If you will excuse my unprofessional videography, and my stutter typing, and the long pauses while I review the source code that I am preparing my commit comments for,...
[youtube] https://youtu.be/Fxx7cflz1lM [/youtube]

Here is an example of editing code, with the same caveats above. There is a ...

Before I post a video, first let me show you my keymappings. This should help you better understand how I am using certain keys.


Here is the JSON file that bootstraps the layout and configuration using the web based https ...

Here are the key mappings, and underlying JSON file, for this build:

Here is a link to the JSON file that can be used to bootstrap the keymappings and layout with the on-line configuration tool at input.club
https://github.com ...

See ThumbHack 3.1 for background keyboards-f2/thumb-hacks-t14933.html.

Impressive. Makes me want a milling machine.

I a curious about the weight and your keymappings.

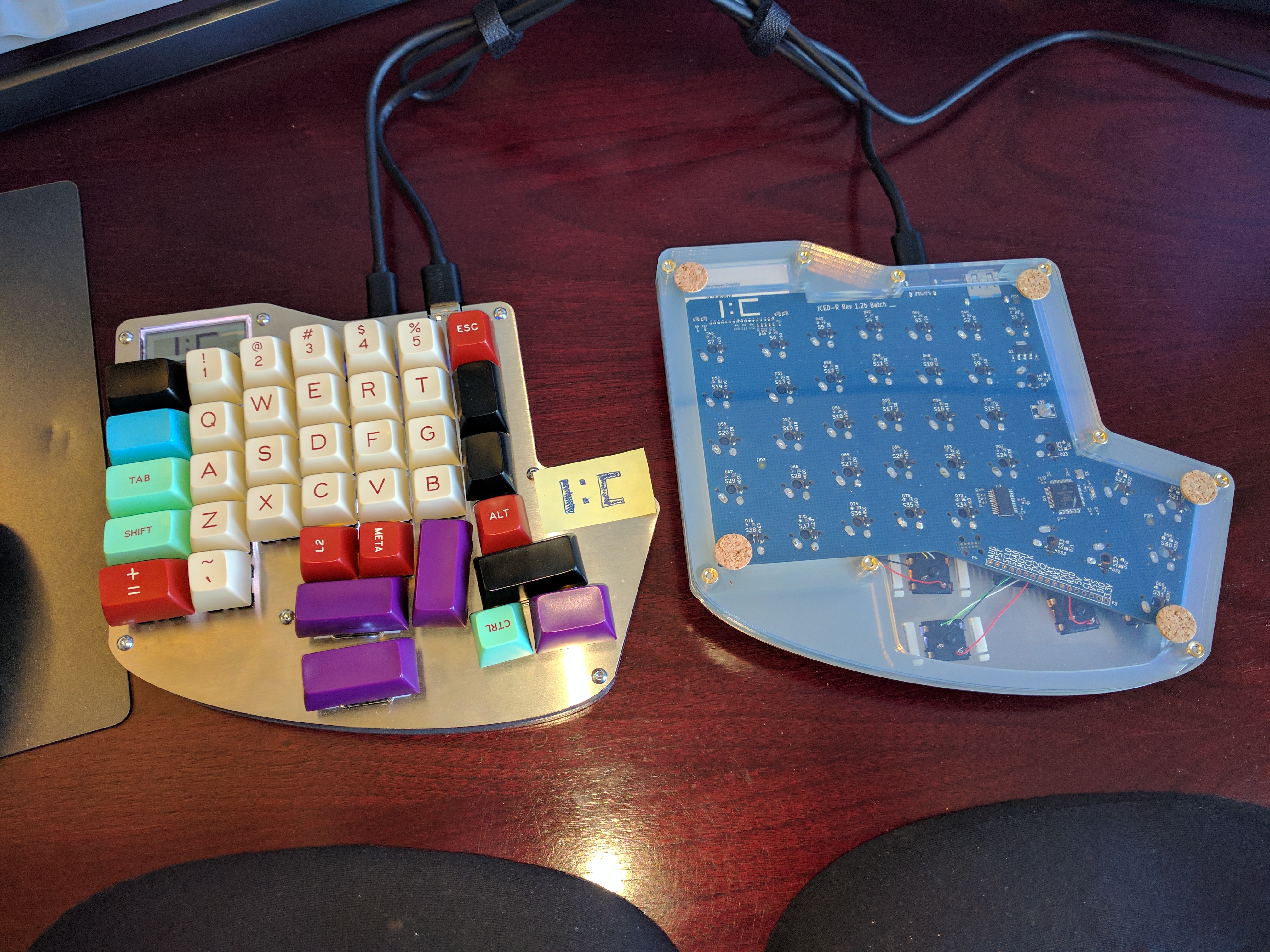

Custom switchplate, Infinity-Ergodox PCB, with the moved switches 'hand-wired?' and threaded back to the PCB.

(these are from the first build)
https://sites.google.com/site/ergohack2/_/rsrc/1465796980609/project-updates/lefthalfcompleted/IMG_20160604_185544%5B1%5D.jpg

https://sites.google.com ...

Here is the first iteration:

This is my second iteration at modifying an Infinity-Ergodox kit to provide me a thumb cluster, better to my comfort and liking. There are 8 buttons for each thumb cluster.


The vertical 2U button (SA Row 3) under the 'B' and 'N' keys is my thumb neutral position.
The three to the inside are hit ...
